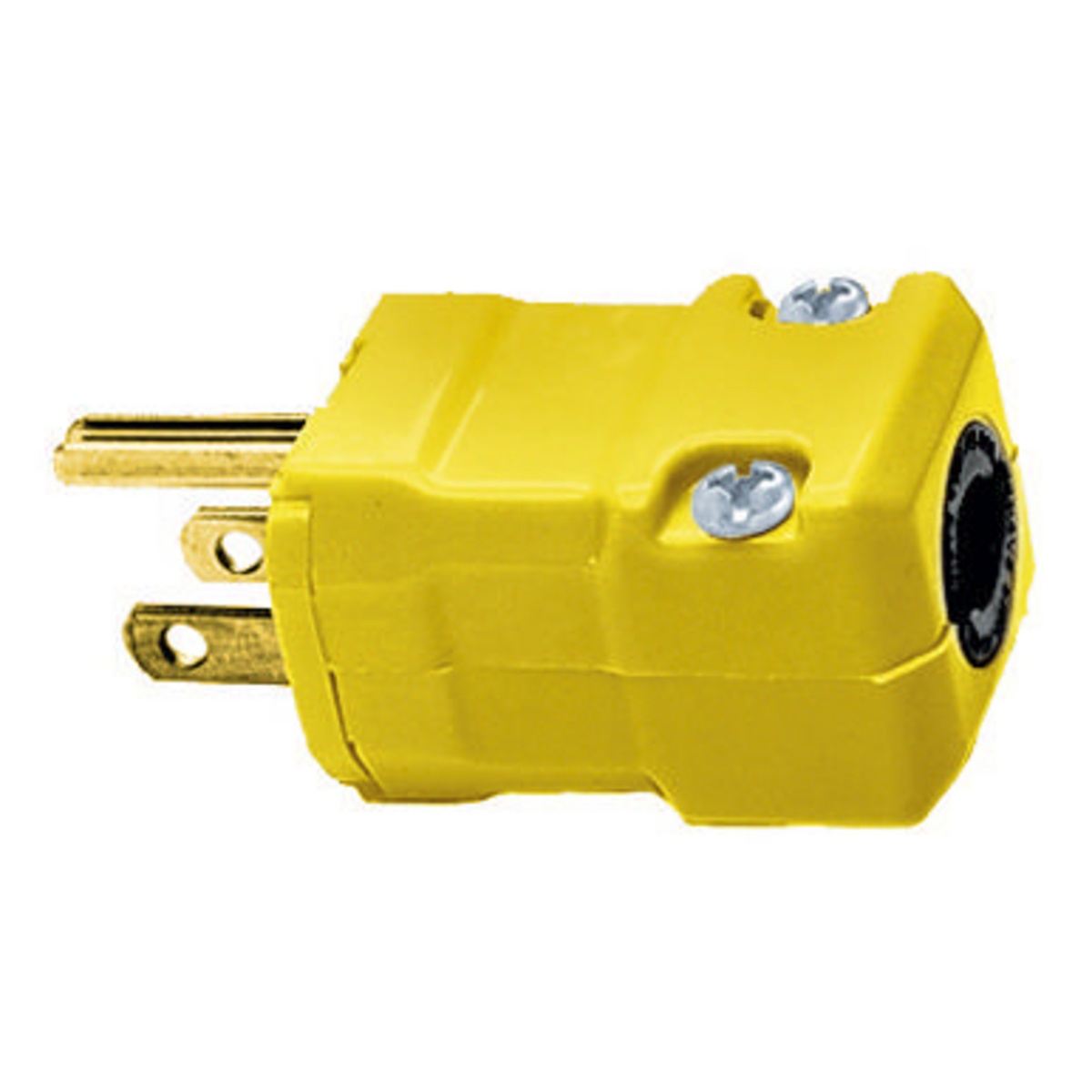

Hubbell HBL5965VY Straight Blade Plug
Hubbell HBL5965VY Straight Blade Plug
Part #:HBL5965VY
SKU #: 18672
Key Features
Part #:HBL5965VY
SKU #: 18672
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.22 to 0.66, 0.22 to 0.66 in
Dimensions: 1.88 in L x 1.5 in W x 1.13 in H, 1.88 x 1.88 x 2.55 in
Enclosure: IP20
Horsepower: 2, 2 hp
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 12 AWG stranded copper conductor terminal accommodation
- UL 94-V2 flammability rating
- 0.06 and 0.04 in brass contact blades
- Steel (copper or nickel finish) terminal screw, steel (green finish) ground screw
- Hinged one piece body design for easy assembly
- Powerful, off setting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall OUT while wiring
- Nylon housing, noryl (polyphenylene oxide) cord clamp material
Hubbell HBL5965VY Straight Blade Plug
Wiring Device-Kellems Valise Straight Blade Plug, 1-Phase Grounding Portable Standard Cord Mount, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Yellow, 1.88 x 1.88 x 2.55 in
Additional Description: HUBW-HBL5965VY VALISE PLUG, 15A 125V, 5-15P, YL 5-15P
Catalog Description: Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.
