Hubbell HBL5966VBLK Straight Blade Plug
Image Disclaimers Message

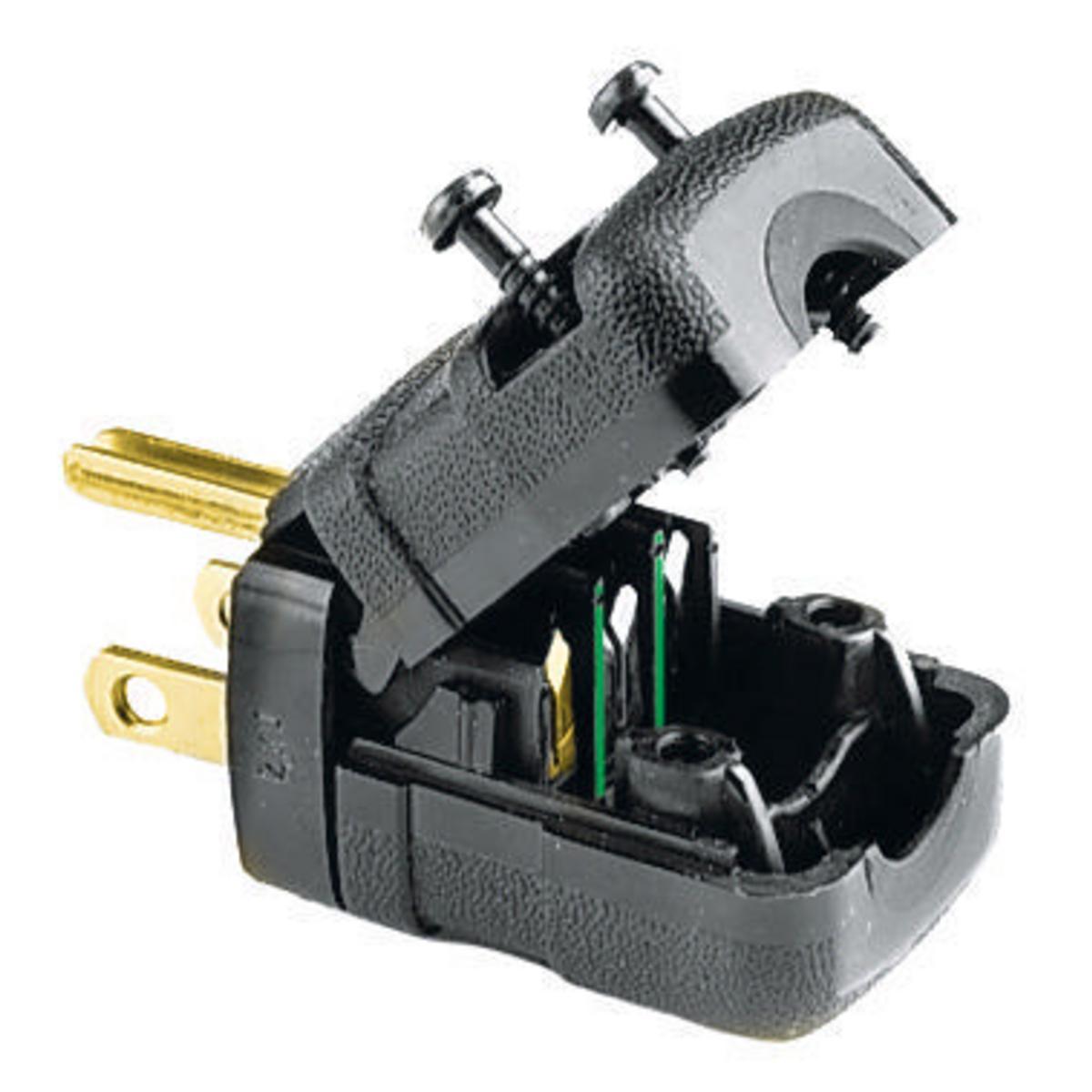

Hubbell HBL5966VBLK Straight Blade Plug
Hubbell HBL5966VBLK Straight Blade Plug
Part #:HBL5966VBLK
SKU #: 2286308
Key Features
Part #:HBL5966VBLK
SKU #: 2286308
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.23 to 0.36, 0.23 to 0.36 in
Dimensions: 1.24 in Dia x 1.6 in L
Enclosure: IP20
Horsepower: 2, 2 hp
- Corrosion-resistant
- Grounding plug
- Cord mounted
- 18 to 16 AWG solid or stranded copper conductor terminal accommodation
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Nylon cord clamp, brass contact blade and ground contact blade
- Removable cord inserts
- Powerful cord grips prevent conductor slippage and strain on wiring terminals
- Eight specially designed load bearing locking lugs insure a positive fit as the blade holder and sides are closed
- Unique, patented clamp type terminals provide superior electrical connection by bundling conductor strands when clamps are tightened
- Nylon webs are provided to make wiring quick and easy by joining the three sections together during assembly
- Totally insulated impact and crush resistant nylon body
- Two captive multiple drive assembly screws
Hubbell HBL5966VBLK Straight Blade Plug
Wiring Device-Kellems Valise Straight Blade Plug, 1-Phase Grounding Portable Straight Style Standard Cord Mount, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.36 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black, 1.24 in Dia x 1.6 in L
Additional Description: HUBW-HBL5966VBLK VALISE PLUG, 15A 125V, 5-15P, INSUL-D,BK
Catalog Description: Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black, Single Pack.
