Part Number # HBL5969VY
SKU # 18673
Image Disclaimers Message
HBL5969VY

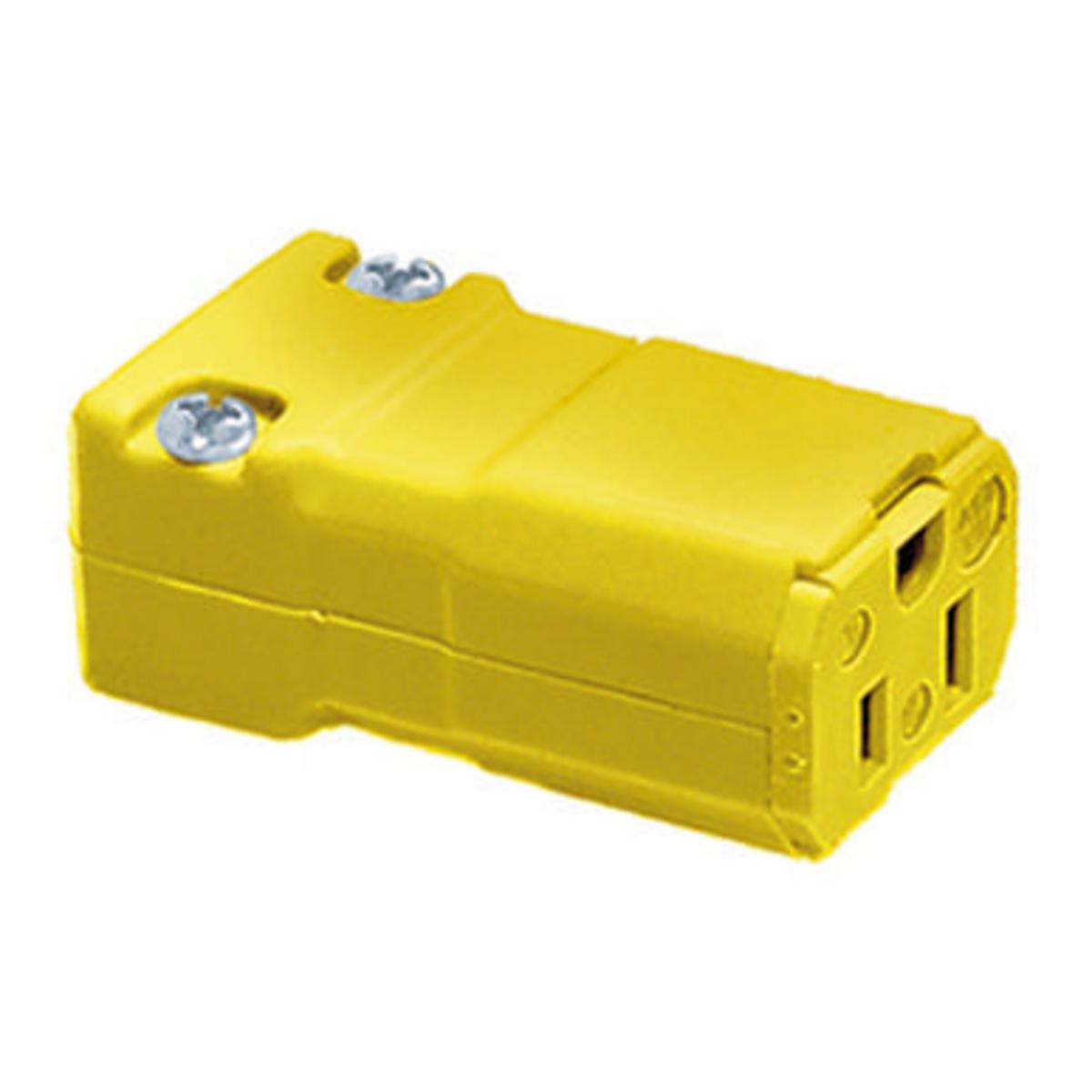

Hubbell HBL5969VY Straight Blade Connector
Part Number # HBL5969VY
SKU # 18673
$26.64 / Each
Typical price:$34.45 / Each
Hubbell HBL5969VY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5969VY |
| SKU #: | 18673 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.22 to 0.66, 0.22 to 0.66 in |
| Dimensions: | 2-5/8 in L x 1-1/4 in W x 1-1/8 in H, 2.68 x 1.32 x 2.68 in |
| Enclosure: | IP20 |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw, Threaded |
| Type: | Female Grounding Insulated, Female Grounding Insulated Cord Mount |
| Color: | Yellow |
| Country of origin: | CN |
| Material: | Composite, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121421 |
| UPC: | 00783585013107 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.64 / Each
Typical price:$34.45 / Each
Quantity:
- Hubbell Wiring Device-Kellems Valise Straight Blade Connector, Female Grounding Insulated Cord Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Yellow, 2.68 x 1.32 x 2.68 in
HBL5969VY Item Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
HBL5969VY Standards
UL 498, File No. E1706 Listed|UL 94-HB Flammability Rating|CSA C22.2 No. 42, 280|NEMA WD1/WD5|RoHS CompliantSKU #18673Part Number #HBL5969VYUNSPSC39121421UPC00783585013107
