Brand: Hubbell

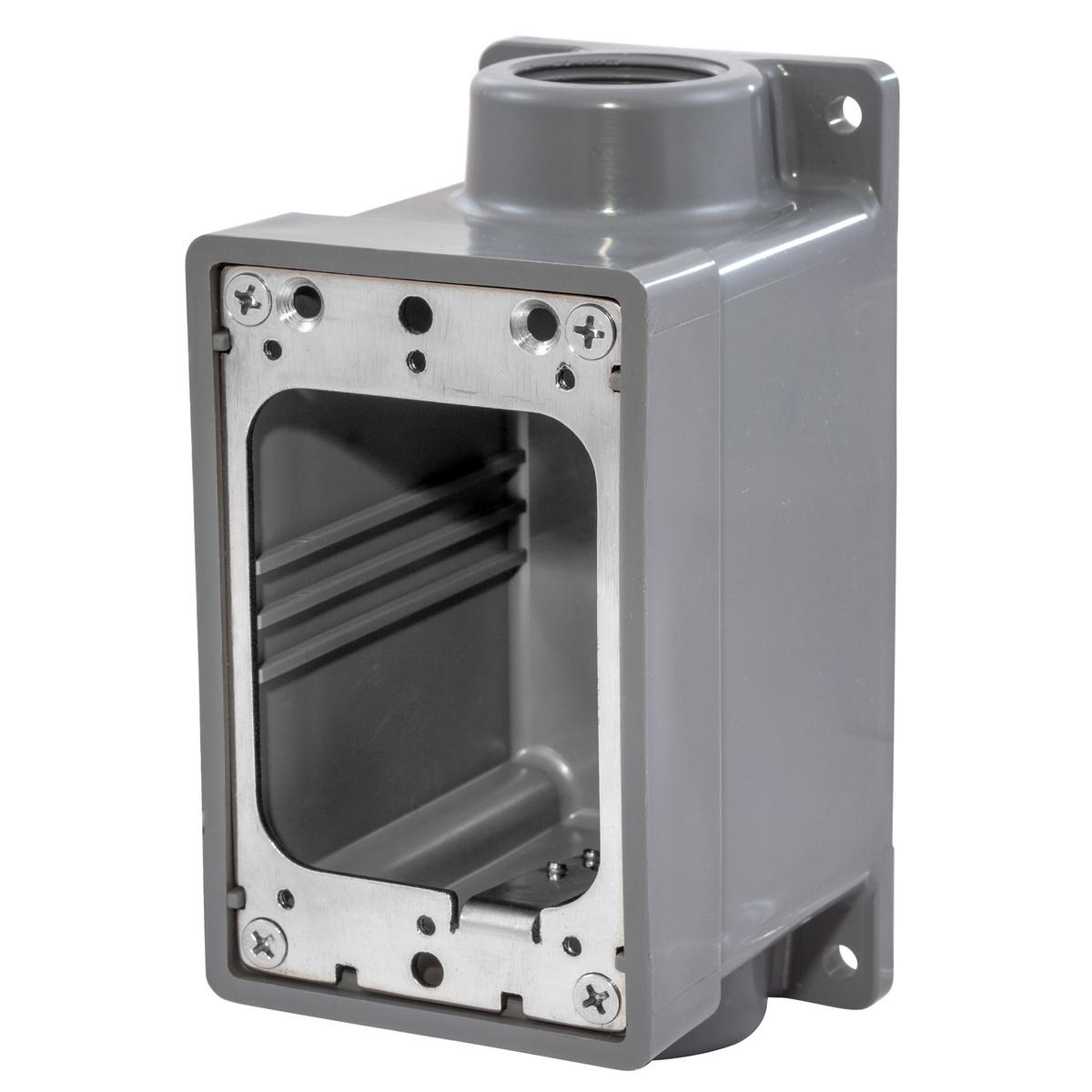

Hubbell HBL6084 FD Box
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL6084 FD Box
Brand: Hubbell
Hubbell HBL6084 FD Box
Part #:HBL6084
SKU #: 2346256
$39.29/EA
Key Features
Part #:HBL6084
SKU #: 2346256
Brand: Hubbell
Cable Entry Size: Hub
Capacity: 22, 22 cu-in
Enclosure Type: NEMA 4X/IP65/IP66
Hub Size: 1 in
Hub Style: NPT
$39.29/EA
- 30 cu-in FD box made of impact resistant PBT
- Accepts duplex and single receptacles up to 50 A
- External mounting feet, accepts #10 screw
- Stainless steel mounting grounding bracket
- https://youtu.be/QcUET-wLlDs
Specifications
Brand: Hubbell
Cable Entry Size: Hub
Capacity: 22, 22 cu-in
Enclosure Type: NEMA 4X/IP65/IP66
Hub Size: 1 in
Hub Style: NPT
Knockout Size: 1, 1 in NPT
Mounting Orientation: Threaded
Number of Gangs: 1
Number of Knockouts: 2
Number of Outlets: 1
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Type: Non-Metallic Standard Watertight, Non-Metallic Standard Watertight Molded
Color: Gray
Country of origin: PR, US
Material: Thermoplastic
Mounting type: Threaded
Manufacturer Name: Hubbell
UNSPSC: 39121332
UPC: 00783585528823
Hubbell HBL6084 FD Box
Wiring Device-Kellems FD Box, Non-Metallic Standard Watertight Molded, 1 Outlets, 1 in NPT Knockout, -40 to 75 deg C, Threaded Mounting, Threaded Mounting, 22 cu-in Capacity, Gray
Additional Description: HUBW-HBL6084 WATERTIGHT FD BOX, 1, GRAY""
Catalog Description: Watertight Series, FD Box, 1" NPT, Gray
Item FeaturesIndustrial and Commercial Applications
Item Features
Item FeaturesCSA C22.2 No. 42|NEMA WD1/WD6|ANSI Specified|UL 514C/50E|ANSI Certified
