Part Number # HBL60W33D
SKU # 2310969
Image Disclaimers Message
HBL60W33D

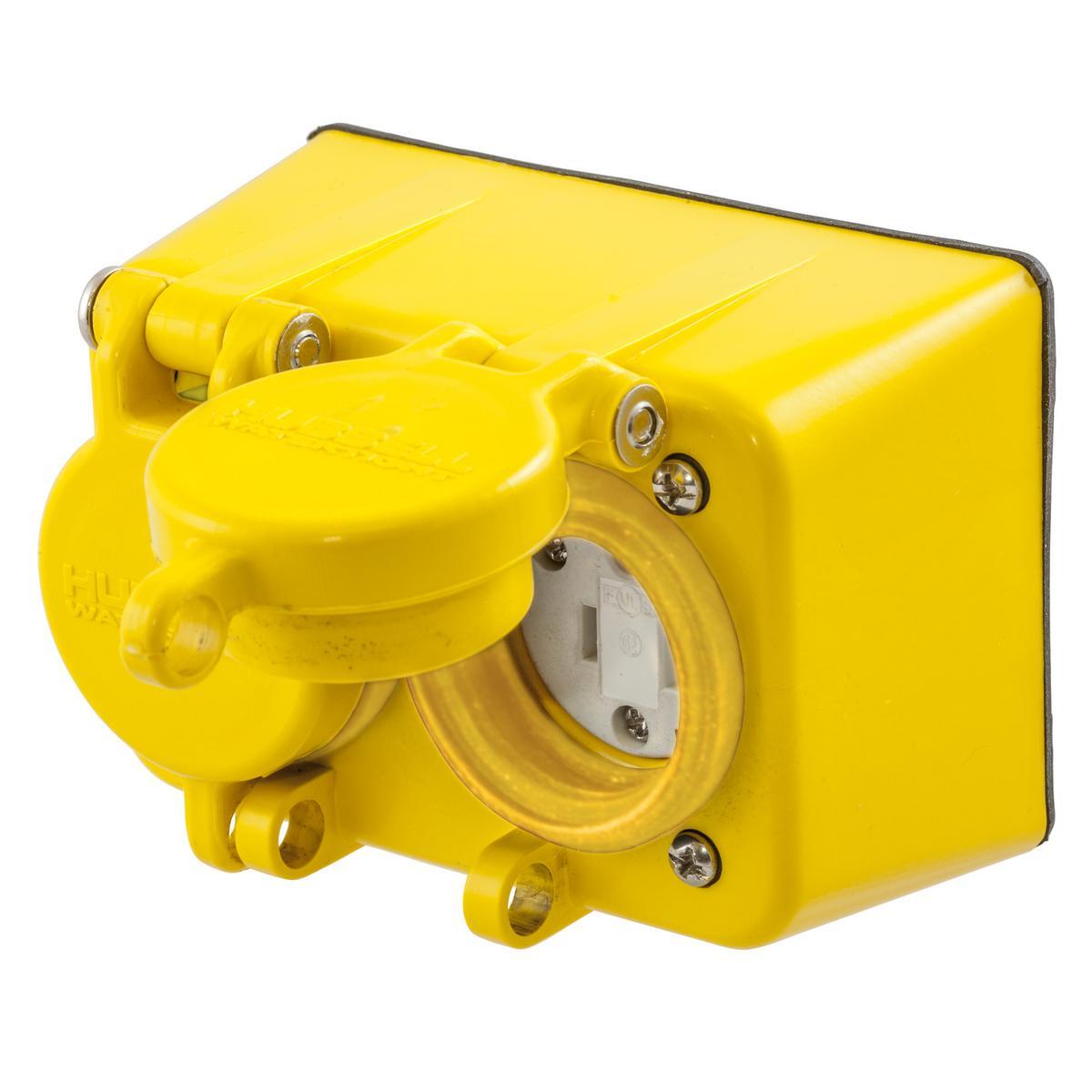

Hubbell HBL60W33D Straight Blade Receptacle
Part Number # HBL60W33D
SKU # 2310969
$155.71 / Each
Typical price:$202.00 / Each
Hubbell HBL60W33D Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL60W33D |
| SKU #: | 2310969 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.1 in H x 4.56 in W x 2.71 in D |
| Enclosure: | NEMA 4/4X/12/6/6P, NEMA 4/4X/6/6P/12 |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | 5-20R, NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Duplex Grounding Standard Watertight Screw Mount, Duplex Grounding Standard Watertight |
| Color: | Yellow |
| Country of origin: | CN, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585528724 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$155.71 / Each
Typical price:$202.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL60W33D, Straight Blade Receptacle, 1-Phase Duplex Grounding Standard Watertight Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6/6P/12 Enclosure, -40 to 60 deg C, Screw Terminal, Composite, Yellow, 3.1 in H x 4.56 in W x 2.71 in D Dimensions
HBL60W33D Item Features
- Impact resistant PBT lid, cover plate, and receptacle body
- Thermoplastic elastomer seal
- Stainless steel hardware and corrosion-resistant connection points
- https://youtu.be/KP86bTO15Vs
HBL60W33D Standards
RoHS Compliant|ANSI Specified|CSA C22.2 No. 42|NEMA WD1/WD6|UL 498|NSF CertifiedSKU #2310969Part Number #HBL60W33DUNSPSC39121406UPC00783585528724
