Brand: Hubbell

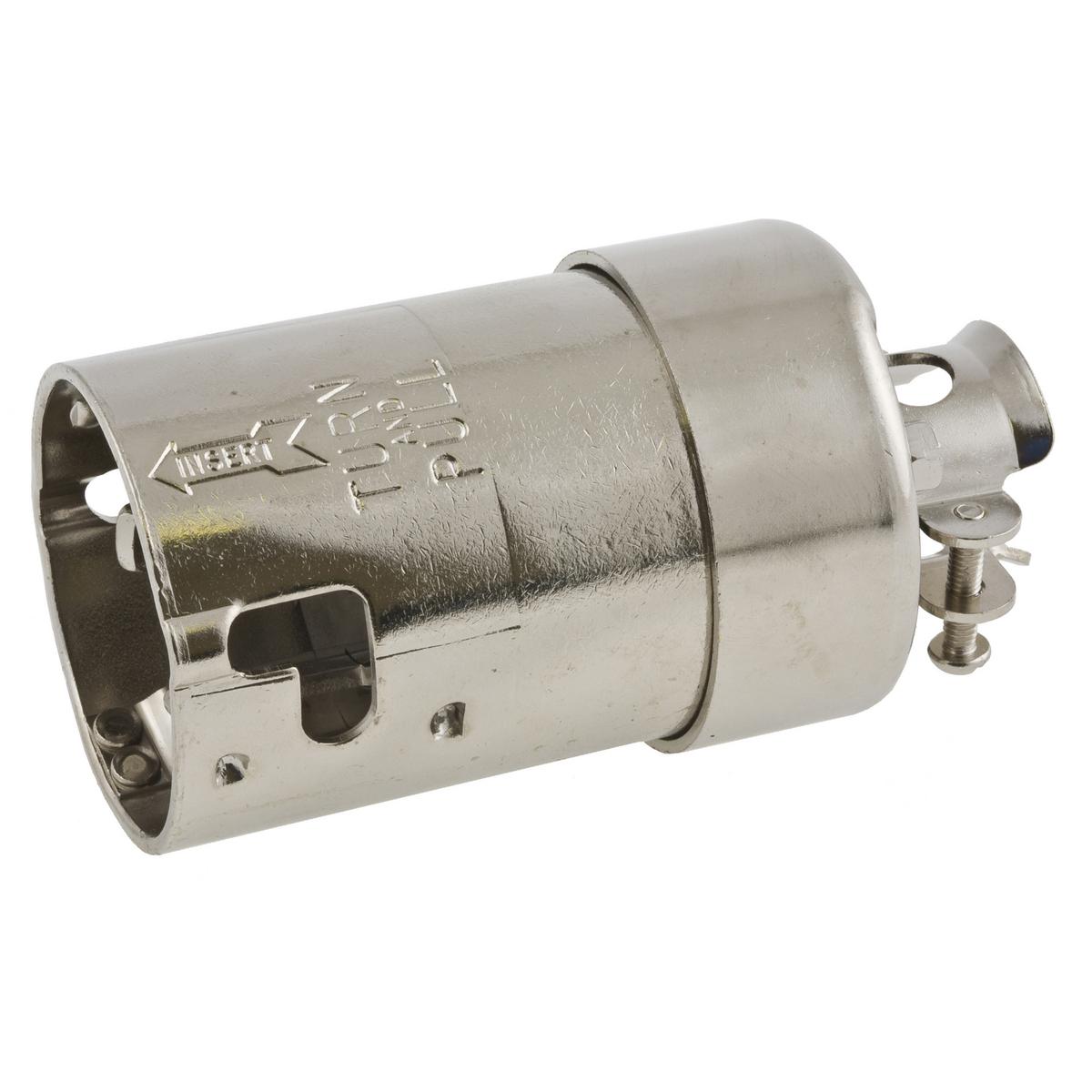

Hubbell HBL63CM65 Locking Plug
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL63CM65 Locking Plug
Brand: Hubbell
Hubbell HBL63CM65 Locking Plug
Part #:HBL63CM65
SKU #: 213940
$151.43/EA
Key Features
Part #:HBL63CM65
SKU #: 213940
Brand: Hubbell
Amperage Rating: 50, 50 A
Cord Diameter: 0.437 to 1.14, 0.437 to 1.14 in
Dimensions: 2.31 in Dia x 4.49 in L
Enclosure: IP20
Number of Poles: 3
$151.43/EA
- 6 AWG wire
- Nickel plated brass plug has a heat resistant thermoset interior and combination metal and rubber cord grip, which provides superior strain relief capability
- Indoor dry unless protected by additional means
- Non-NEMA rating
- Copper crimp barrels for reliable terminations
- Nickel plated brass contacts for corrossion resistance
- https://youtu.be/6vsZAR79ASo
Specifications
Brand: Hubbell
Amperage Rating: 50, 50 A
Cord Diameter: 0.437 to 1.14, 0.437 to 1.14 in
Dimensions: 2.31 in Dia x 4.49 in L
Enclosure: IP20
Number of Poles: 3
Number of Wires: 4
Series: HBL
Terminal Type: Pressure Screw
Type: 1-Phase Grounding Cord Mount, Grounding
Voltage Rating: 125/250, 125/250 VAC
Color: Metallic
Country of origin: PR, US
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121403
UPC: 00783585808734
Hubbell HBL63CM65 Locking Plug
Wiring Device-Kellems Twist-Lock Locking Plug, 1-Phase Grounding Cord Mount, 125/250 VAC, 50 A, 3 Pole, 4 Wires, IP20 Enclosure, 0.437 to 1.14 in Diameter Cord, Pressure Screw Terminal, Composite, Metallic
Additional Description: HUBW-HBL63CM65 LKG MARINE PLUG, 3P4W, 50A 125/250V,YL
Catalog Description: Locking Devices, Twist-Lock®, Marine Grade, Male Plug, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Galvanized
Item FeaturesMarine Applications
Item Features
Item FeaturesUL 498|UL94 Flammability Rating|CSA 22.2 No. 0.6|CSA Certified
