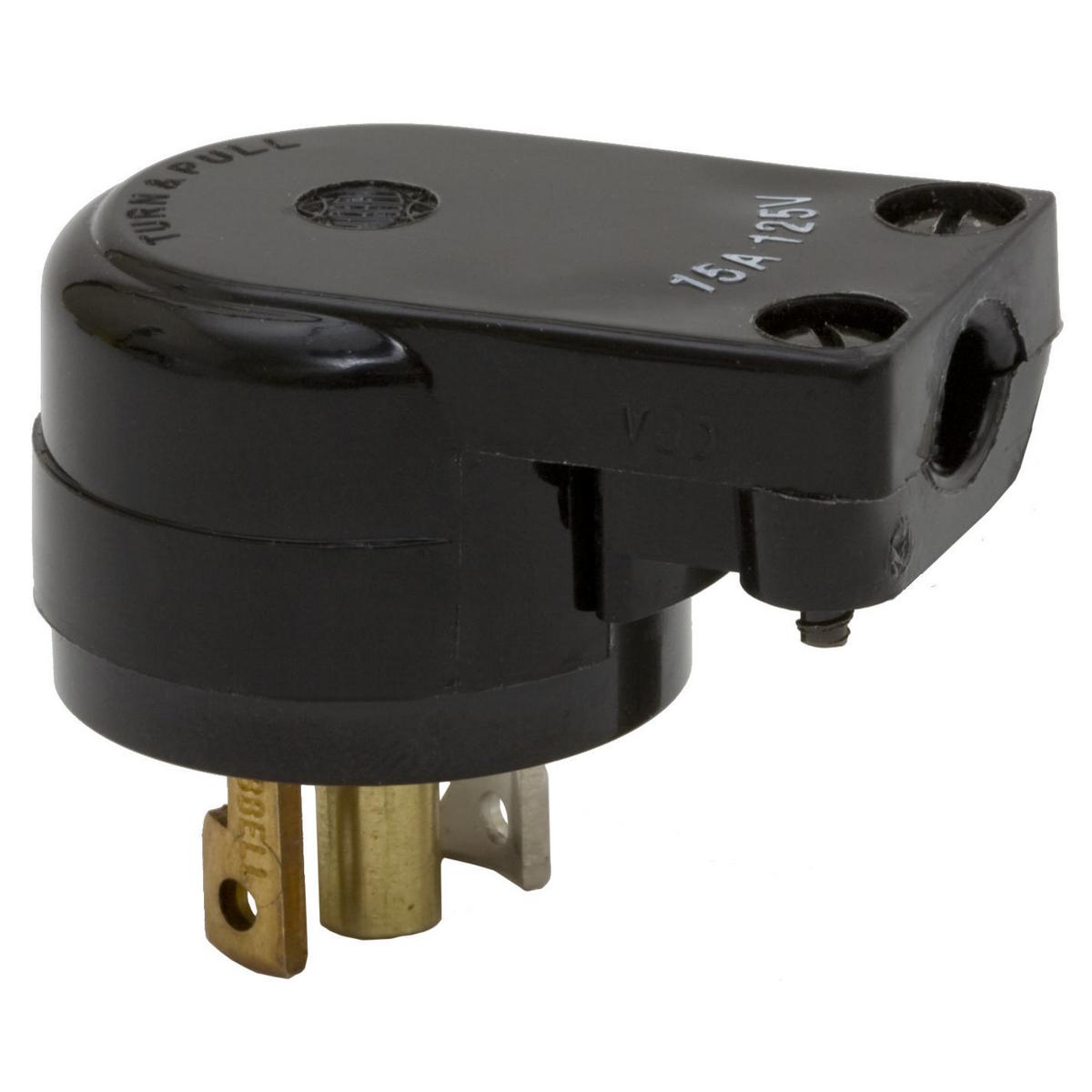

Hubbell HBL7570 Locking Plug
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/wiring_device-kellems_hbl7570.jpg)
Image Disclaimers Message
Hubbell HBL7570 Locking Plug
Hubbell HBL7570 Locking Plug
Part #:HBL7570
SKU #: 2161130
Key Features
Part #:HBL7570
SKU #: 2161130
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.335 to 0.421, 0.335 to 0.421 in
Dimensions: 1.59 in L x 0.86 in W x 0.86 in H, 1.68 x 1.17 x 1.33, 1.68 x 1.17 x 1.33 in
Enclosure: IP20
NEMA Rating: ML-2P, NEMA ML-2P
- Abuse resistant nylon housing
- 2000 VAC minimum dielectric withstand voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 10 to 6 AWG terminal accommodation
- Safety shroud stainless steel
- Nylon shell construction
- Copper box terminal
- Supertough nylon front and rear housing
- Phenolic body for high heat resistance
- Angled body design for low profile in tight spaces
- Totally insulated body adds extra measure of safety
- Glass reinforced PET blade holder/terminal retainer/cord clamp
- Brass blade
- 302/304 stainless steel cord clamp screw/body holding screw
- Molded-in or stamped-on ratings
Hubbell HBL7570 Locking Plug
Wiring Device-Kellems Twist-Lock Locking Plug, 1-Phase Angled Grounding Male Midget Cord Mount, 125 VAC, 15 A, 2 Pole, 3 Wires, ML-2P NEMA Rating, Industrial Grade, IP20 Enclosure, 0.335 to 0.421 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 1.68 x 1.17 x 1.33 in
Additional Description: HUBW-HBL7570 LKG PLUG, ANG, MIDGET, 15A 125V, ML-2P
Catalog Description: Locking Devices, Midget Twist-Lock®, Industrial, Male Plug, 15A 125V AC, 2-Pole 3-Wire Grounding, NEMA ML-2P, Screw Terminal, Black, Angled.
