Part Number # HBL7598
SKU # 2433474
Image Disclaimers Message
HBL7598

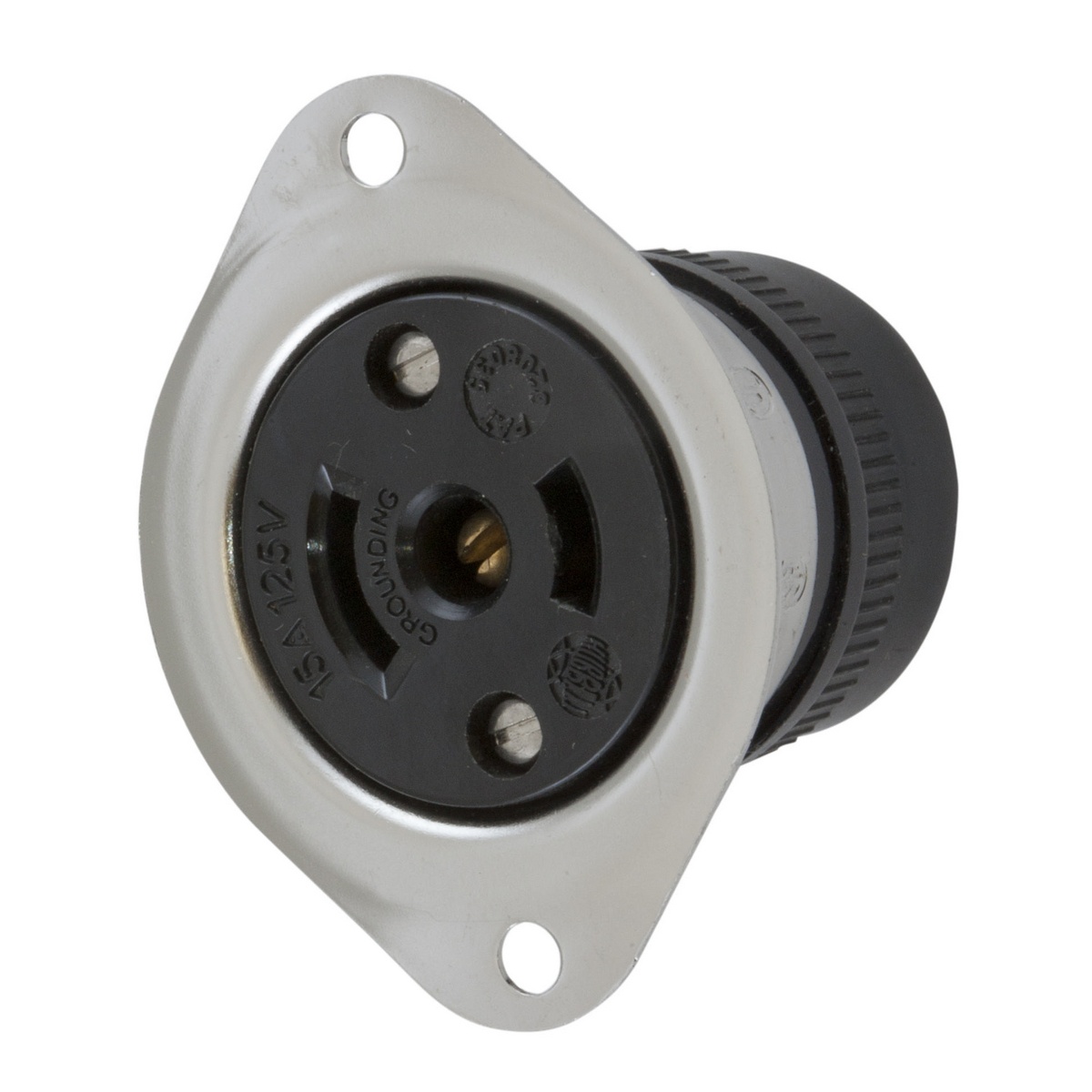

Hubbell HBL7598 Locking Flanged Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Part Number # HBL7598
SKU # 2433474
$41.64 / Each
Typical price:$79.00 / Each
Hubbell HBL7598 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL7598 |
| SKU #: | 2433474 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 1/2 in |
| Dimensions: | 2.06 x 1.62 x 1.25 in |
| Enclosure: | IP20 |
| NEMA Rating: | ML-2R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Flanged Heavy Duty Grounding Mid Gate Standard Screw Mount |
| Color: | Black |
| Country of origin: | PR, US |
| Material: | Stainless Steel |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585237831 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$41.64 / Each
Typical price:$79.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL7598, Locking Flanged Receptacle, 125 V AC, 15 A, 2 Pole, 3 Wires, ML-2R NEMA Rating, Industrial Grade, IP20 Enclosure, 1/2 in Diameter Cord, -40 to 70 deg C, Screw Terminal, Stainless Steel, Black, 2.06 x 1.62 x 1.25 in Dimensions
HBL7598 Application
Indoor Dry EnvironmentHBL7598 Item Features
- High heat resistant phenolic base
- https://youtu.be/2a3hFpuR_CM
HBL7598 Standards
UL 498|UL94 V-0 Flammability Rating|NEMA WD1/WD5|CSA C22.2 No. 42/0.17SKU #2433474Part Number #HBL7598UNSPSC39121406UPC00783585237831
