Brand: Hubbell

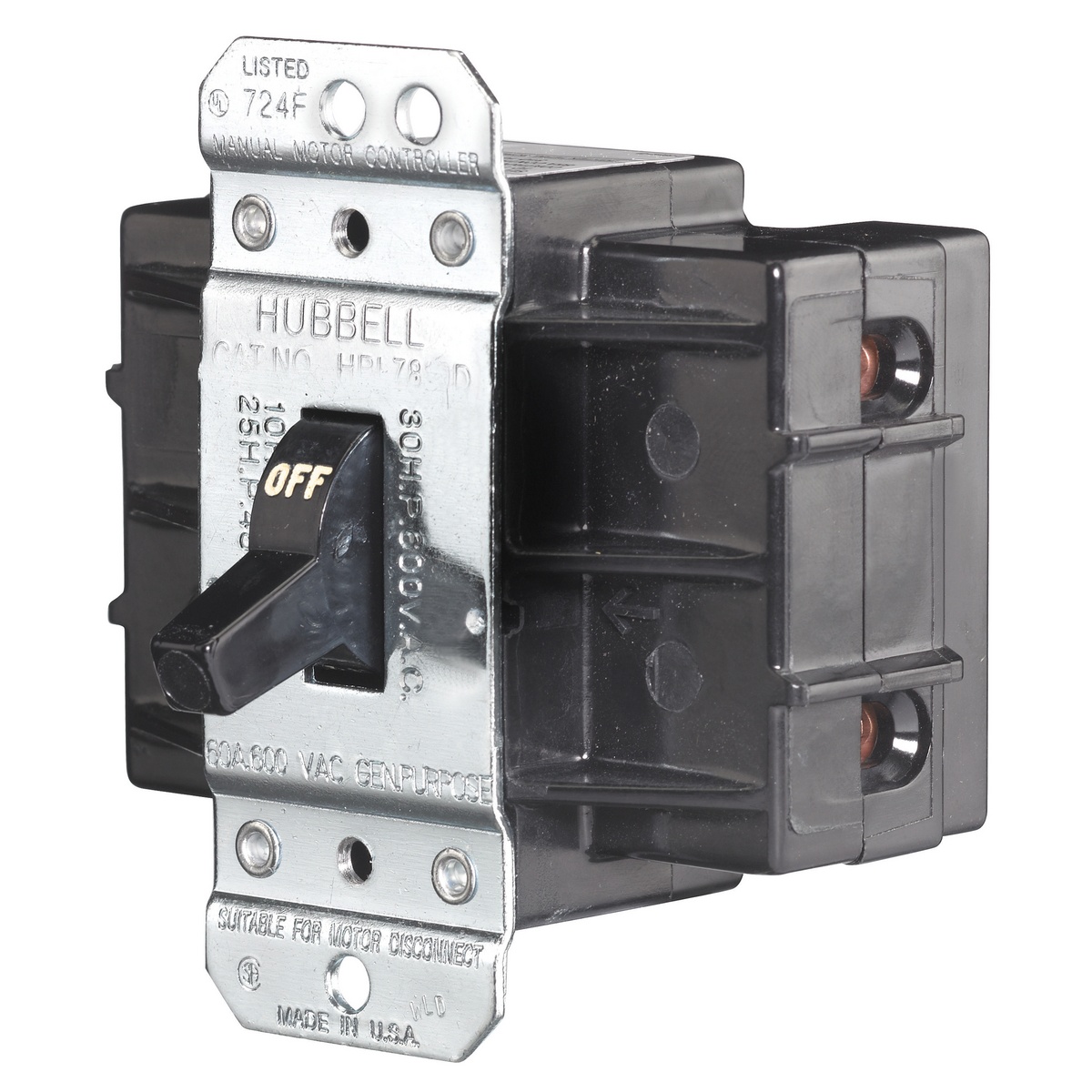

Hubbell HBL7862D AC Motor Disconnect Switch
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL7862D AC Motor Disconnect Switch
Brand: Hubbell
Hubbell HBL7862D AC Motor Disconnect Switch
Part #:HBL7862D
SKU #: 2247184
$161.43/EA
Key Features
Part #:HBL7862D
SKU #: 2247184
Brand: Hubbell
Actuator: Toggle
Actuator Type: Toggle
Amperage Rating: 60 A
Connection: Pressure Screw Terminal
Dimensions: 3.78 in L x 3.56 in W x 2.83 in H
$161.43/EA
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
Specifications
Brand: Hubbell
Actuator: Toggle
Actuator Type: Toggle
Amperage Rating: 60 A
Connection: Pressure Screw Terminal
Dimensions: 3.78 in L x 3.56 in W x 2.83 in H
Enclosure: Open
Enclosure Type: Open
Environmental Conditions: -40 deg C
Horsepower: 20
Number of Poles: 2
Phase: 1
Power Rating: 36000 W
Temperature Rating (Degrees F): -40 to 75
Terminal Type: Back and Side Wired/Pressure Screw
Type: 1-Phase Standard, Standard
Voltage Rating: 600, 600 VAC
Country of origin: PR
Material: Stainless Steel
Mounting type: Threaded
Manufacturer Name: Hubbell
UNSPSC: 39121521
UPC: 00783585202884
Hubbell HBL7862D AC Motor Disconnect Switch
Wiring Device-Kellems Circuit-Lock AC Motor Disconnect Switch, 1-Phase Standard, 600 VAC, 60 A, 36000 W Power, 2 Pole, Toggle Actuator, Pressure Screw Terminal Connection, Open Enclosure, Stainless Steel, Environmental Conditions: -40 deg C, 3.78 in L x 3.56 in W x 2.83 in H
Additional Description: HUBW-HBL7862D DISCONNECT 60A 600V 2P DISC SW
Catalog Description: Switches and Lighting Control, Motor Disconnect, 2-Pole, 60A 600V, Back and Side Wired
Item FeaturesIndustry, Motor Starting without Overload Protection Applications and Indoor Dry Environment
Item Features
Item FeaturesRoHS Compliant|CSA C22.2 File No.14 and CSA File No. LR46186|UL 508|UL File No. E70402
