Part Number # HBL7863D
SKU # 2196724
HBL7863D

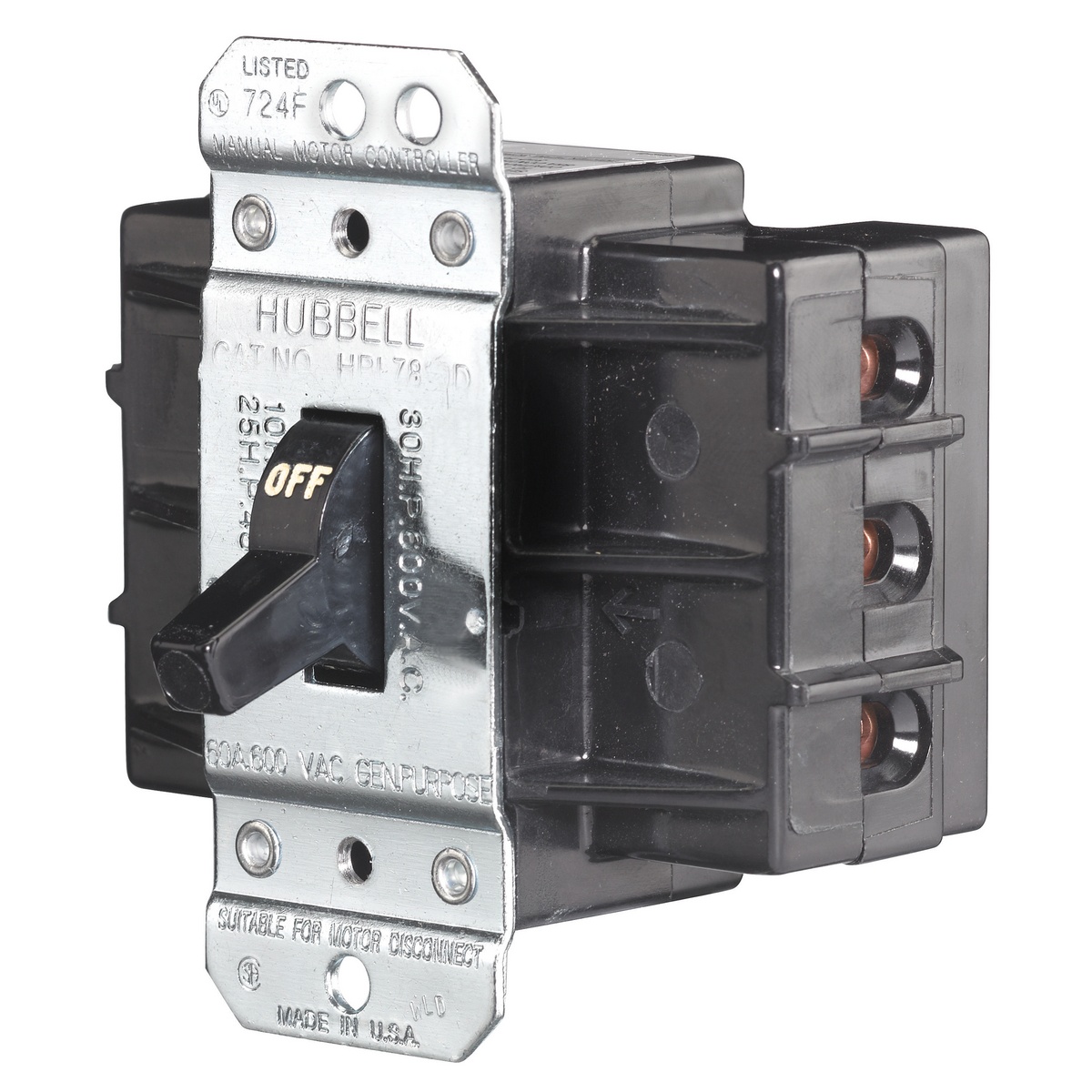

Hubbell HBL7863D AC Motor Disconnect Switch
Part Number # HBL7863D
SKU # 2196724
Hubbell HBL7863D Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL7863D |
| SKU #: | 2196724 |
| Connection: | Pressure Screw Terminal |
| Dimensions: | 3.78 in L x 3.56 in W x 2.83 in H |
| Enclosure: | Open |
| Environmental Conditions: | -40 deg C |
| UNSPSC: | 39121521 |
| UPC: | 00783585202907 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL7863D AC Motor Disconnect Switch
Brand: Hubbell
Part Number: HBL7863D
Hubbell Wiring Device-Kellems Circuit-Lock, HBL7863D, AC Motor Disconnect Switch, 3-Phase Standard, Series: HBL, 600 V AC, 60 A, 36000 W Power, 3 Pole, Toggle Actuator, Pressure Screw Terminal Connection, Open Enclosure, Threaded Mounting, 10000 Cycles Operating Cycles, Stainless Steel, Environmental Conditions: -40 deg C, 3.78 in L x 3.56 in W x 2.83 in H Dimensions
Additional Description: HUBW-HBL7863D DISCONNECT 60A 600V 3P DISC SW
Catalog Description: Switches and Lighting Control, Motor Disconnect, 3-Pole, 60A 600V, Back and Side Wired
HBL7863D Application
Industry, Motor Starting without Overload Protection Applications and Indoor Dry EnvironmentHBL7863D Item Features
- Thermoset body withstands high temperatures
- Recessed wiring wells for finger safe environments
- Strong ON/OFF action with quick-make, slow break operation
- Thermoset body provides high resistance to electrical arc tracking
- Front and back wiring with steel screws and copper terminals
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBL7863D Standards
CSA Certified|RoHS Compliant|CSA C22.2 File No.14 and CSA File No. LR46186|UL 508|UL File No. E70402SKU #2196724Part Number #HBL7863DUNSPSC39121521UPC00783585202907
Image provided may only be a representation of final product and may include optional equipment
