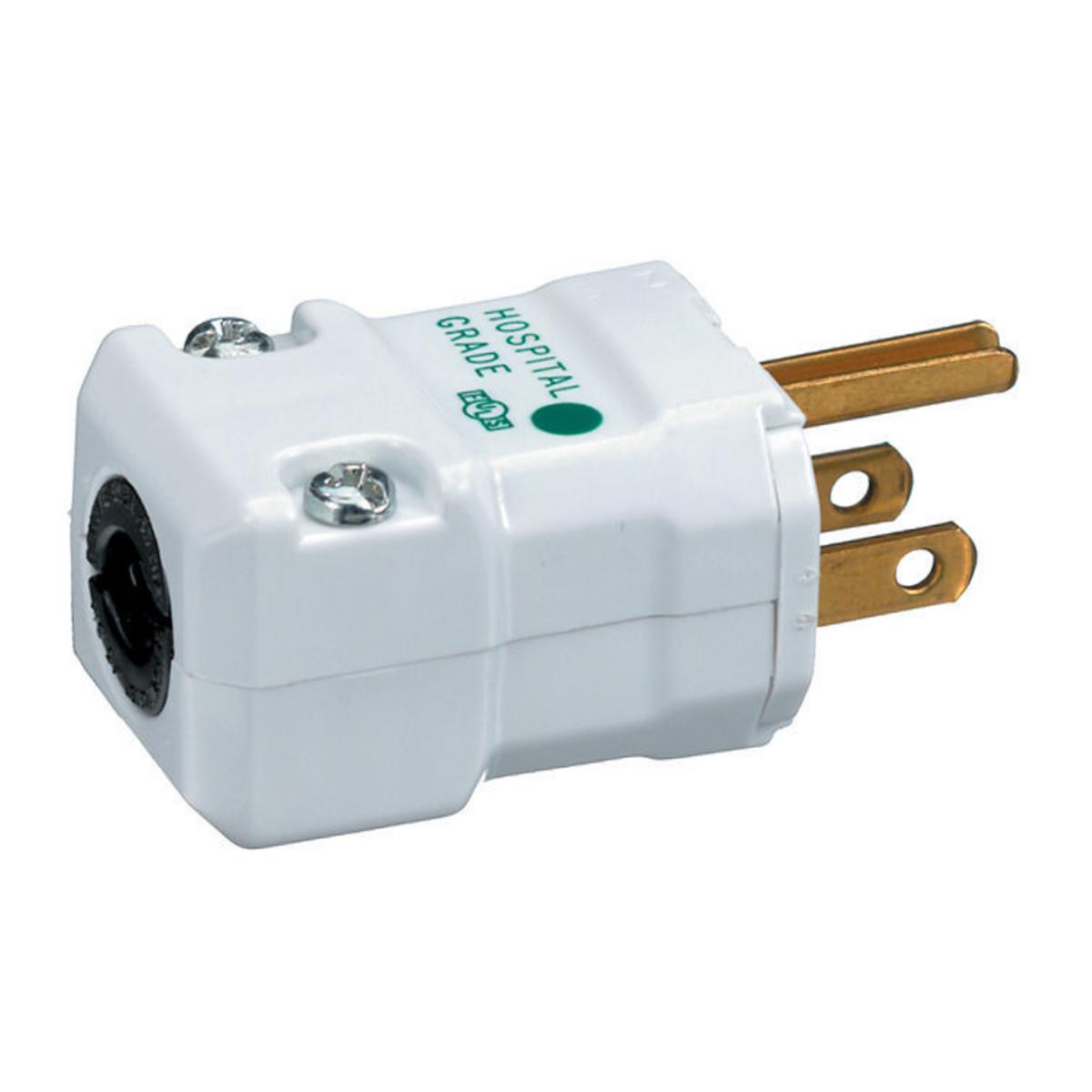

Hubbell HBL8115V Straight Blade Plug
Image Disclaimers Message
Hubbell HBL8115V Straight Blade Plug
Hubbell HBL8115V Straight Blade Plug
Part #:HBL8115V
SKU #: 53792
Key Features
Part #:HBL8115V
SKU #: 53792
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.3 to 0.66, 0.3 to 0.66 in
Dimensions: 1-7/8 in L x 1-1/4 in W, 1.88 x 1.25 x 1.13, 1.88 x 1.25 x 1.13 in
Enclosure: IP20
Horsepower: 1/2, 1/2 hp
- Hinged one-piece body design for easy assembly
- Cord mounted
- Brass blades, plated steel assembly screws
- Withstands 2000 VAC minimum dielectric voltage
- 18 to 16 AWG wire size
- Terminals identified in accordance with UL 498 and CSA terminal identification
- Powerful, off setting cord grips clamp on individual conductors
- Certified for current interrupting at full rated current
- Ratings are a permanent part of the device product identification
- 16 to 12 AWG conductor terminal accommodation
- All portable cord
Hubbell HBL8115V Straight Blade Plug
Wiring Device-Kellems Valise Straight Blade Plug, 1-Phase Grounding Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Hospital Grade, IP20 Enclosure, 0.3 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.88 x 1.25 x 1.13 in
Additional Description: HUBW-HBL8115V VALISE PLUG, HG, 15A 125V, 5-15P, WH
Catalog Description: Straight Blade Devices, Male Plug, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15P, White, Single Pack.
