Hubbell HBL8200GY Wiring Device-Kellems HBL Straight Blade Receptacle
Part Number # HBL8200GY
SKU # 2411321
HBL8200GY
Hubbell HBL8200GY Wiring Device-Kellems HBL Straight Blade Receptacle
Part Number # HBL8200GY
SKU # 2411321
Hubbell HBL8200GY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL8200GY |
| SKU #: | 2411321 |
| UNSPSC: | 39121406 |
| UPC: | 00783585435640 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBL8200GY Wiring Device-Kellems HBL Straight Blade Receptacle
Brand: Hubbell
Part Number: HBL8200GY

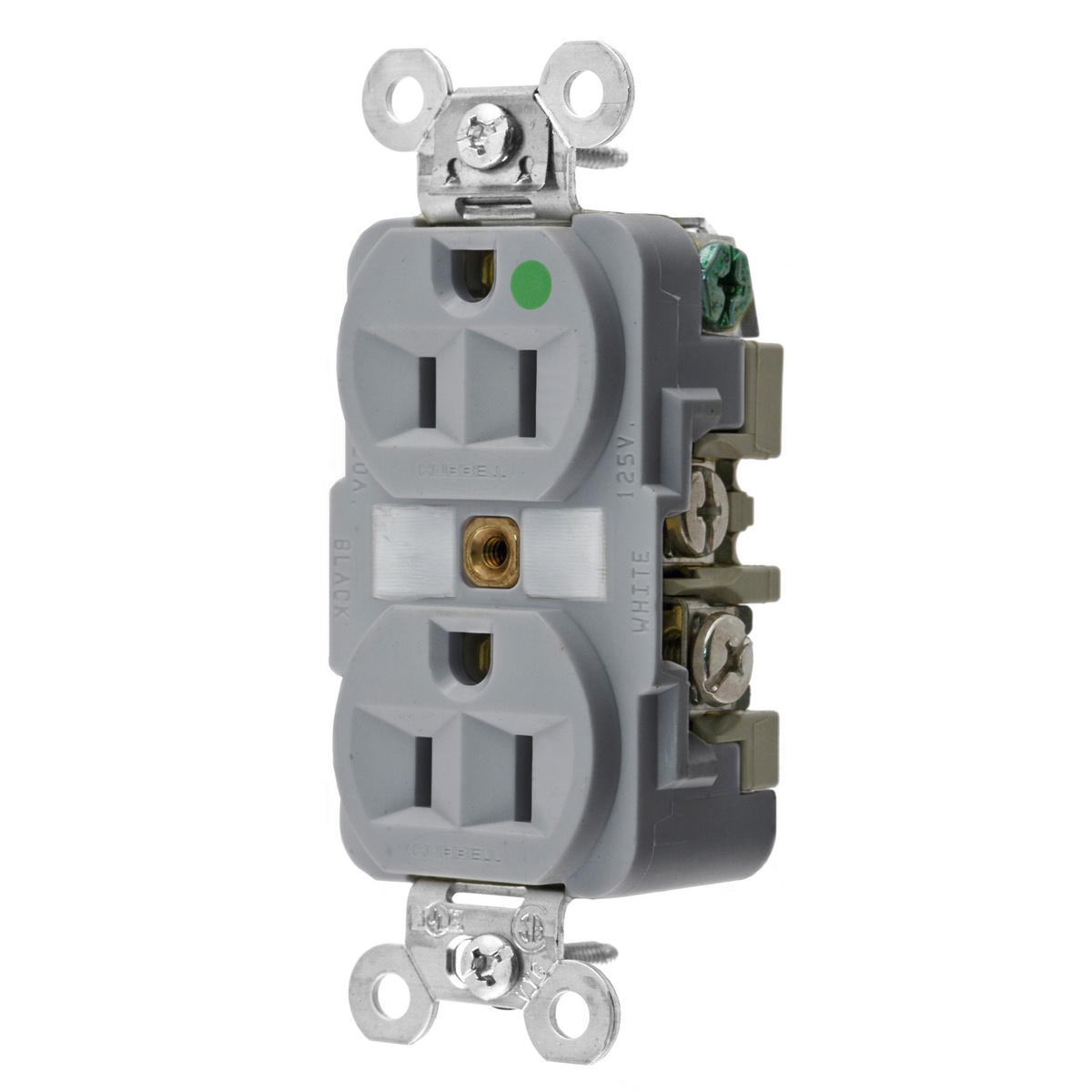

Hubbell Wiring Device-Kellems HBL, HBL8200GY, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Hospital Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic, Gray, 3.28 x 1.65 x 1.19 in Dimensions
Additional Description: HUBW-HBL8200GY DUP RCPT, HG, 15A 125V, 5-15R, GY
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Single Pack.
HBL8200GY Application
Indoor Dry EnvironmentHBL8200GY Item Features
- Unique bypass contact design
- Deep body design with circuit ID face
- Patented ground contact provides redundant grounding
HBL8200GY Standards
CSA C22.2 No. 42 File No. 285|Federal Specification W-C-596|RoHS Compliant|UL 498 File No. E2186|UL 94-V-0 Flammability Rating|NEMA WD1/WD5/WD6SKU #2411321Part Number #HBL8200GYUNSPSC39121406UPC00783585435640
Image provided may only be a representation of final product and may include optional equipment
