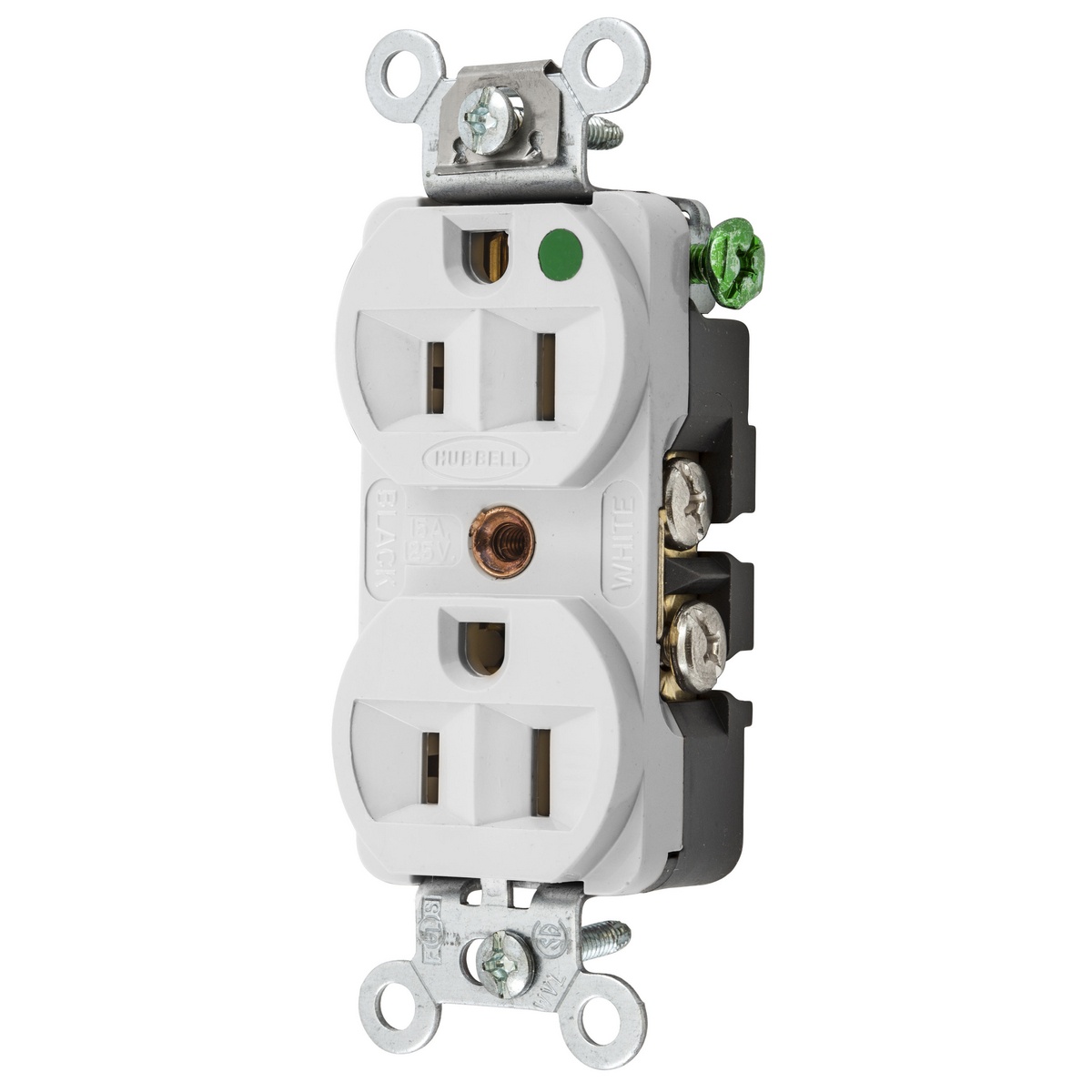

Hubbell HBL8200HW HBL 1-Phase Compact Duplex Self-Grounding Screw Mount Straight Blade Receptacle
Image Disclaimers Message
Hubbell HBL8200HW HBL 1-Phase Compact Duplex Self-Grounding Screw Mount Straight Blade Receptacle
Hubbell HBL8200HW HBL 1-Phase Compact Duplex Self-Grounding Screw Mount Straight Blade Receptacle
Part #:HBL8200HW
SKU #: 2296650
Key Features
Part #:HBL8200HW
SKU #: 2296650
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 x 1.33 x 1.05, 3.28 x 1.33 x 1.05 in
Enclosure: IP20
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R
- 0.031 in brass ground contact
- Nickel plated steel clamping plate
- Brass terminal screw
- 0.05 in galvanized steel mounting strap
- Stainless steel automatic self-grounding staple
- Zinc plated steel mounting screw
- 14 to 12 AWG wire size
- 14 to 12 AWG solid or stranded copper conductor terminal accommodation
- Flush nylon face style
- Back and side wired screw terminals connection
- Withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Impact resistant finder groove face
- Triple wipe contact
- PBT base, 0.031 in brass contacts, nylon face
Hubbell HBL8200HW HBL 1-Phase Compact Duplex Self-Grounding Screw Mount Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Compact Duplex Self-Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Hospital Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic, White, 3.28 x 1.33 x 1.05 in
Additional Description: HUBW-HBL8200HW DUP RCPT, COM/HG, 15A 125V, 5-15R, WH
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, White, Bulk Packed.
