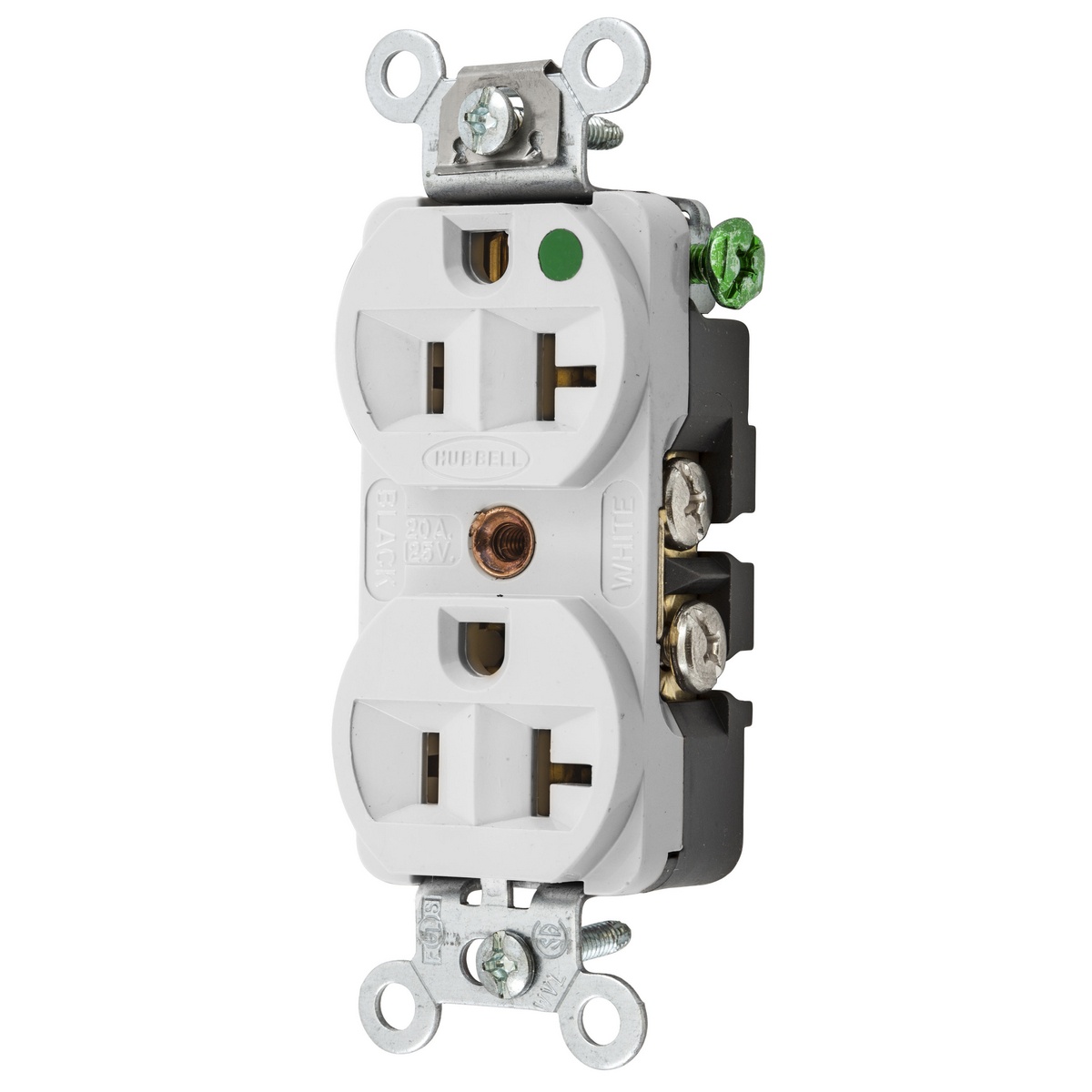

Hubbell HBL8300HW Receptacle
Image Disclaimers Message
Hubbell HBL8300HW Receptacle
Hubbell HBL8300HW Receptacle
Part #:HBL8300HW
SKU #: 2419962
Key Features
Part #:HBL8300HW
SKU #: 2419962
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 3.28 x 1.33 x 1.05 in
Enclosure: IP20
Horsepower: 1 hp
NEMA Rating: 5-20R
- Slender compact design
- Brass terminal screw
- 0.05 in galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screw
- Certified for current interrupting at full rated current
- Withstands 2000 VAC minimum dielectric voltage
- Terminals identified in accordance with UL 498 and CSA terminal identification
- 14 to 12 AWG wire size
- Triple wipe contacts
- Impact resistant finder groove face
- RTP base offers greater heat resistance, plus contact stability
- PBT face and base material
- 0.031 in brass contacts and ground contact
- Nickel plated steel clamping plate
Hubbell HBL8300HW Receptacle
Wiring Device-Kellems HBL® Straight Blade Receptacle, Duplex Extra Heavy Duty Self-Grounding Traditional, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, White, 3.28 in L x 1.33 in W x 1.05 in H Dimensions
Additional Description: HUBW-HBL8300HW DUP RCPT, COM/HG, 20A 125V, 5-20R, WH
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, White, Single Pack.
