Brand: Hubbell

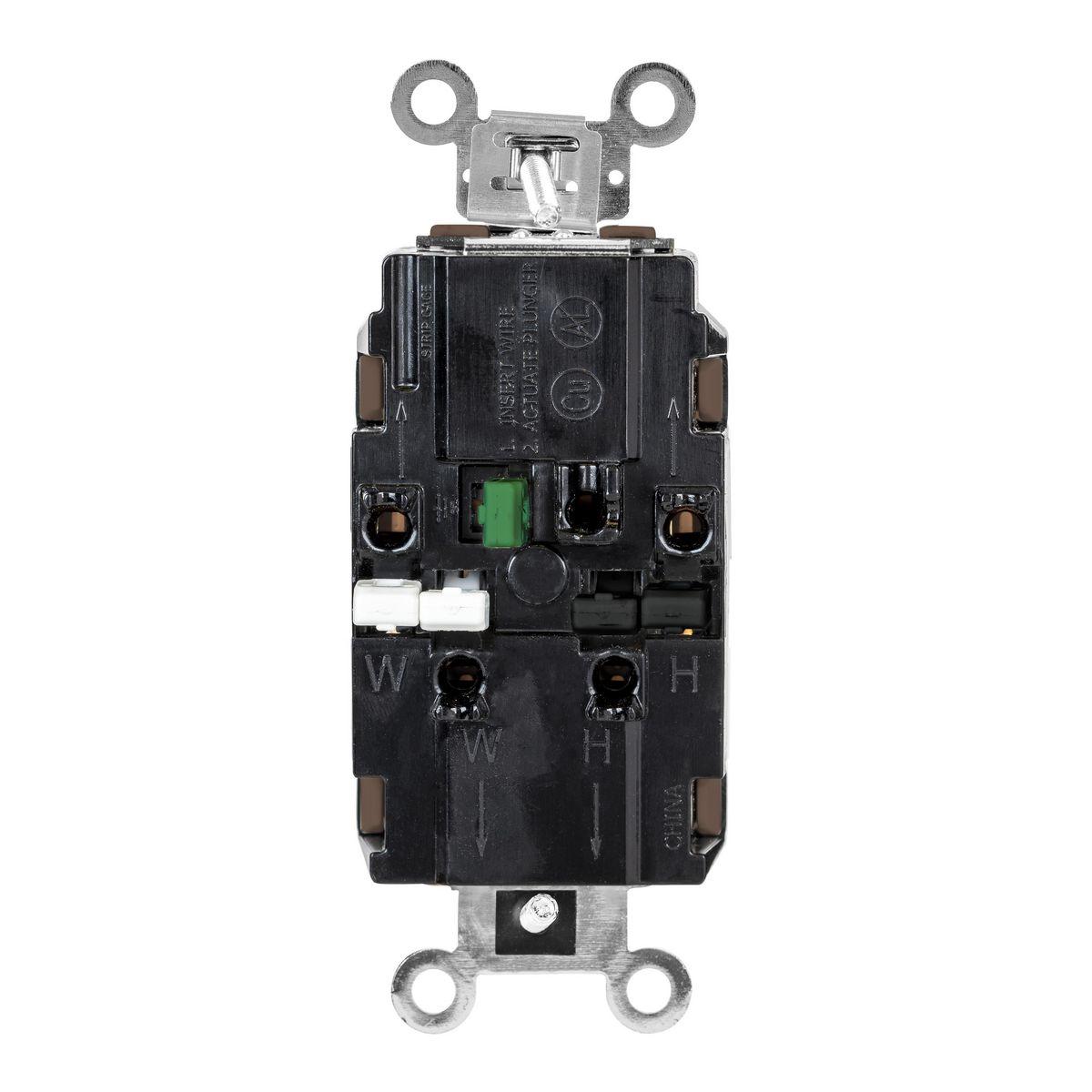

Hubbell HBL8300ST EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Brown
Image Disclaimers Message
Brand: Hubbell
Hubbell HBL8300ST EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Brown
Brand: Hubbell
Hubbell HBL8300ST EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Brown
Part #:HBL8300ST
SKU #: 2426860
$35.93/EA
Key Features
Part #:HBL8300ST
SKU #: 2426860
Brand: Hubbell
Amperage Rating: 20 A
NEMA Rating: 5-20R
Number of Poles: 2
Number of Wires: 3
Series: EdgeConnect
$35.93/EA
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
Specifications
Brand: Hubbell
Amperage Rating: 20 A
NEMA Rating: 5-20R
Number of Poles: 2
Number of Wires: 3
Series: EdgeConnect
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screwless
Type: Straight Blade
Voltage Rating: 125 V
Color: Brown
Country of origin: CN
Material: Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585687384
Hubbell HBL8300ST EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Brown
Additional Description: HUBW-HBL8300ST DPLX RCPT, HG, SPRG TRM, 20A 125V, BR 5-20R
Catalog Description: Straight Blade Devices, EdgeConnect™, Duplex Receptacle, Hospital Grade, 2-Pole 3-Wire, 20A 125V, 5-20R, Screwless Terminal, Brown
Item FeaturesFor Heavy Duty application
Item Features
Item FeaturesUL Listed to UL498 File No. E2186 Certified to CSA 22.2|No. 42 File 285 Fed. Spec. W-C-596|NEMA WD-6 Compliant
