- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 14 to 12 AWG solid or stranded copper conductor terminal accommodation
- UL 94-HB or better flammability rating
- 0.1 in brass contact blades, 0.075 in ground contact blade
- Steel zinc plated terminal screw, 3/8 in Allen head, plated steel ground screw
- Glass reinforced PET blade holder and retainer material, glass reinforced polyester cord clamp
Specifications
Brand: Hubbell
Amperage Rating: 50, 50 A
Cord Diameter: 0.625 to 1.31, 0.625 to 1.31 in
Enclosure: IP20
Horsepower: 7.5, 7.5 hp
NEMA Rating: 15-50P, NEMA 15-50P
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw, Threaded
Type: 3-Phase Grounding Standard Cord Mount, Grounding Standard
Voltage Rating: 250, 250 VAC
Color: Black/White
Country of origin: PR, US
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585015163

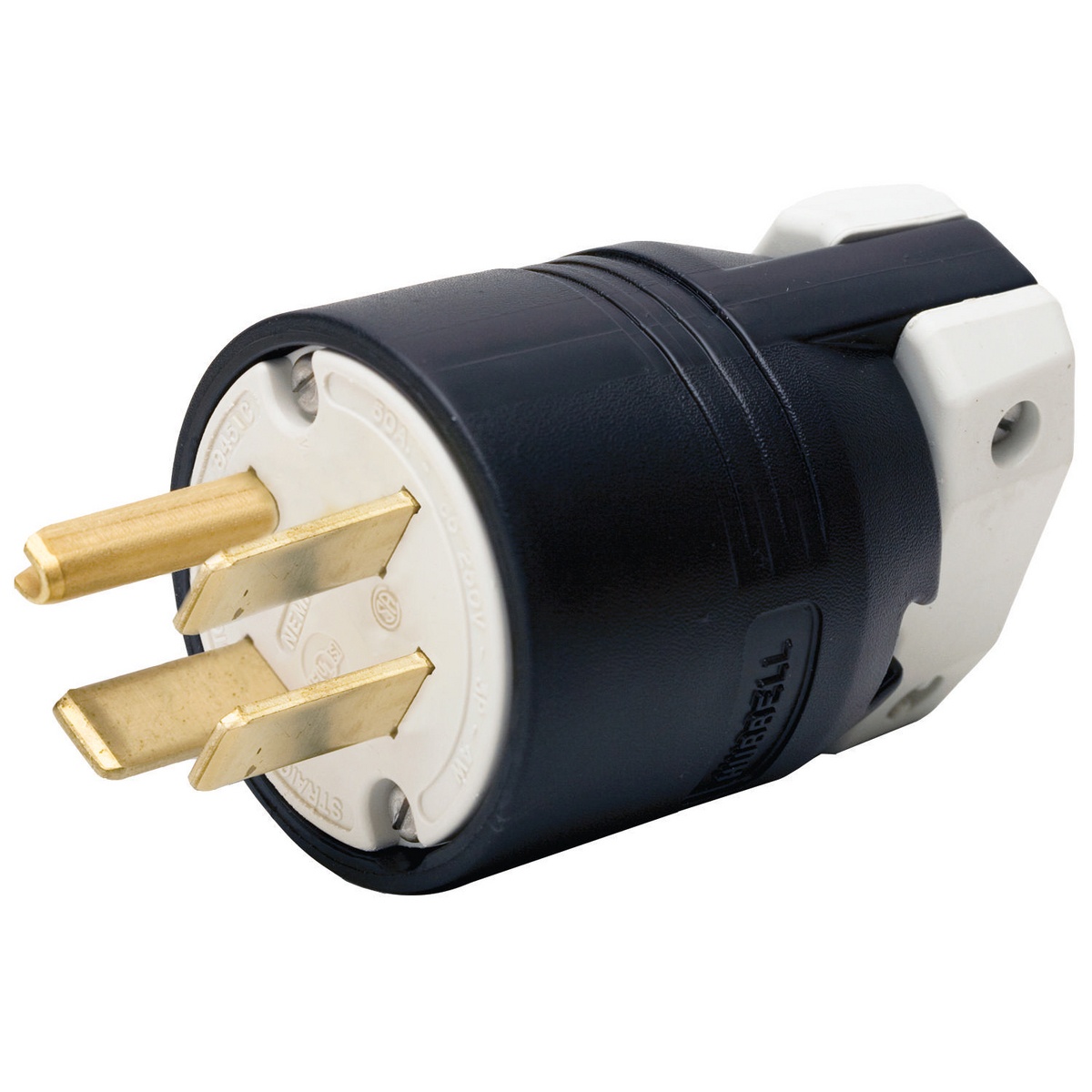

Hubbell HBL8451C Straight Blade Plug
Wiring Device-Kellems Insulgrip Straight Blade Plug, 3-Phase Grounding Standard Cord Mount, 250 VAC, 50 A, 7.5 hp, 3 Pole, 4 Wires, 15-50P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White
Additional Description: HUBW-HBL8451C PLUG, 3P4W, 50A 3PH 250V, 15-50P,BK BK
Catalog Description: Straight Blade Devices, Plug,Industrial Grade, 3-Pole 4-Wire Grounding, 50A 3 Phase 250V AC, 15-50P, Black, Single Pack.
Item Features
Item FeaturesUL 498, File No. E1706 Listed|UL 94-HB Flammability Rating|CSA C22.2 No. 42, 280|NEMA WD1/WD5|RoHS Compliant
