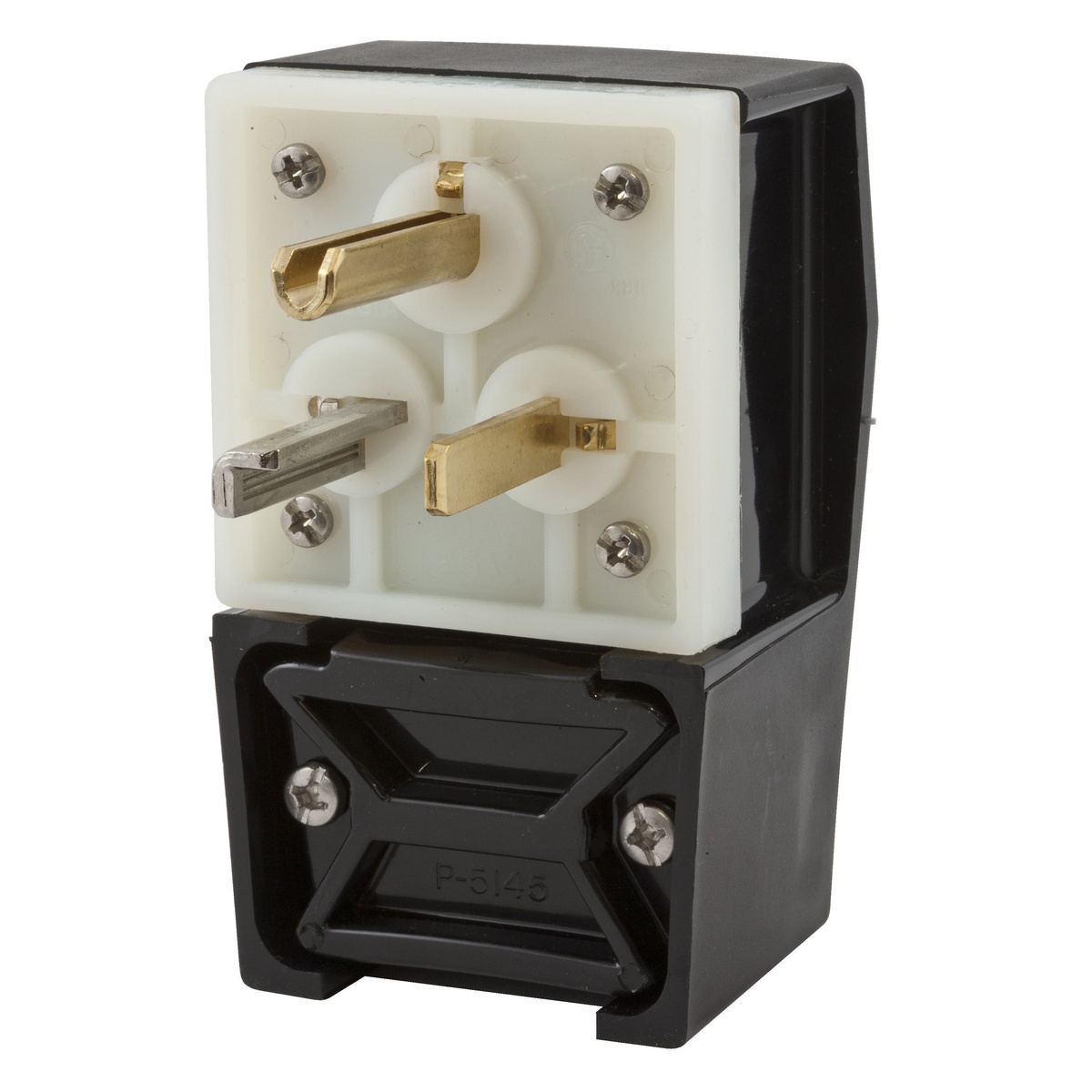

Hubbell HBL9309 Straight Blade Plug
Part Number # HBL9309
SKU # 278777
$90.57 / Each
Typical price:$117.00 / Each
Hubbell HBL9309 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL9309 |
| SKU #: | 278777 |
| Cord Diameter: | 0.625 to 1.187 in |
| Dimensions: | 4.34 x 2.75 x 1.88 in |
| Enclosure: | IP20 |
| Horsepower: | 2 hp |
| NEMA Rating: | 5-30P |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | 1-Phase Angled Grounding Heavy Duty Male Cord Mount |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585015224 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.57 / Each
Typical price:$117.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL9309, Straight Blade Plug, 1-Phase Angled Grounding Heavy Duty Male Cord Mount, 125 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, 5-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black, 4.34 x 2.75 x 1.88 in Dimensions
HBL9309 Item Features
- Nylon blade holder
- All portable cord
- Steel zinc plated cord clamp screw and body holding screw
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- 12 to 6 AWG copper stranded or solid wire size
- Reinforced thermoplastic polyester cord clamp
- Withstands 2000 VAC minimum dielectric voltage
- Four position assembly
- Cord mounted
- https://youtu.be/1DnPJu3QNw0
HBL9309 Standards
CSA Certified|RoHS Compliant|UL 498|NEMA WD1/WD5SKU #278777Part Number #HBL9309UNSPSC39121402UPC00783585015224
Image provided may only be a representation of final product and may include optional equipment
