Part Number # HBL9333
SKU # 2260888
HBL9333

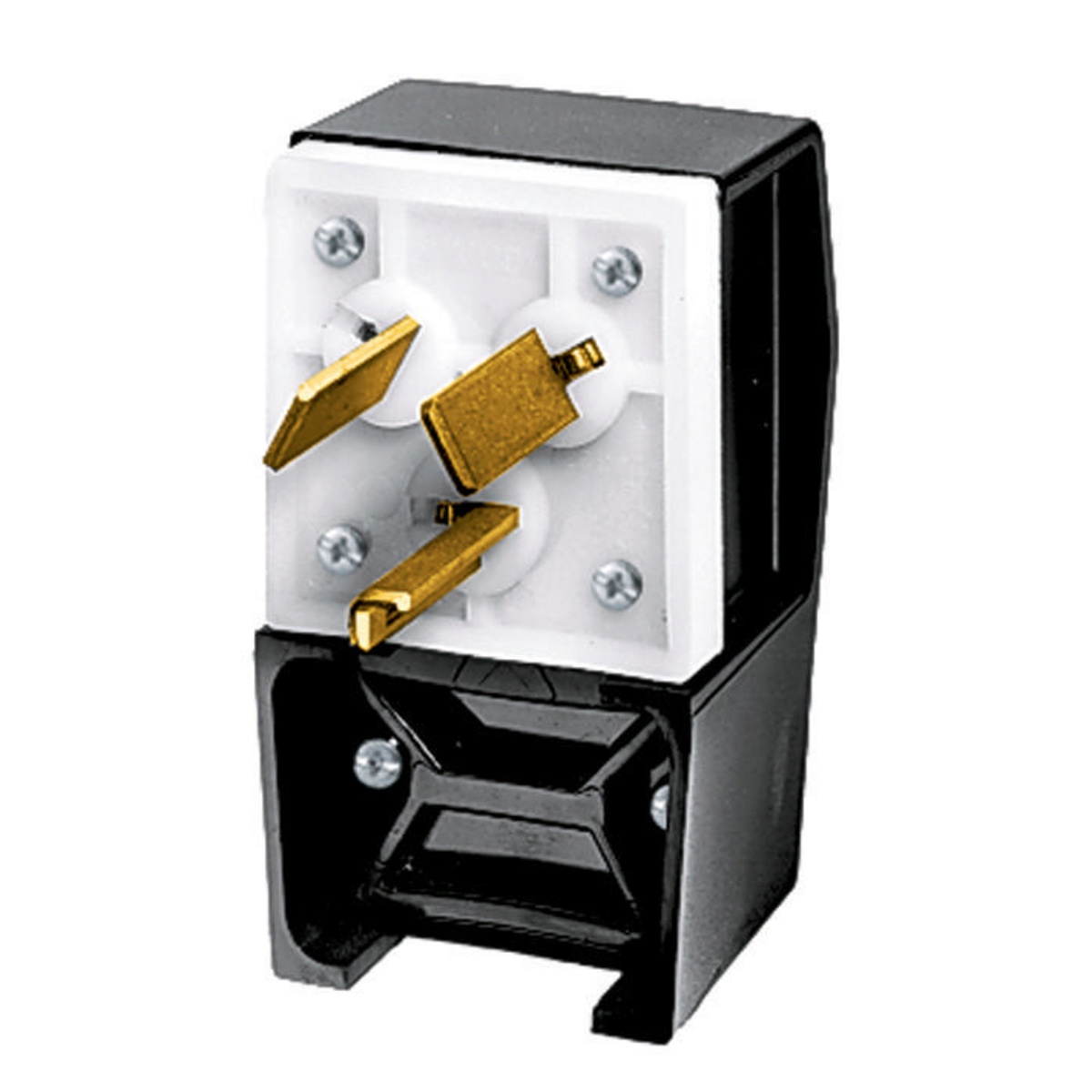

Hubbell HBL9333 Straight Blade Plug
Part Number # HBL9333
SKU # 2260888
$69.93 / Each
Typical price:$90.35 / Each
Hubbell HBL9333 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL9333 |
| SKU #: | 2260888 |
| Amperage Rating: | 30 A |
| Cord Diameter: | 0.625 to 1.187 in |
| Dimensions: | 4.34 x 2.75 x 1.88 in |
| Enclosure: | IP20 |
| Horsepower: | 2 hp |
| NEMA Rating: | 10-30P |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Angled Heavy Duty Male Non-Grounding Cord Mount |
| Country of origin: | US |
| Material: | Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585015422 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$69.93 / Each
Typical price:$90.35 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL9333, Straight Blade Plug, 1-Phase Angled Heavy Duty Male Non-Grounding Cord Mount, 125/250 V AC, 30 A, 2 hp, 3 Pole, 3 Wires, 10-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Thermoplastic/Composite, Black, 4.34 x 2.75 x 1.88 in Dimensions
HBL9333 Application
Indoor Dry Environment, Commercial and Industrial ApplicationsHBL9333 Item Features
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Non grounding plug
- Withstands 2000 VAC minimum dielectric voltage
- Reinforced thermoplastic polyester blade holder
- All portable cord
- Steel zinc plated terminal screw
- Brass contact blades
- Four position assembly
- Indoor dry unless protected by additional mean environmental conditions
- Cord mounted
- https://youtu.be/1DnPJu3QNw0
HBL9333 Standards
CSA Certified|RoHS Compliant|UL 498|NEMA WD1/WD5SKU #2260888Part Number #HBL9333UNSPSC39121402UPC00783585015422
Image provided may only be a representation of final product and may include optional equipment
