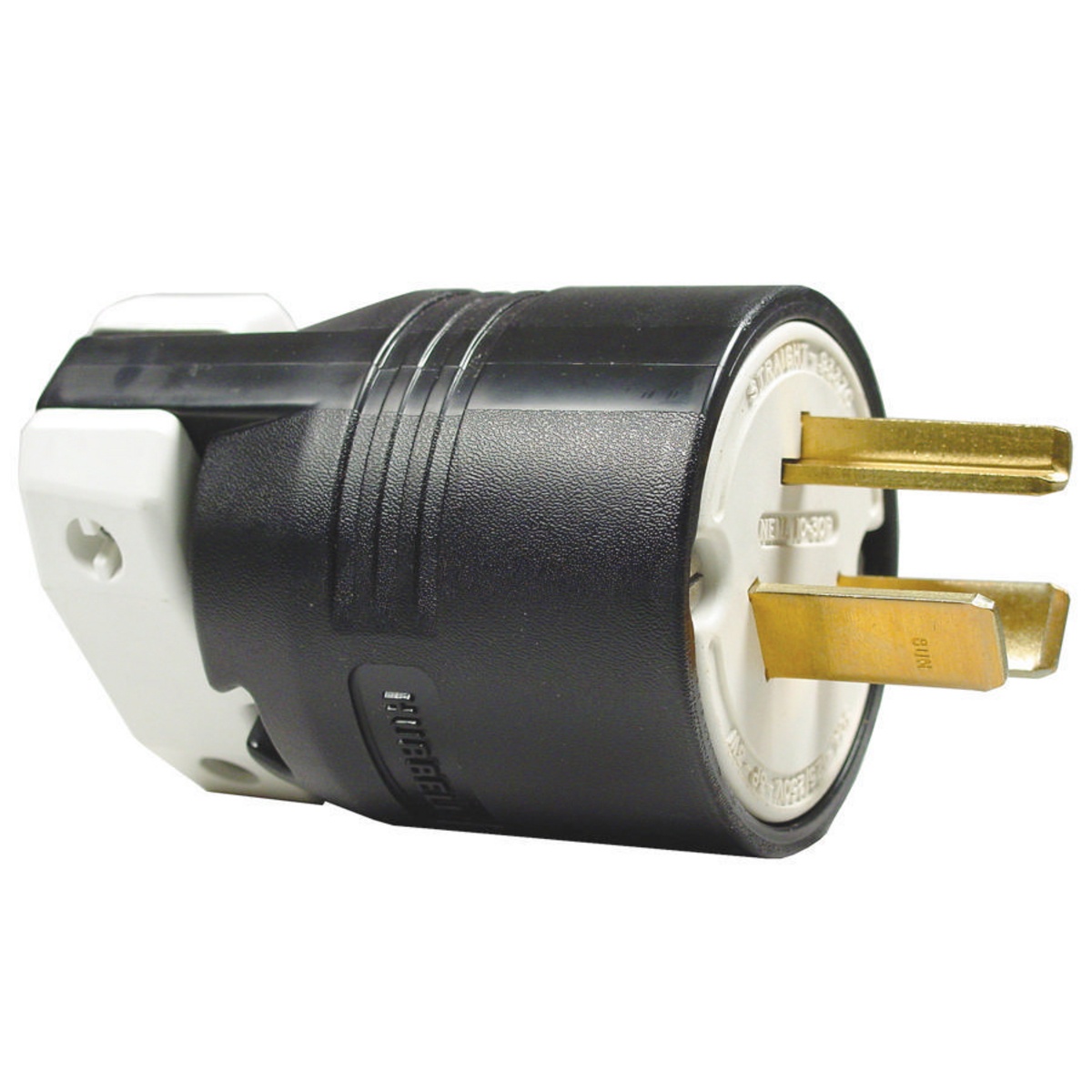

Hubbell HBL9337C Straight Blade Plug
Image Disclaimers Message
Hubbell HBL9337C Straight Blade Plug
Hubbell HBL9337C Straight Blade Plug
Part #:HBL9337C
SKU #: 2260374
Key Features
Part #:HBL9337C
SKU #: 2260374
Brand: Hubbell
Amperage Rating: 30, 30 A
Cord Diameter: 5/8 to 1, 5/8 to 1 in
Dimensions: 2.88 in Dia x 4.13 in L, 4.13 x 2.75 x 2.88 in
Enclosure: IP20
Horsepower: 2, 2 hp
- Supertough nylon housing
- Brass contact blade
- Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150 Percent of rated current at a power factor of 75 Percent
- 12 to 4 AWG copper stranded or solid wire size
- Withstands 2000 VAC minimum dielectric voltage
- Gripping ribs provide secure gripping area
- Captive Allen head terminal screws are user ready
- All portable cord
- Cord mounted
- Reinforced thermoplastic polyester blade holder
- https://youtu.be/1DnPJu3QNw0
Hubbell HBL9337C Straight Blade Plug
Wiring Device-Kellems Straight Blade Plug, 1-Phase Heavy Duty Non-Grounding Male Cord Mount, 125/250 VAC, 30 A, 2 hp, 3 Pole, 3 Wires, 10-30P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 5/8 to 1 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 4.13 x 2.75 x 2.88 in
Additional Description: HUBW-HBL9337C PLUG, 3P3W, 30A 125/250V, 10-30P, BK
Catalog Description: Straight Blade Devices, Male Plug, Insulgrip, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 3-Wire Non-Grounding, 30A 125/250V, 10-30P, Black, Single Pack.
