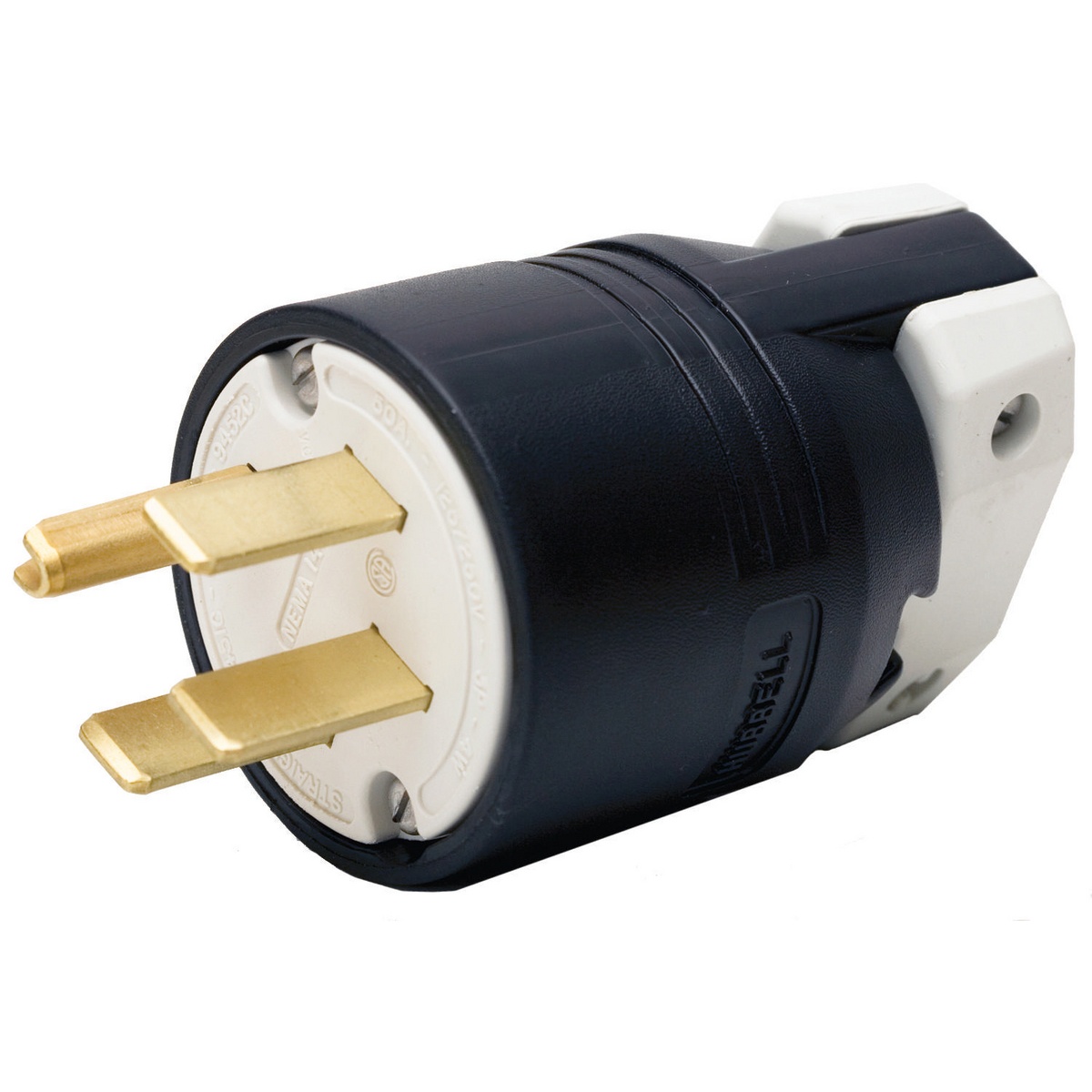

Hubbell HBL9451C Straight Blade Plug
Image Disclaimers Message
Hubbell HBL9451C Straight Blade Plug
Hubbell HBL9451C Straight Blade Plug
Part #:HBL9451C
SKU #: 18729
Key Features
Part #:HBL9451C
SKU #: 18729
Brand: Hubbell
Amperage Rating: 50, 50 A
Cord Diameter: 0.625 to 1.31, 0.625 to 1.31 in
Dimensions: 4.13 in L x 2.88 in W, 4.13 x 2.88 x 2.88, 4.13 x 2.88 x 2.88 in
Enclosure: IP20
Horsepower: 3, 3 hp
- Gripping ribs provide secure gripping area
- 3/8 in Allen head, plated steel ground screw
- Copper box terminals
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- 12 to 4 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device product identification
- All portable cord
- Cord mounted
- Supertough nylon housing
- Catalog number, ratings and certifications molded in face
- Glass reinforced PET blade holder
- 0.075 in brass ground contact blade
- Steel zinc plated terminal screw
- Withstands 2000 VAC minimum dielectric voltage
- Terminals identified in accordance with UL 498 (brass, white, green) terminal identification
- Glass reinforced polyester cord clamp
Hubbell HBL9451C Straight Blade Plug
Wiring Device-Kellems Insulgrip Straight Blade Plug, 1-Phase Grounding Male Standard Cord Mount, 125/250 VAC, 50 A, 3 hp, 3 Pole, 4 Wires, 14-50P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.625 to 1.31 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon, Black, 4.13 x 2.88 x 2.88 in
Additional Description: HUBW-HBL9451C PLUG, 3P4W, 50A 125/250V, 14-50P 14-50P
Catalog Description: Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P, Black, Single Pack.
