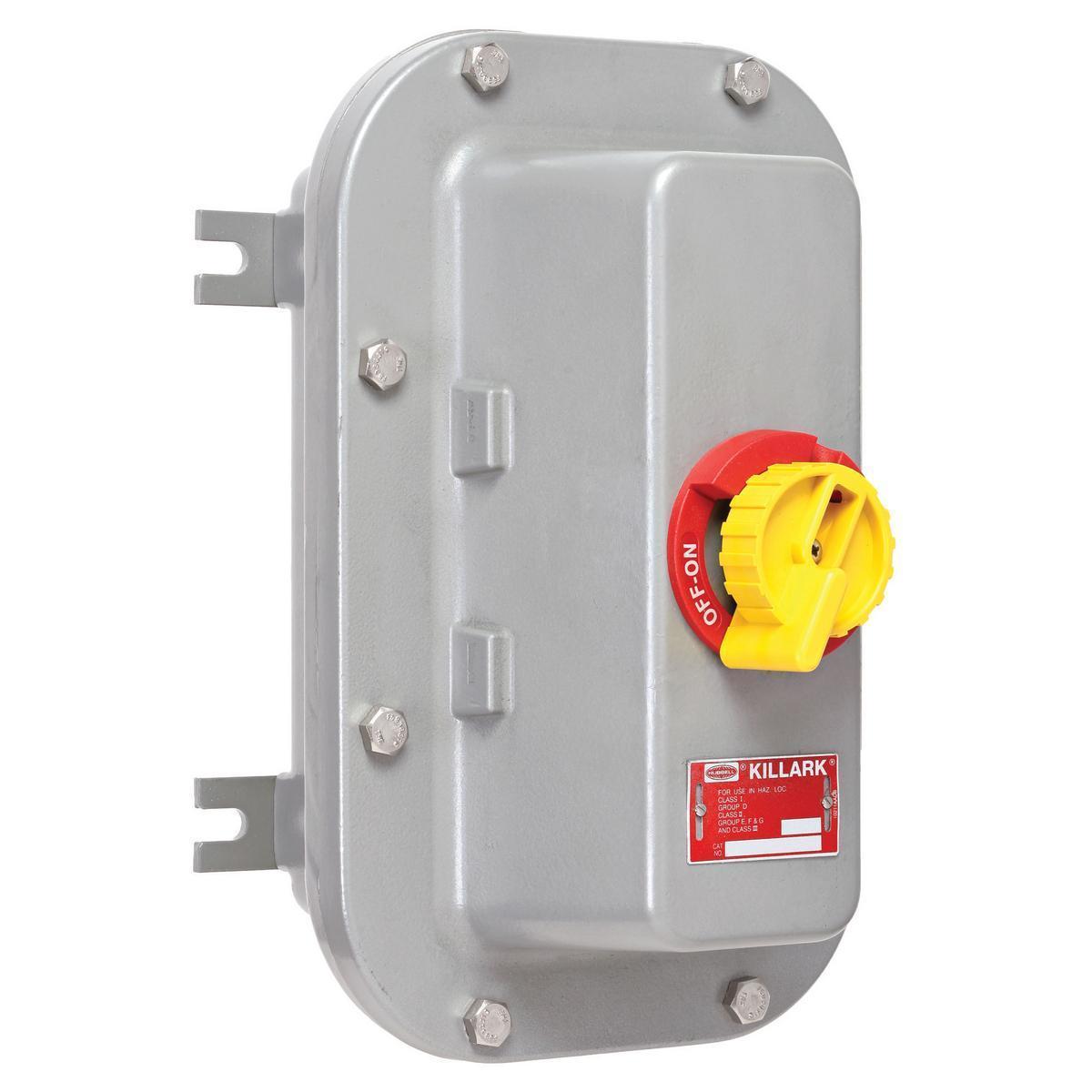

Hubbell HBLB7NFD26A Hazardous Location Disconnect Switch
Part Number # HBLB7NFD26A
SKU # 2252836
$3412.86 / Each
Typical price:$6475.00 / Each
Hubbell HBLB7NFD26A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLB7NFD26A |
| SKU #: | 2252836 |
| Actuator Type: | Lever, Lever Operated, Lockable Handle |
| Amperage Rating: | 60 A |
| Contact Form: | 2-Auxiallary/1NO, 2-Position |
| Dimensions: | 13.06 in L x 8.13 in W x 7.81 in H, 13.06 x 8.13 x 7.81 in |
| Enclosure Type: | NEMA 3/4/4X/7/9, NEMA 4X |
| Finish: | Epoxy/Polyester, Powder Polyester Painted |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 40, 40 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Temperature Rating (Degrees F): | -40 to 67, -40 to 67 deg C |
| Terminal Type: | Screw |
| Type: | 2-Position Complete Non-Fused Standard, Complete Non-Fused Standard, Non-Fusible |
| Color: | Gray |
| Country of origin: | US |
| Material: | Copper Free Aluminum, Metal |
| Mounting type: | Feet, Feet/Snap, Foot |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783585242606 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3412.86 / Each
Typical price:$6475.00 / Each
Quantity:
- Wiring Device-Kellems Circuit-Lock Hazardous Location Disconnect Switch, 2-Position Complete Non-Fused Standard, 600 V, 60 A, 40 hp, 60 Hz Frequency, 3 Pole, Lever Actuator, Foot Mounting, Screw Terminal, -40 to 67 deg C, 13.06 x 8.13 x 7.81 in, Copper Free Aluminum, Gray, Powder Polyester Painted
HBLB7NFD26A Application
Extra Heavy Duty Industrial and Indoors/Outdoors/Hazardous LocationsHBLB7NFD26A Item Features
- Lockable handle
- Large visible rotary handle with "On-Off" indicator
- Rotary handle style operating mechanism with lockout provision
HBLB7NFD26A Standards
UL File No. 746C/98|OSHA Compliant|CSA CertifiedSKU #2252836Part Number #HBLB7NFD26AUNSPSC39122205UPC00783585242606
