Part Number # HBLDS20
SKU # 2348015
Image Disclaimers Message
HBLDS20

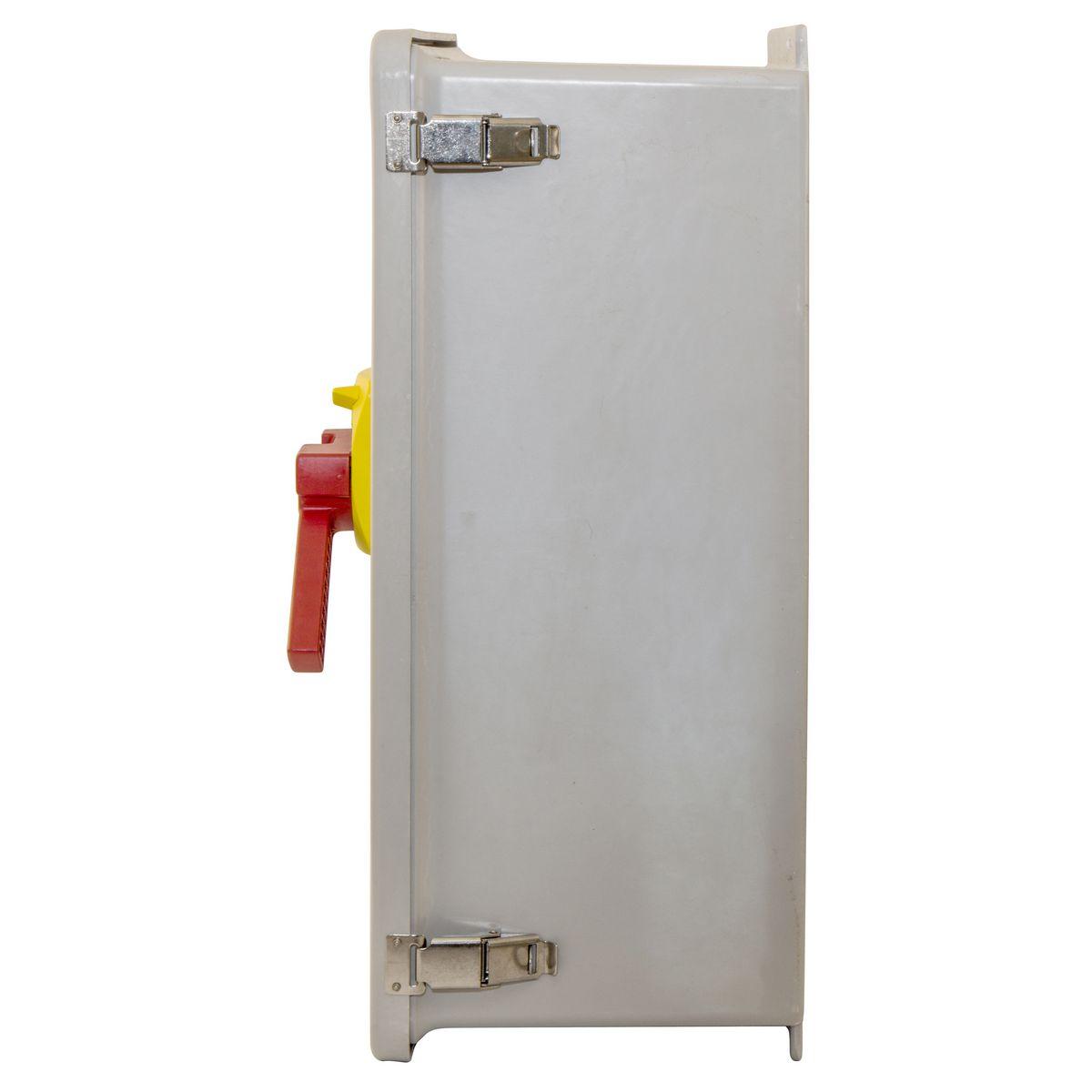

Hubbell HBLDS20 Wiring Device-Kellems Circuit-Lock Insight Disconnect Switch
Part Number # HBLDS20
SKU # 2348015
$4097.14 / Each
Typical price:$7773.00 / Each
Hubbell HBLDS20 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS20 |
| SKU #: | 2348015 |
| Actuator Type: | Rotary Handle |
| Amperage Rating: | 200 A |
| Dimensions: | 21.68 in L x 17.68 in W x 11.12 in H |
| Enclosure Type: | NEMA 4X/12 |
| Horsepower: | 15 hp, 200 hp |
| Number of Poles: | 3 |
| Phase: | 3 |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Screw |
| Type: | Corrosion-Resistant Enclosed Heavy Duty Labelless Non-Metallic Unfused Watertight |
| Country of origin: | CN, FR |
| Material: | Plastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121522 |
| UPC: | 00783585580241 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4097.14 / Each
Typical price:$7773.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Circuit-Lock inSIGHT Disconnect Switch, Corrosion-Resistant Enclosed Heavy Duty Labelless Non-Metallic Unfused Watertight, 600 V AC, 200 A, 15 hp, 200 hp, 3 ph, 3 Pole, 200 kA Short Circuit, Rotary Handle Actuator, NEMA 4X/12 Enclosure, Screw Terminal, 21.68 in L x 17.68 in W x 11.12 in H Dimensions, Plastic
HBLDS20 Item Features
- Lockout/Tagout Handle
- Highly Visible Red Rotary Handle
- Unable to Open the Cover when ON
- Cover Locked when Energized
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLDS20 Standards
OSHA 29 CFR Section 1910.147|UL 98|CSA-C22.2 No. 4-04SKU #2348015Part Number #HBLDS20UNSPSC39121522UPC00783585580241
