Brand: Hubbell

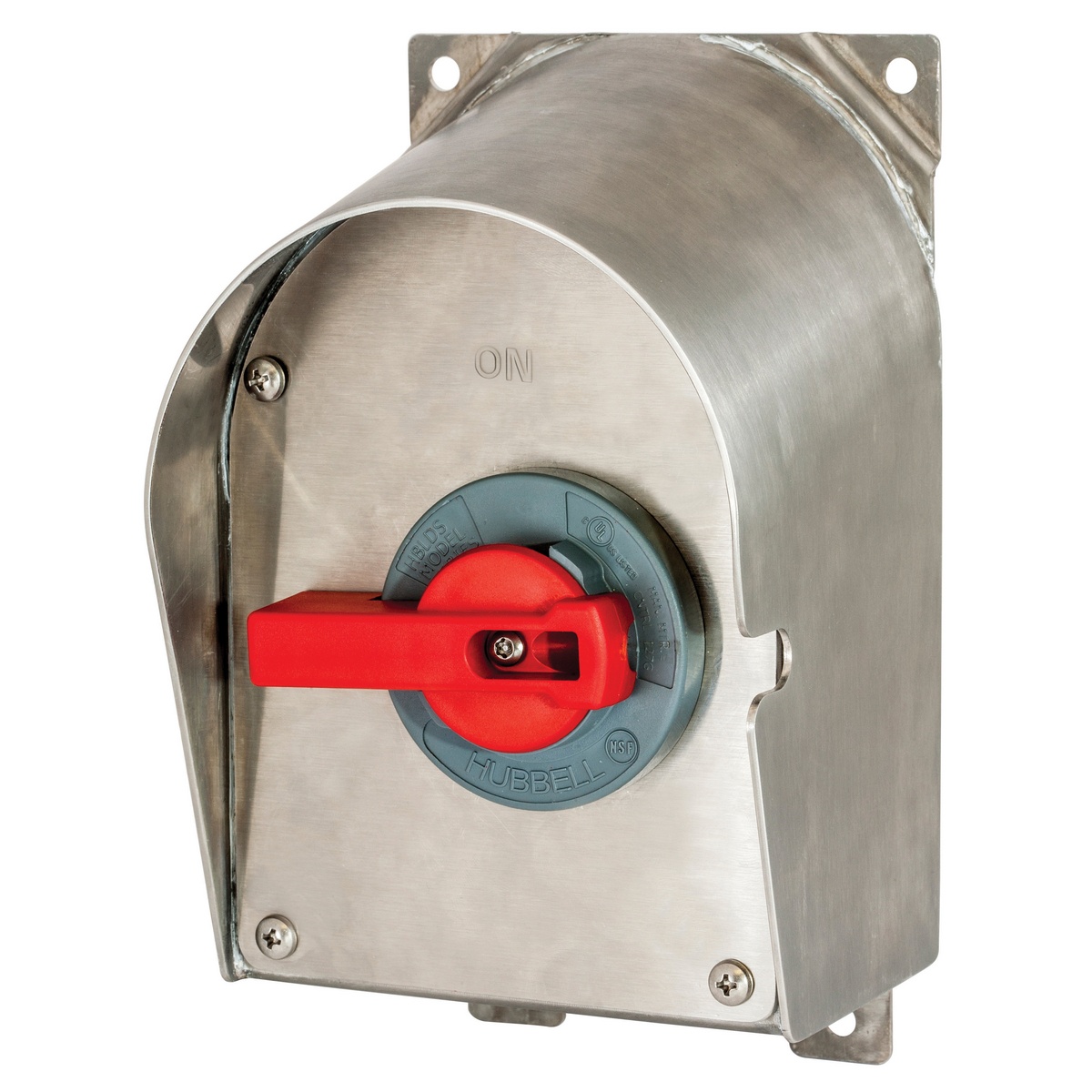

Hubbell HBLDS3SSRAC Disconnect Switch
Image Disclaimers Message
Brand: Hubbell
Hubbell HBLDS3SSRAC Disconnect Switch
Brand: Hubbell
Hubbell HBLDS3SSRAC Disconnect Switch
Part #:HBLDS3SSRAC
SKU #: 2323869
$825.71/EA
Key Features
Part #:HBLDS3SSRAC
SKU #: 2323869
Brand: Hubbell
Amperage Rating: 30, 30 A
Contact Form: 3PST
Dimensions: 8.6 in L x 5.41 in W x 4.92 in H
Enclosure Type: NEMA 4X, NEMA 4X/12/IP69K
Horsepower: 15, 15 hp
$825.71/EA
- 15 deg sloped and rounded top aids run-off by minimizing horizontal surfaces
- Labelless cover is embossed with on and off
- Compact footprints
- Equal or greater wiring space to the standard Hubbell disconnects (HBLDS style)
- High visibility red OSHA lockout/tag out handle is protected by a full shroud
- Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures
- Cover cannot be removed when switch is in the "ON" position
- Captive cover screws wont fall out
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Contact Form: 3PST
Dimensions: 8.6 in L x 5.41 in W x 4.92 in H
Enclosure Type: NEMA 4X, NEMA 4X/12/IP69K
Horsepower: 15, 15 hp
Number of Poles: 3
Number of Wires: 3
Phase: 3
Short Circuit Current Rating (kA): 65
Temperature Rating (Degrees F): -40 to 167
Terminal Type: Pressure Screw, Screw
Type: Labelless Non-Fusible Sloped Top, Sloped Top Standard Unfused
Voltage Rating: 600, 600 VAC
Material: Stainless Steel
Mounting type: Threaded
UNSPSC: 39121521
UPC: 00783585541556
Hubbell HBLDS3SSRAC Disconnect Switch
Hubbell Circuit-Lock Disconnect Switch, Labelless Non-Fusible Sloped Top, 600 VAC, 30 A, 15 hp, 3 Phase, 3 Poles, 3 Wires, 3PST, NEMA 4X, Screw Terminal, 8.6 in L x 5.41 in W x 4.92 in H, Stainless Steel
Additional Description: HUBW-HBLDS3SSRAC SLOPED DISC, 30A UNFUSED, 4X, SS, W/AC
Catalog Description: Disconnect Switches, Sloped Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With Aux Contact
