Brand: Hubbell

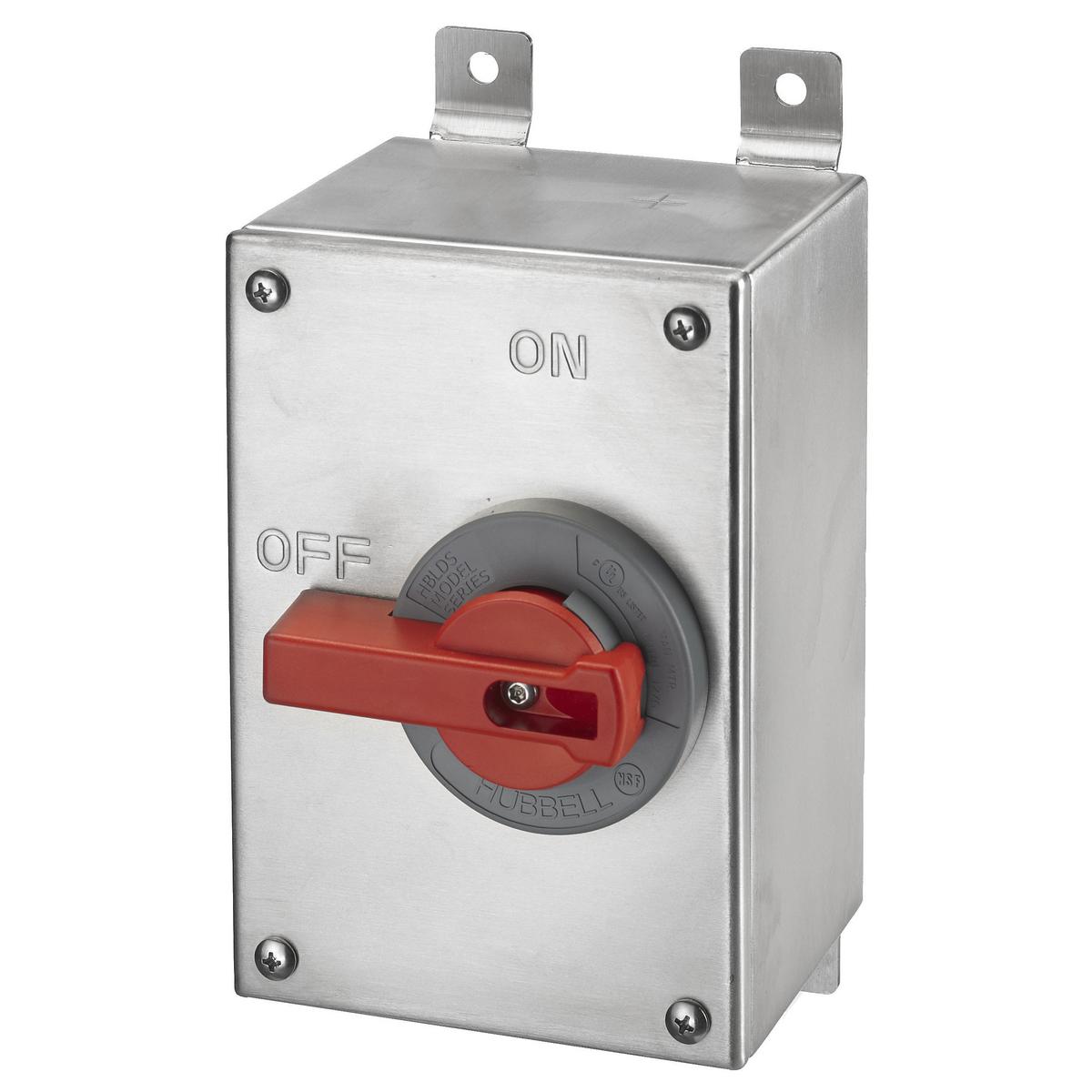

Hubbell HBLDS6SS Disconnect Switch
Image Disclaimers Message
Brand: Hubbell
Hubbell HBLDS6SS Disconnect Switch
Brand: Hubbell
Hubbell HBLDS6SS Disconnect Switch
Part #:HBLDS6SS
SKU #: 2322154
$858.57/EA
Key Features
Part #:HBLDS6SS
SKU #: 2322154
Brand: Hubbell
Actuator Type: Lever, Lever Operated
Amperage Rating: 60 A
Contact Form: 2-Position
Dimensions: 11.63 in L x 7.3 in W x 5.93 in H, 11.63 x 7.3 x 5.39 in
Enclosure Type: NEMA 4X, NEMA 4X/12/IP69K
$858.57/EA
- Formed in nonporous 304 stainless steel
- Fixed offset 1/4 in mounting feet meet NEC airspace requirements for metal enclosures
- Labelless markings on the cover
- Highly visible red handle which meets OSHA lockout/tagout capabilities
- Cover cannot be removed when switch is in the "ON" position
- Internal frame automatically bonds all grounds
- Molded in conduit opening and field installed hub
- Reversible interior accommodates top or bottom conduit opening
- Accepts up to 2 Auxiliary contacts
Specifications
Brand: Hubbell
Actuator Type: Lever, Lever Operated
Amperage Rating: 60 A
Contact Form: 2-Position
Dimensions: 11.63 in L x 7.3 in W x 5.93 in H, 11.63 x 7.3 x 5.39 in
Enclosure Type: NEMA 4X, NEMA 4X/12/IP69K
Frequency Rating: 60, 60 Hz
Horsepower: 50, 50 hp
Number of Poles: 3
Phase: 3, 3 ph
Short Circuit Current Rating (kA): 65, 65 kA
Temperature Rating (Degrees F): -40 to 67, -40 to 75 deg C
Terminal Type: Screw
Type: 2-Position Industrial Grade Square Top Standard Unfused, Industrial Grade Square Top Standard Unfused
Voltage Rating: 600, 600 V
Country of origin: PL
Material: Composite, Stainless Steel/Composite
Mounting type: Feet, Foot
Manufacturer Name: Hubbell
UNSPSC: 39122205
UPC: 00783585372563
Item FeaturesFor use with extra heavy duty industrial variable frequency drives applications
Item Features
Item FeaturesRoHS Compliant|cUL Listed|UL 746C|NSF Approved|CSA Certified
