HBLDS6SSRP

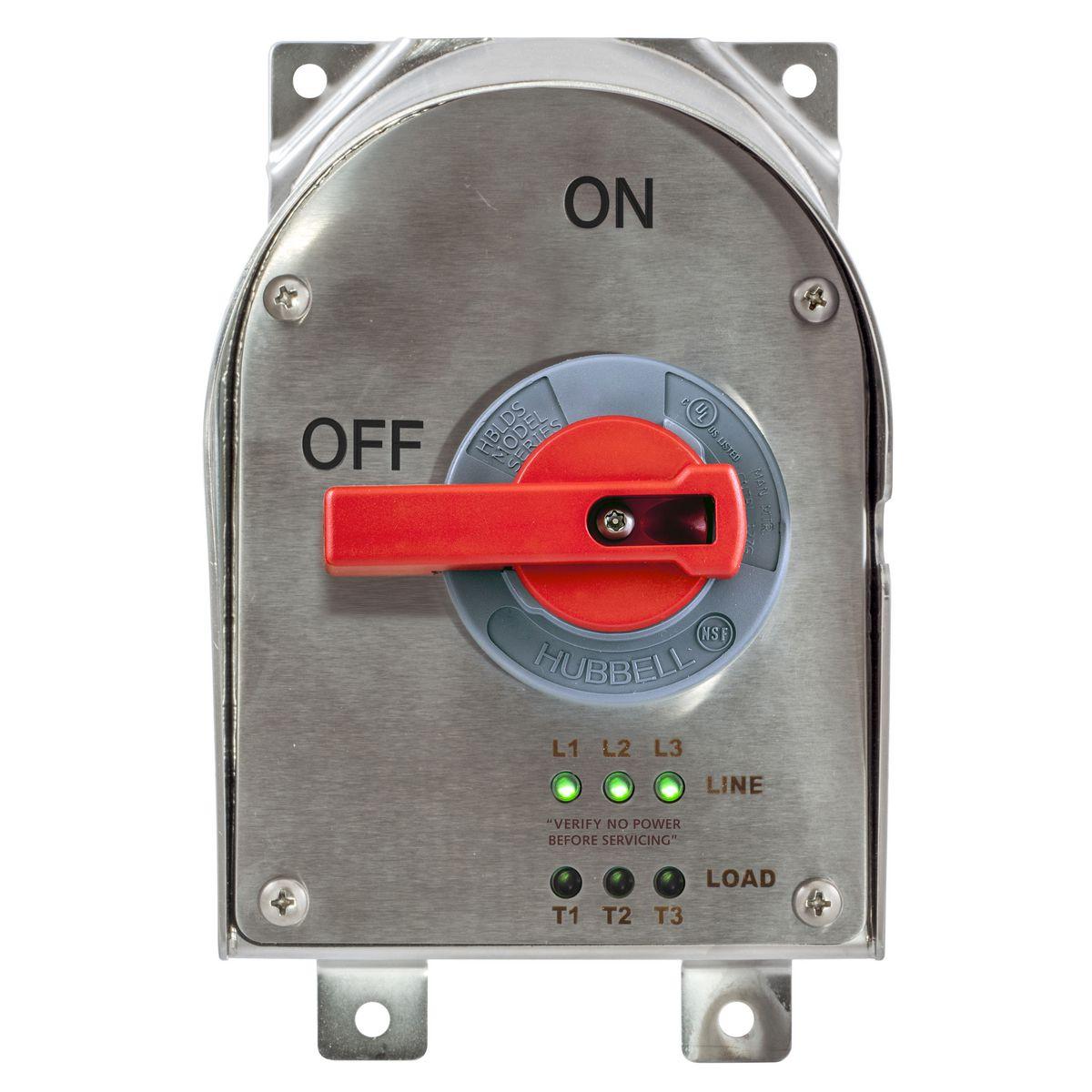

Hubbell HBLDS6SSRP Insight Circuit-Lock Disconnect Switch
Part Number # HBLDS6SSRP
SKU # 2389568
$1195.71 / Each
Typical price:$1824.00 / Each
Hubbell HBLDS6SSRP Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLDS6SSRP |
| SKU #: | 2389568 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Contact Form: | 2-Position |
| Dimensions: | 7.58 in W x 6.1 in D x 12.32 in H |
| Enclosure Type: | Stainless Steel |
| Finish: | Galvanized |
| Frequency Rating: | 60 Hz |
| Horsepower: | 50 hp |
| Number of Poles: | 3 |
| Phase: | 3, 3 ph |
| Short Circuit Current Rating (kA): | 65 kA |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | 2-Position Sloped Unfused |
| Country of origin: | PL, US |
| Material: | Stainless Steel |
| Mounting type: | External Fully Adjustable Feet/Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783585640303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1195.71 / Each
Typical price:$1824.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems inSIGHT Circuit-Lock Disconnect Switch, 2-Position Sloped Unfused, 600 V AC, 60 A, 50 hp, 3 ph, 60 Hz Frequency, 3 Pole, 65 kA Short Circuit, 2-Position Contact Form, Handle Actuator, Neoprene Insulation, Stainless Steel Enclosure, External Fully Adjustable Feet/Threaded Mounting, Screw Terminal, -40 to 75 deg C, 7.58 in W x 6.1 in D x 12.32 in H, Stainless Steel, Galvanized
HBLDS6SSRP Item Features
- Six highly visible integral phase identification LEDs for use on 3 Phase Y system
- Secondary confirmation of isolation of power
- 15 deg sloped top support hygenic design
HBLDS6SSRP Standards
NSF Certified|cULus Listed|UL File No. 746C|CSA Certified|UL 94 5VA/V-0 Flammability RatingSKU #2389568Part Number #HBLDS6SSRPUNSPSC39122205UPC00783585640303
