Part Number # HBLFRABBL
SKU # 2423487
HBLFRABBL

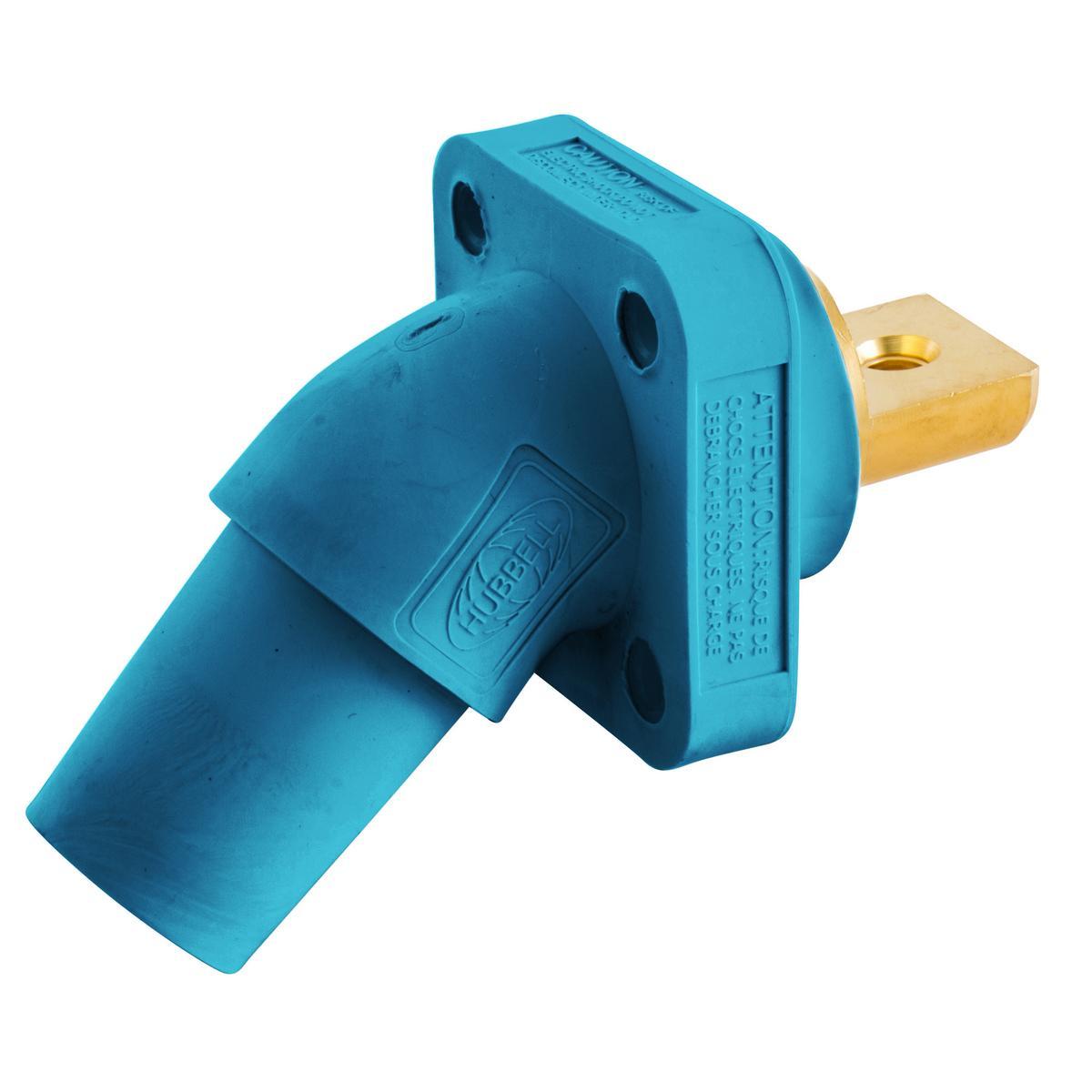

Hubbell HBLFRABBL Single Pole Receptacle
Part Number # HBLFRABBL
SKU # 2423487
Hubbell HBLFRABBL Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLFRABBL |
| SKU #: | 2423487 |
| Amperage Rating: | 300/400 A, 400 A |
| Dimensions: | 2.2 in W, 3.76 in W |
| NEMA Rating: | NEMA 3R/4X/12 |
| Series: | 16 Series |
| Specifications: | (4) #10-32 Mounting Hole, 5/16-18 UNC-2B Threaded Hole, Nylon Retaining Screw |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | Angled Cam Type, Angled Female |
| Wire Size: | 4 to 4/0 AWG |
| Connection type: | Bus Bar, Busbar/Female |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Thermoplastic Elastomer |
| Mounting type: | Panel, Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585511757 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLFRABBL Single Pole Receptacle
Brand: Hubbell
Part Number: HBLFRABBL
Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Angled Cam Type, Series: 16 Series, 600 VAC/VDC, 250 VDC, 300/400 A, 4 to 4/0 AWG Wire, Busbar/Female Connection, Brass Contact, Thermoplastic Elastomer Housing Material, NEMA 3R/4X/12 NEMA Rating, Threaded Mounting, Specifications: (4) #10-32 Mounting Hole, 5/16-18 UNC-2B Threaded Hole, Nylon Retaining Screw, -40 to 60 deg C, Blue, 2.2 in W Dimensions
Additional Description: HUBW-HBLFRABBL (N) SINGLEPOLE, 300/400A ANG REC, BUS, BL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Single Pole Products, 300/400A Series,Receptacle, Angled, Buss Connection, Blue
HBLFRABBL Application
Dry Locations, High Ampacity Connections and Indoor ApplicationsHBLFRABBL Standards
ANSI/NFPA 70|CSA 22.2. 0.17|cUL Listed|UL 498/1691|UL94 Flammability Rating|NECSKU #2423487Part Number #HBLFRABBLUNSPSC39121406UPC00783585511757
