Part Number # HBLFRASW
SKU # 2343633
Image Disclaimers Message
Brand: Hubbell
HBLFRASW

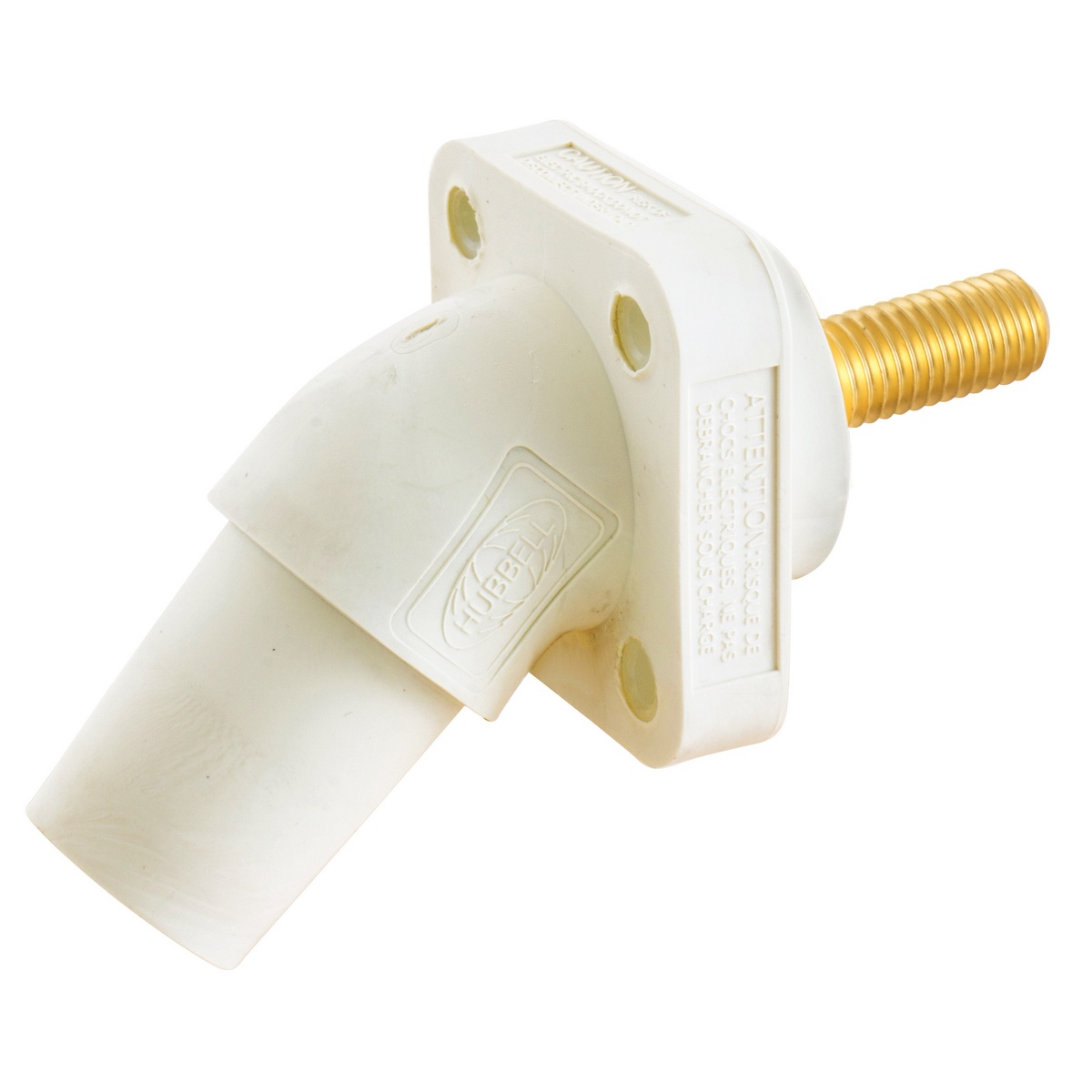

Hubbell HBLFRASW Single Pole Receptacle
Part Number # HBLFRASW
SKU # 2343633
$62.14 / Each
Typical price:$80.30 / Each
Hubbell HBLFRASW Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLFRASW |
| SKU #: | 2343633 |
| Amperage Rating: | 300/400, 300/400 A |
| Dimensions: | 2.2 in W, 3.76 in W |
| NEMA Rating: | NEMA 3R/4X/12 |
| Series: | 16 Series |
| Specifications: | (4) 0.2 in Mounting Hole, 1/2-13 UNC-2A Stud Termination, Nylon Retaining Screw, 1-Phase, 240000 W |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Type: | Angled Cam Type, Angled Female Standard |
| Wire Size: | 4 to 4/0, 4 to 4/0 AWG |
| Color: | White |
| Connection type: | Female/Threaded Stud, Screw Terminal/Threaded Stud |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Composite/TPE, Thermoplastic Elastomer |
| Mounting type: | Panel/Through Hole, Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585511641 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$62.14 / Each
Typical price:$80.30 / Each
Quantity:
- Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Angled Cam Type, Series: 16 Series, 600 VAC/VDC, 250 VDC, 300/400 A, 4 to 4/0 AWG Wire, Female/Threaded Stud Connection, Brass Contact, Thermoplastic Elastomer Housing Material, NEMA 3R/4X/12 NEMA Rating, Panel/Through Hole Mounting, Specifications: (4) 0.2 in Mounting Hole, 1/2-13 UNC-2A Stud Termination, Nylon Retaining Screw, -40 to 60 deg C, White, 2.2 in W Dimensions
HBLFRASW Specifications
- Non-metallic safety retaining screw
- Insulgrip® body design
HBLFRASW Standards
UL Listed|cULus Listed|NEC Certified|ANSI/NFPA 70|UL94 Flammability Rating|CSA 22.2. 0.17SKU #2343633Part Number #HBLFRASWUNSPSC39121406UPC00783585511641
