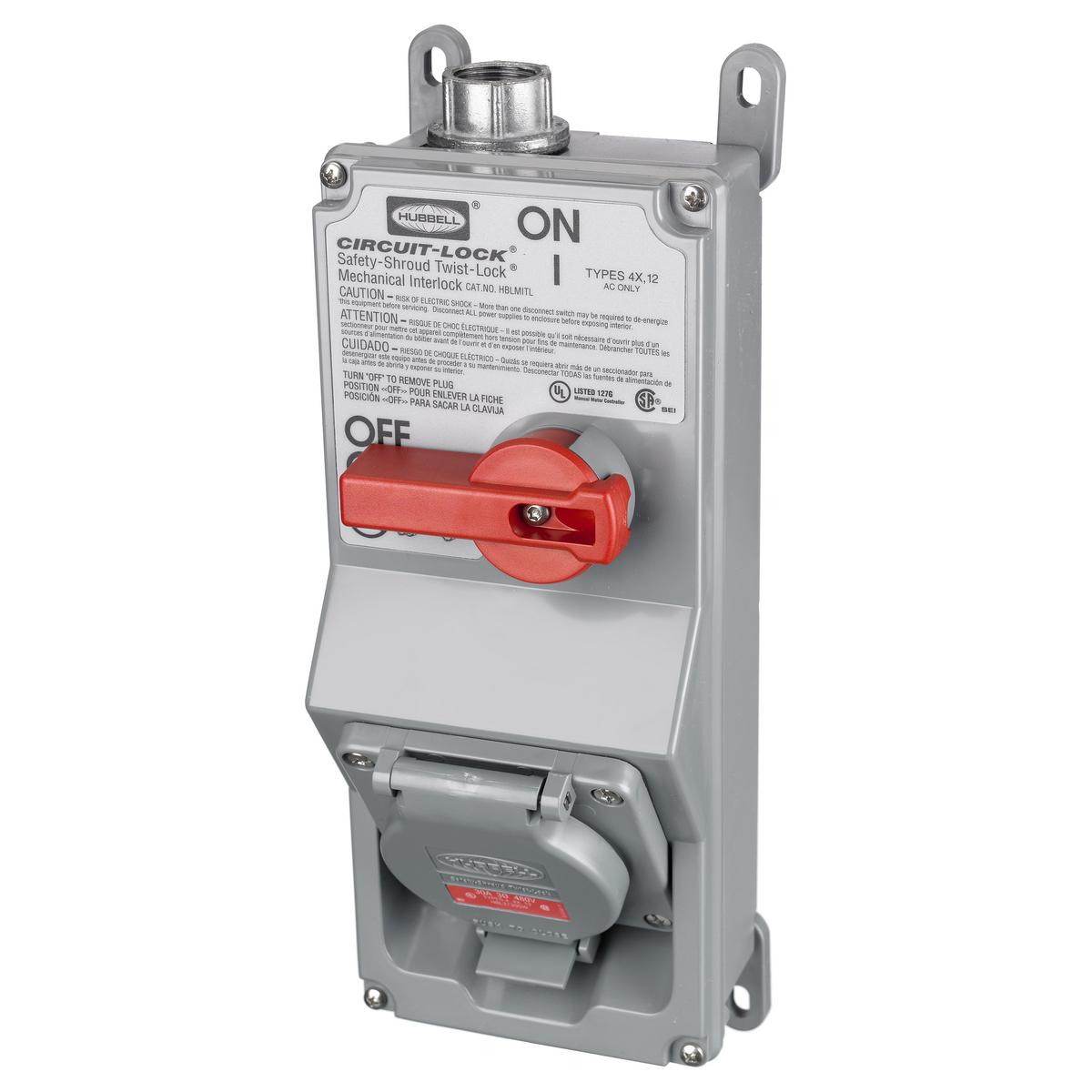

Hubbell HBLMITL Mechanical Interlock
Part Number # HBLMITL
SKU # 18739
$476.71 / Each
Typical price:$774.00 / Each
Hubbell HBLMITL Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLMITL |
| SKU #: | 18739 |
| Amperage Rating: | 30 |
| Dimensions: | 11.44 in L x 4.88 in W x 4.19 in H |
| Frequency Rating: | 60 |
| Mounting: | Surface |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -40 to 67 |
| Terminal Type: | Screw |
| Type: | 2-Position Non-Metallic Standard Switched Unfused, 3-Pole 2-Position Non-Metallic Standard Switched Unfused |
| Color: | Gray |
| Country of origin: | PL |
| Depth: | 4.88 in |
| Height: | 4.19 in |
| Material: | Composite |
| Width: | 11.44 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783585176802 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$476.71 / Each
Typical price:$774.00 / Each
Quantity:
Hubbell HBLMITL Mechanical Interlock
Brand: Hubbell
Part Number: HBLMITL
Wiring Device-Kellems Circuit-Lock Safety-Shroud Mechanical Interlock, 3-Pole 2-Position Non-Metallic Standard Switched Unfused, 4.19 in Height, 11.44 in Width, 4.88 in Depth, Composite, Gray, Surface Mounting
Additional Description: HUBW-HBLMITL MECH INTRLCK SWITCHED LKG ENC ENCLOSURE
Catalog Description: Heavy Duty Products, Switched Twist-Lock®, Industrial Grade, Accessories, Mechanical Interlock, 30A 600V AC, Single Conductor, Terminal Screws, Gray
HBLMITL Application
Extra Heavy Duty Industrial ApplicationsHBLMITL Item Features
- Virtually Eliminates Possible Circuit Making or Breaking While Under Load
- Compact, Corrosion Resistant Type 4X Non-metallic Enclosure
- Molded Valox Resists Abuse, Corrosion and Enhances Safety
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6357119734112
HBLMITL Standards
RoHS Compliant|UL 746C|CSA Certified|UL94 V-0 Flammability RatingSKU #18739Part Number #HBLMITLUNSPSC39122205UPC00783585176802
