HBLMRBN

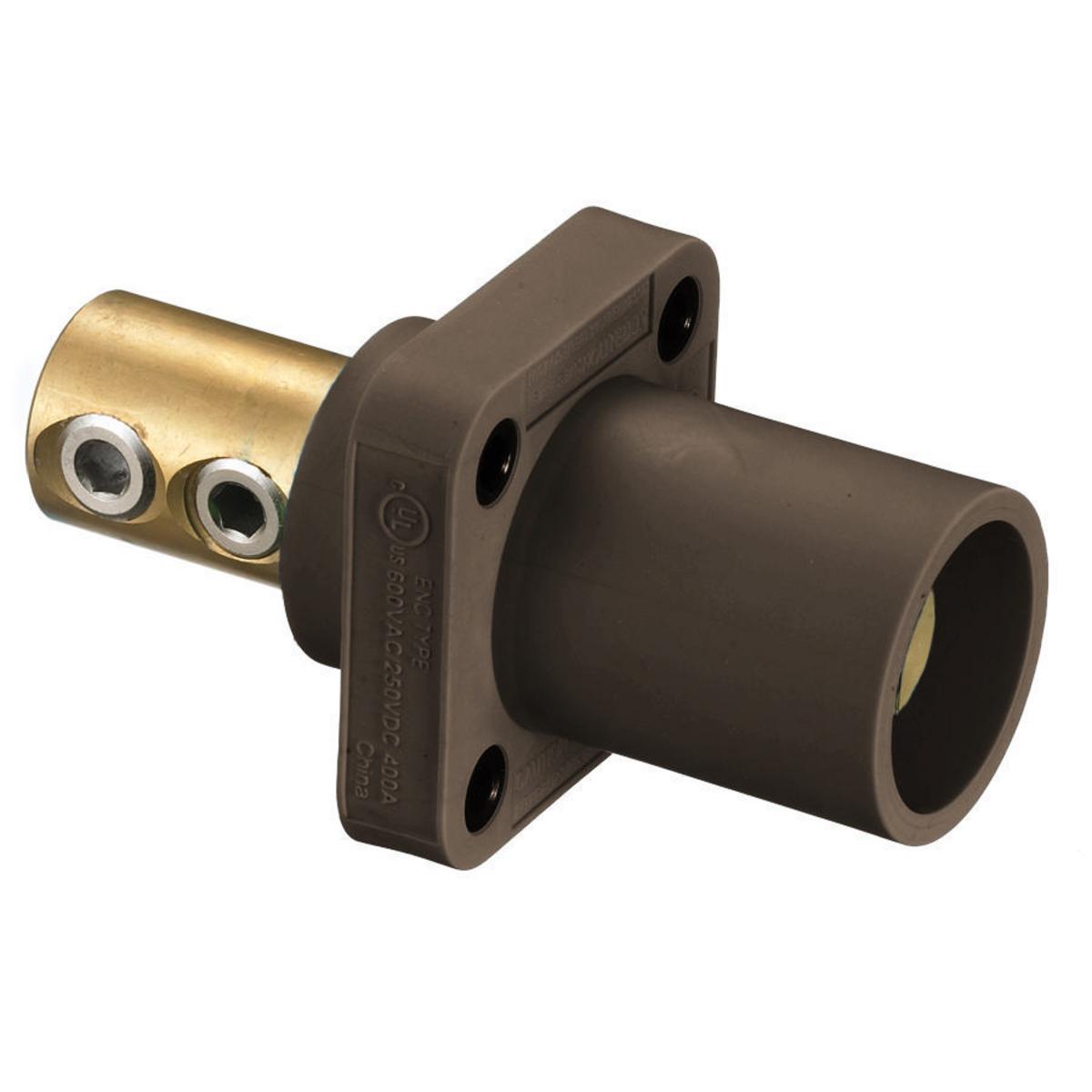

Hubbell HBLMRBN Single Pole Receptacle
Part Number # HBLMRBN
SKU # 2418233
$55.07 / Each
Typical price:$105.00 / Each
Hubbell HBLMRBN Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLMRBN |
| SKU #: | 2418233 |
| Amperage Rating: | 400 A |
| Dimensions: | 2.2 in H x 2.2 in W x 4.1 in D, 2.2 in W x 4.1 in D x 2.2 in H, 4.1 in H x 2.2 in W x 2.2 in D |
| NEMA Rating: | NEMA 3R/4X/12 |
| Series: | 16 Series |
| Specifications: | (2) 7/32 Socket Head Set Screw, 1 ph, 1-Pin, 24000 W, (2) 7/32 Socket Head Set Screw, 1-Conductor, 1-Phase, 1-Pin, 240000 W |
| Type: | 1-Pole 1-Flanged Male, Cam Type Flanged Heavy Duty Industrial Grade Single Standard, Heavy Duty Male |
| Wire Size: | 4 to 4/0 AWG |
| Color: | Brown |
| Connection type: | Male/Terminal Screw/Set Screw, Screw Terminal, Threaded Double Set Screw |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Thermoplastic, Thermoplastic Elastomer |
| Mounting type: | Panel, Panel/Threaded, Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585112954 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$55.07 / Each
Typical price:$105.00 / Each
Quantity:
- Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Cam Type Flanged Heavy Duty Industrial Grade Single Standard, Series: 16 Series, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Male/Terminal Screw/Set Screw, Brass Contact, Thermoplastic Elastomer Housing, NEMA 3R/4X/12, Panel/Threaded Mount, 1-Conductor, 1-Phase, 1-Pin, 240000 W, Brown, 2.2 in H x 2.2 in W x 4.1 in D
HBLMRBN Application
For supplying temporary electrical power distribution for convention centers, entertainment, theme parks, carnival equipment, concerts, movie making, indoor dry and high ampacity connections applicationsHBLMRBN Item Features
- Non-metallic safety retaining screw
- Insulgrip body design
HBLMRBN Standards
RoHS Compliant|UL 498|UL 1691|cULus Listed|ANSI/NFPA 70|CSA 22.2 File No. 0.17|NEC Certified|UL 94 HB Flammability RatingSKU #2418233Part Number #HBLMRBNUNSPSC39121406UPC00783585112954
