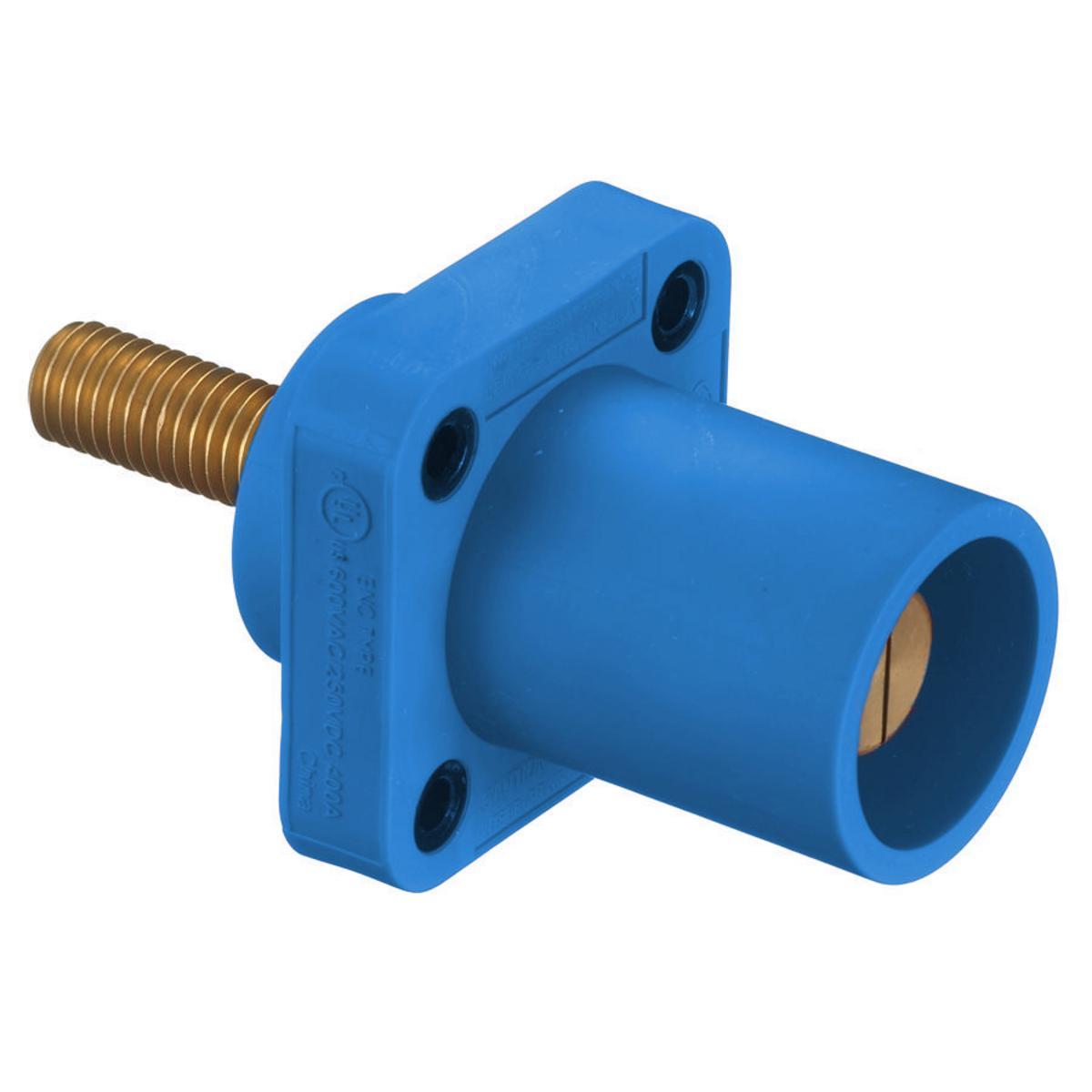

Hubbell HBLMRSBL Single Pole Receptacle
Part Number # HBLMRSBL
SKU # 2240195
$51.07 / Each
Typical price:$96.90 / Each
Hubbell HBLMRSBL Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLMRSBL |
| SKU #: | 2240195 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 2.2 in H x 2.2 in W x 4.15 in D, 4.15 in L x 2.2 in W x 2.2 in H |
| NEMA Rating: | 3R/4X/12, NEMA 3R/4X/12 |
| Series: | 16 Series |
| Specifications: | 1 ph, 240000 W, (4) 0.2 in Mounting Hole, 1-Conductor, 1-Conductor, 1-Phase, 1-Pin, 240000 W, 1-Phase, 240000 W, (4) 0.2 in Mounting Hole, 1-Conductor |
| Type: | 1-Pole Flanged Heavy Duty Industrial Grade Male Standard, Cam Type Flanged Heavy Duty Industrial Grade Single Standard, Flanged Heavy Duty Industrial Grade Male Standard |
| Wire Size: | 4 to 4/0, 4 to 4/0 AWG |
| Color: | Blue |
| Connection type: | Male/Terminal Screw/Threaded Stud, Screw, Screw Terminal |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Composite/Thermoplastic, Thermoplastic, Thermoplastic Elastomer |
| Mounting type: | Panel/Threaded, Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585113005 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$51.07 / Each
Typical price:$96.90 / Each
Quantity:
- Hubbell Wiring Device-Kellems Single Pole Receptacle, 1-Pole Flanged Heavy Duty Industrial Grade Male Standard, Series: 16 Series, 600 V AC/250 V DC, 400 A, 4 to 4/0 AWG Wire, Screw Terminal Connection, Brass Contact, Thermoplastic Housing Material, 3R/4X/12 NEMA Rating, Threaded Mounting, Specifications: 1 ph, 240000 W, (4) 0.2 in Mounting Hole, 1-Conductor, Blue, 4.15 in L x 2.2 in W x 2.2 in H
HBLMRSBL Application
High Ampacity Connections, Stage, Studio Power, Portable Power Distribution, Lighting, On-Location Filming, Carnival, Theme Park, Temporary Power Applications and Indoor Dry EnvironmentHBLMRSBL Item Features
- Insulgrip body design
- Non-metallic safety retaining screw
- Turn and lock symbol indicates devices are properly connected
- Highly conductive brass contacts improve performance and extend life
HBLMRSBL Standards
RoHS Compliant|UL 498|UL 1691|cULus Listed|CSA 22.2. 0.17|ANSI/NFPA 70|NEC|UL HB|UL94 Flammability RatingSKU #2240195Part Number #HBLMRSBLUNSPSC39121406UPC00783585113005
