Part Number # HBLMRSCGN
SKU # 2233373
HBLMRSCGN

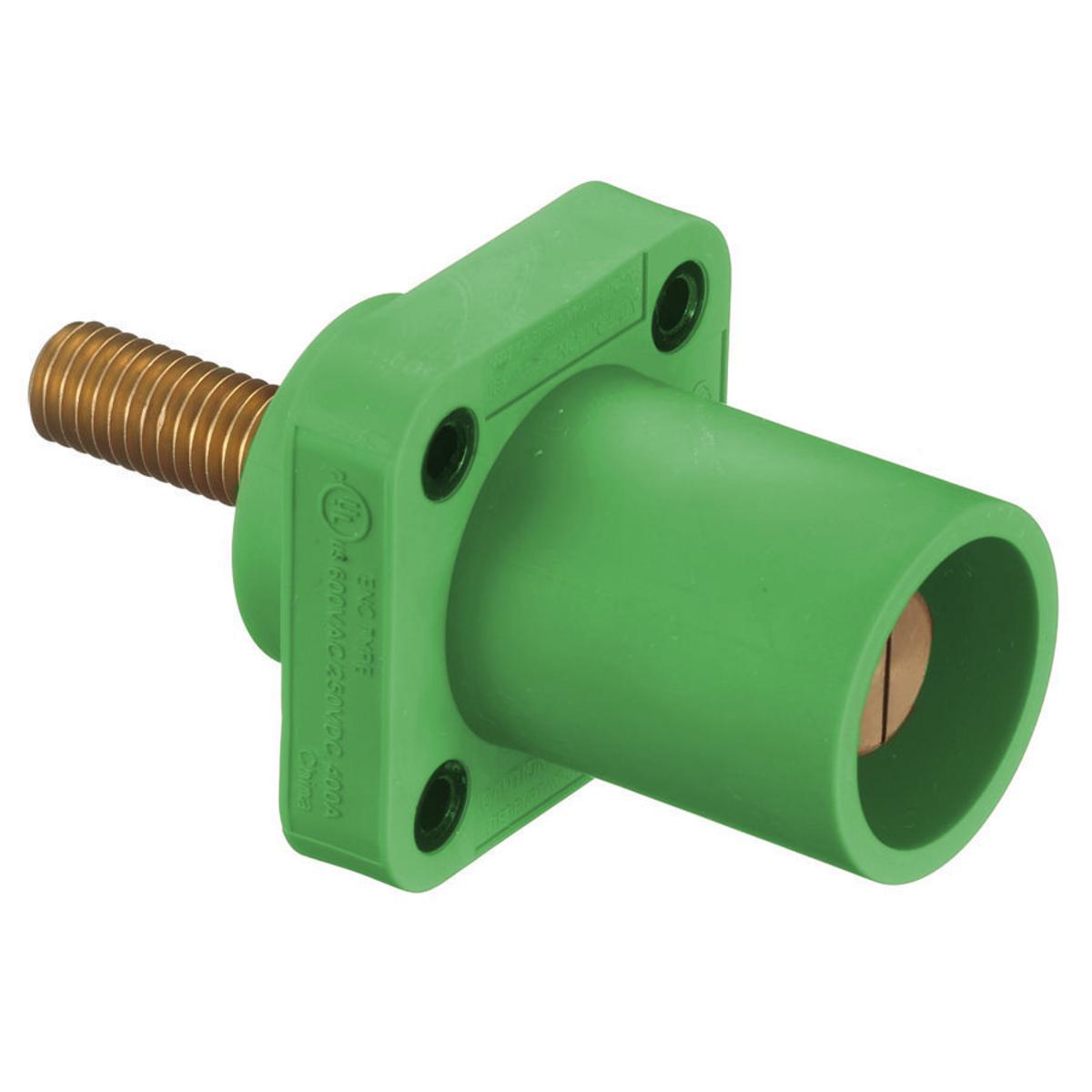

Hubbell HBLMRSCGN Single Pole Receptacle
Part Number # HBLMRSCGN
SKU # 2233373
Hubbell HBLMRSCGN Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLMRSCGN |
| SKU #: | 2233373 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 2.2 in H x 2.2 in W x 3.71 in D, 3.67 in L x 2.2 in W x 2.2 in H |
| NEMA Rating: | NEMA 3R/4X/12 |
| Series: | 16 Series |
| Specifications: | 1-Conductor, 1-Phase, 1-Pin, 240000 W, 1-Phase, 1-Pin, 1-Flange, 1-Conductor, 240000 W, 1/2-13 UNC-2A Threaded Stud |
| Temperature Rating (Degrees F): | 90 |
| Type: | Cam Type Flanged Heavy Duty Industrial Grade Single Standard, Heavy Duty Industrial Grade Male Standard |
| Wire Size: | 4 to 4/0, 4 to 4/0 AWG |
| Connection type: | Male/Terminal Screw, Screw Terminal/Threaded Stud |
| Contact material: | Brass |
| Country of origin: | CN |
| Housing material: | Composite/Thermoplastic Elastomer, Thermoplastic Elastomer |
| Mounting type: | Panel/Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585093543 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLMRSCGN Single Pole Receptacle
Brand: Hubbell
Part Number: HBLMRSCGN
Bryant Electric Wiring Device-Kellems Single Pole Receptacle, Cam Type Flanged Heavy Duty Industrial Grade Single Standard, Series: 16 Series, 600/250 VAC/VDC, 400 A, 4 to 4/0 AWG Wire, Male/Terminal Screw, Brass Contact, Thermoplastic Elastomer Housing, NEMA 3R/4X/12, Panel/Threaded Mount, 1-Conductor, 1-Phase, 1-Pin, 240000 W, Green, 2.2 in H x 2.2 in W x 3.71 in D
Additional Description: HUBW-HBLMRSCGN SINGLEPOLE,300/400A MALE STUD RECEP,GN,T RECEP, GN
Catalog Description: Heavy Duty Products, Single Pole Devices, Industrial Grade, Male Receptacle, 300/400A 600V AC/DC, Single Conductor, Threaded Mounting Holes, Stud Termination, Green
HBLMRSCGN Application
For supplying temporary electrical power distribution for convention centers, entertainment, theme parks, carnival equipment, concerts, movie making, indoor dry and high ampacity connections applicationsHBLMRSCGN Item Features
- Non-metallic safety retaining screw
- Ergonomic body design
HBLMRSCGN Standards
RoHS Compliant|UL 498|UL 1691|cULus Listed|ANSI/NFPA 70|CSA 22.2 File No. 0.17|NEC Certified|UL 94 HB Flammability RatingSKU #2233373Part Number #HBLMRSCGNUNSPSC39121406UPC00783585093543
Image provided may only be a representation of final product and may include optional equipment
