Part Number # HBLS430C7W
SKU # 2305123

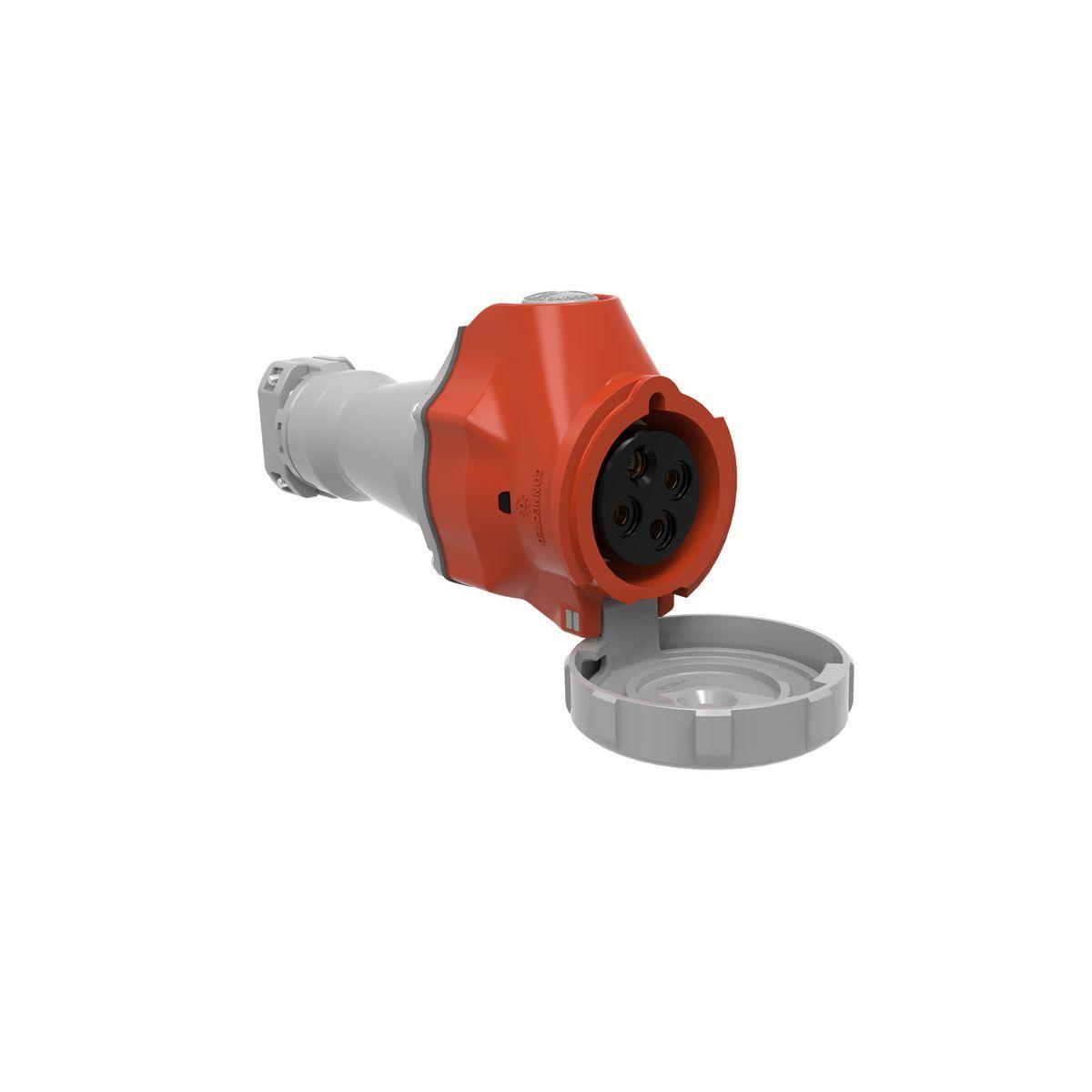

Image provided may only be a representation of
final product and may include optional equipment
HBLS430C7W
Hubbell HBLS430C7W Wiring Device-Kellems Advantage Pin And Sleeve Connector
Part Number # HBLS430C7W
SKU # 2305123
Hubbell HBLS430C7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLS430C7W |
| SKU #: | 2305123 |
| Amperage Rating: | 30 A |
| Dimensions: | 9.9 in L x 4.5 in W |
| Enclosure: | IP67 |
| Horsepower: | 20 hp |
| NEMA Rating: | 4X |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | Advantage |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Pressure Screw |
| Type: | 3-Phase Female Heavy Duty Non-Metallic Standard Switched Watertight Cord Mount |
| Country of origin: | PR, US |
| Material: | Brass |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585550572 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLS430C7W Wiring Device-Kellems Advantage Pin And Sleeve Connector
Brand: Hubbell
Part Number: HBLS430C7W
Wiring Device-Kellems Advantage Pin and Sleeve Connector, 3-Phase Female Heavy Duty Non-Metallic Standard Switched Watertight Cord Mount, 480 VAC, 30 A, 20 hp, 3 Pole, 4 Wires, 4X NEMA Rating, IP67 Enclosure, Pressure Screw Terminal, Brass, Red, 9.9 in L x 4.5 in W
Additional Description: HUBW-HBLS430C7W PS, IEC, SW CONN, 3P4W, 30A 3P 480V, WT
Catalog Description: Heavy Duty Products, Pin and Sleeve Devices, Switched, IEC 309, Female Connector, 30A 3-Phase 480V AC, 3- Pole 4-Wire Grounding, NEMA 4X/IP67, Watertight
HBLS430C7W Application
Industrial and Commercial ApplicationsHBLS430C7W Item Features
- Approved as a diconnecting means for motor circuits and branch circuits
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- https://youtu.be/1UAS5Og-mD4
HBLS430C7W Standards
UL 498|CSA Certified|IEC 309 File No. 60309|RoHS Compliant|UL/cULus Listed|CSA C22.2 No. 0.17|UL94 HB Flammability RatingSKU #2305123Part Number #HBLS430C7WUNSPSC39121402UPC00783585550572
