Part Number # HBLS530C6W
SKU # 2303610
Image Disclaimers Message
HBLS530C6W

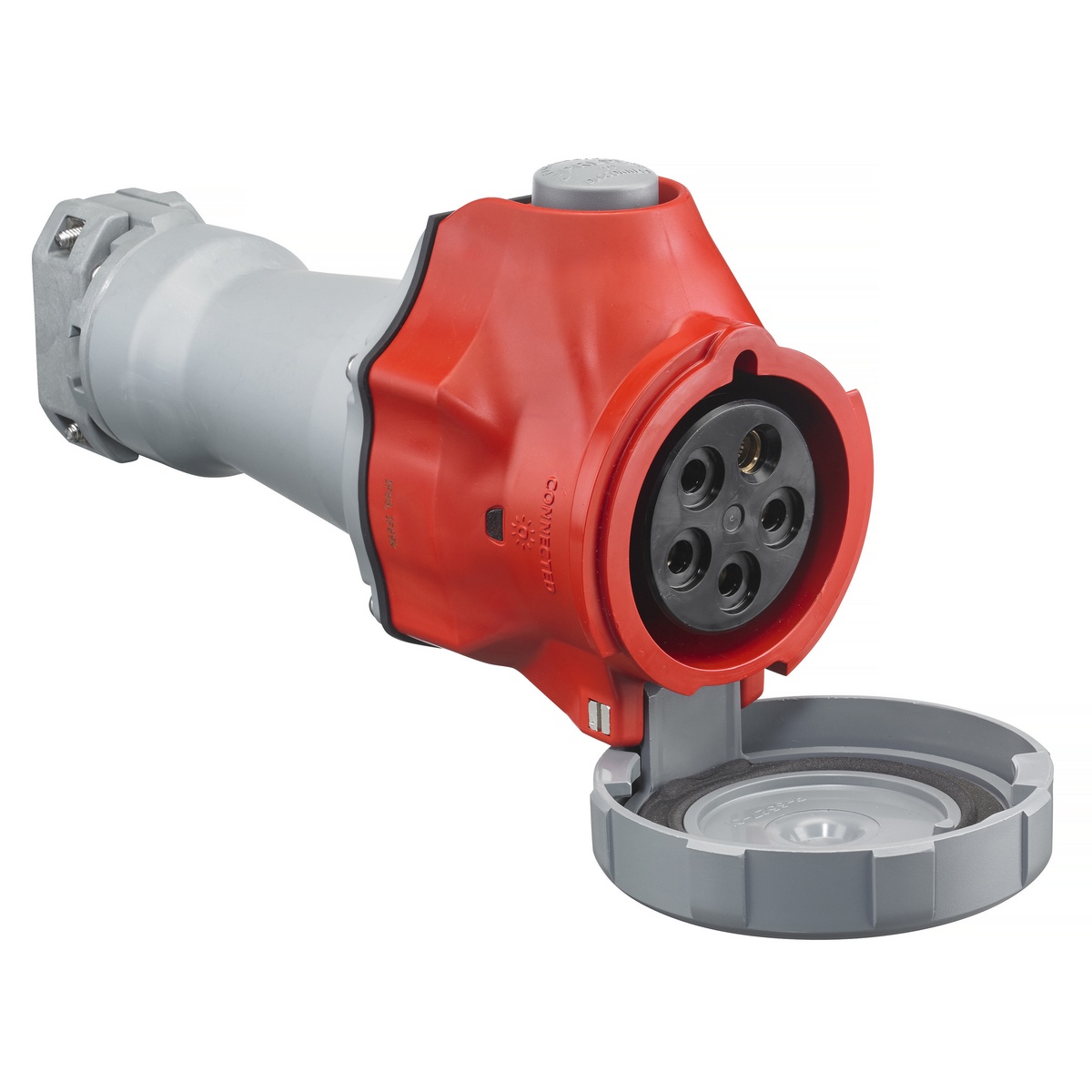

Hubbell HBLS530C6W Pin and Sleeve Connector
Part Number # HBLS530C6W
SKU # 2303610
$672.86 / Each
Typical price:$1277.00 / Each
Hubbell HBLS530C6W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLS530C6W |
| SKU #: | 2303610 |
| Amperage Rating: | 30/32, 30/32 A |
| Dimensions: | 12.22 in H x 5.17 in W, 5.17 in W x 12.22 in H |
| Enclosure: | IP67 |
| Horsepower: | 7-1/2, 7.5 hp |
| NEMA Rating: | 4X, NEMA 4X |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Series: | Advantage |
| Type: | Female Heavy Duty Switched |
| Color: | Red |
| Country of origin: | PR |
| Material: | Polybutylene Terephthalate |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 00783585550510 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$672.86 / Each
Typical price:$1277.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Advantage Pin and Sleeve Connector, Female Heavy Duty Switched, 200 to 346/240 to 415 V AC, 30/32 A, 7.5 hp, 4 Pole, 5 Wires, 4X NEMA Rating, Industrial Grade, IP67 Enclosure, Polybutylene Terephthalate, Red, 5.17 in W x 12.22 in H
HBLS530C6W Item Features
- Approved as a diconnecting means for motor circuits and branch circuits
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- https://youtu.be/1UAS5Og-mD4
HBLS530C6W Standards
UL File No. 1682|2682|NEC 430.102(B)|IEC 60309-1|60309-2|RoHS CompliantSKU #2303610Part Number #HBLS530C6WUNSPSC39121402UPC00783585550510
