Brand: Hubbell

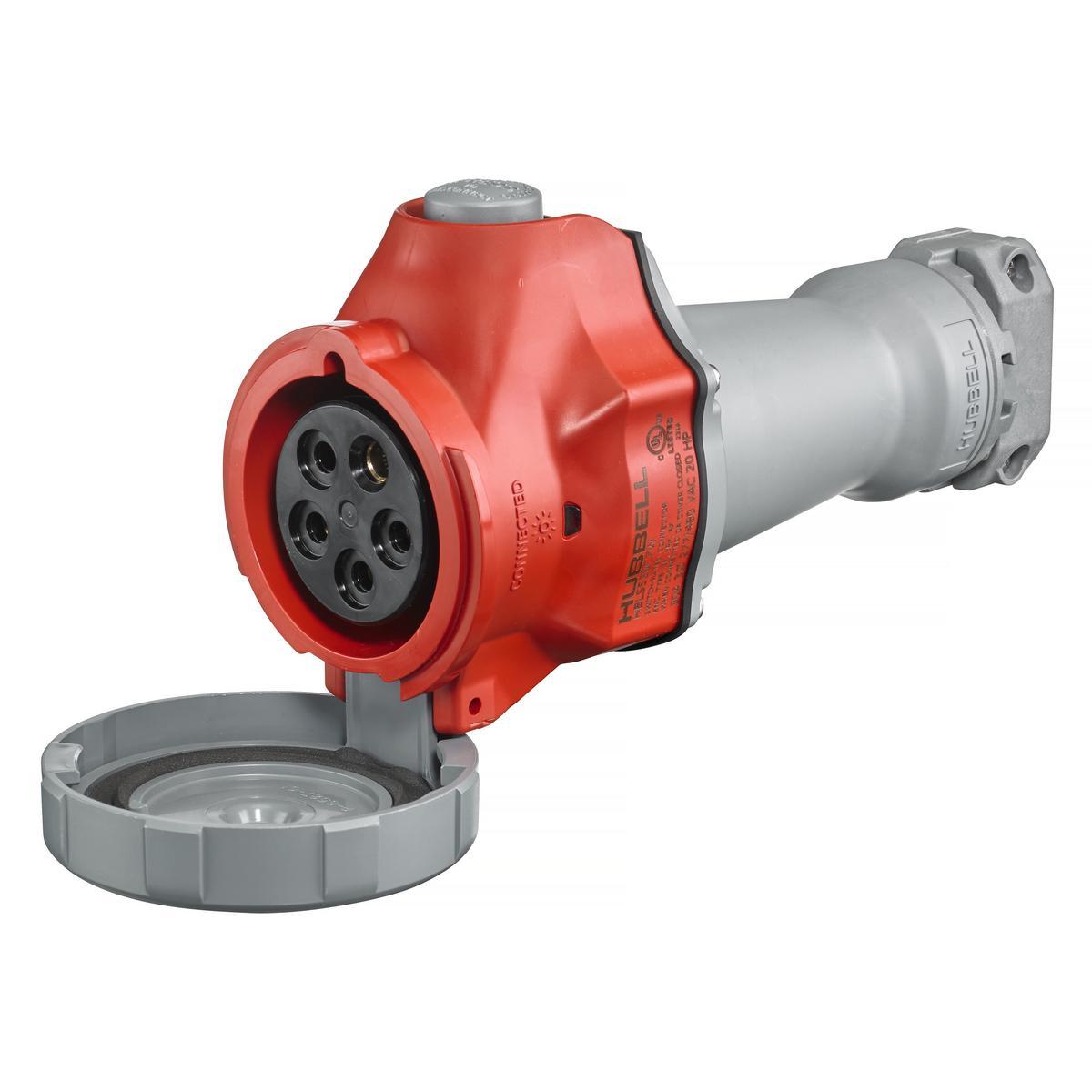

Hubbell HBLS530C7W Pin and Sleeve Connector
Image Disclaimers Message
Brand: Hubbell
Hubbell HBLS530C7W Pin and Sleeve Connector
Brand: Hubbell
Hubbell HBLS530C7W Pin and Sleeve Connector
Part #:HBLS530C7W
SKU #: 2324381
$658.57/EA
Key Features
Part #:HBLS530C7W
SKU #: 2324381
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 12.22 in H x 5.17 in W, 5.17 in W x 12.22 in H
Enclosure: IP67
Horsepower: 7-1/2, 7.5, 7.5 hp
NEMA Rating: 4X, NEMA 4X
$658.57/EA
- Rugged 1-piece housing, thick wall construction protects internal components, eliminates joints preventing infiltration of contaminants
- IEC pin and sleeve devices are color coded by voltage for easy identification
- Ease of use
- Spring loaded disconnect button oversized for easy actuation with gloved hands
- Heavy duty external cord grips for maximum cord retention
- Spring loaded cover to the open position, reminding users that the cover must be secured to ensure maximum ingress protection
- Approved as a diconnecting means for motor circuits and branch circuits
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- https://youtu.be/1UAS5Og-mD4
Specifications
Brand: Hubbell
Amperage Rating: 30, 30 A
Dimensions: 12.22 in H x 5.17 in W, 5.17 in W x 12.22 in H
Enclosure: IP67
Horsepower: 7-1/2, 7.5, 7.5 hp
NEMA Rating: 4X, NEMA 4X
Number of Poles: 4
Number of Wires: 5
Series: Advantage
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Pressure Screw
Type: 3-Phase Female Heavy Duty Non-Metallic Standard Switched Watertight, 3-Phase Female Heavy Duty Non-Metallic Standard Switched Watertight Cord Mount
Voltage Rating: 277/480, 277/480 VAC
Color: Red
Country of origin: PR, US
Material: Brass, Polyethylene Terephthalate
Manufacturer Name: Hubbell
UNSPSC: 39121402
UPC: 00783585550527
Item FeaturesIndustrial and Commercial Applications
Item Features
Item FeaturesUL 498 File No. 1682/2682|NEC 430.102(B)|IEC 309/60309-1/60309-2|RoHS Compliant|UL/cULus Listed|CSA C22.2 No. 0.17|UL94 HB Flammability Rating
