Part Number # HBLS560R7W
SKU # 2368378
Image provided may only be a representation of
final product and may include optional equipment
HBLS560R7W

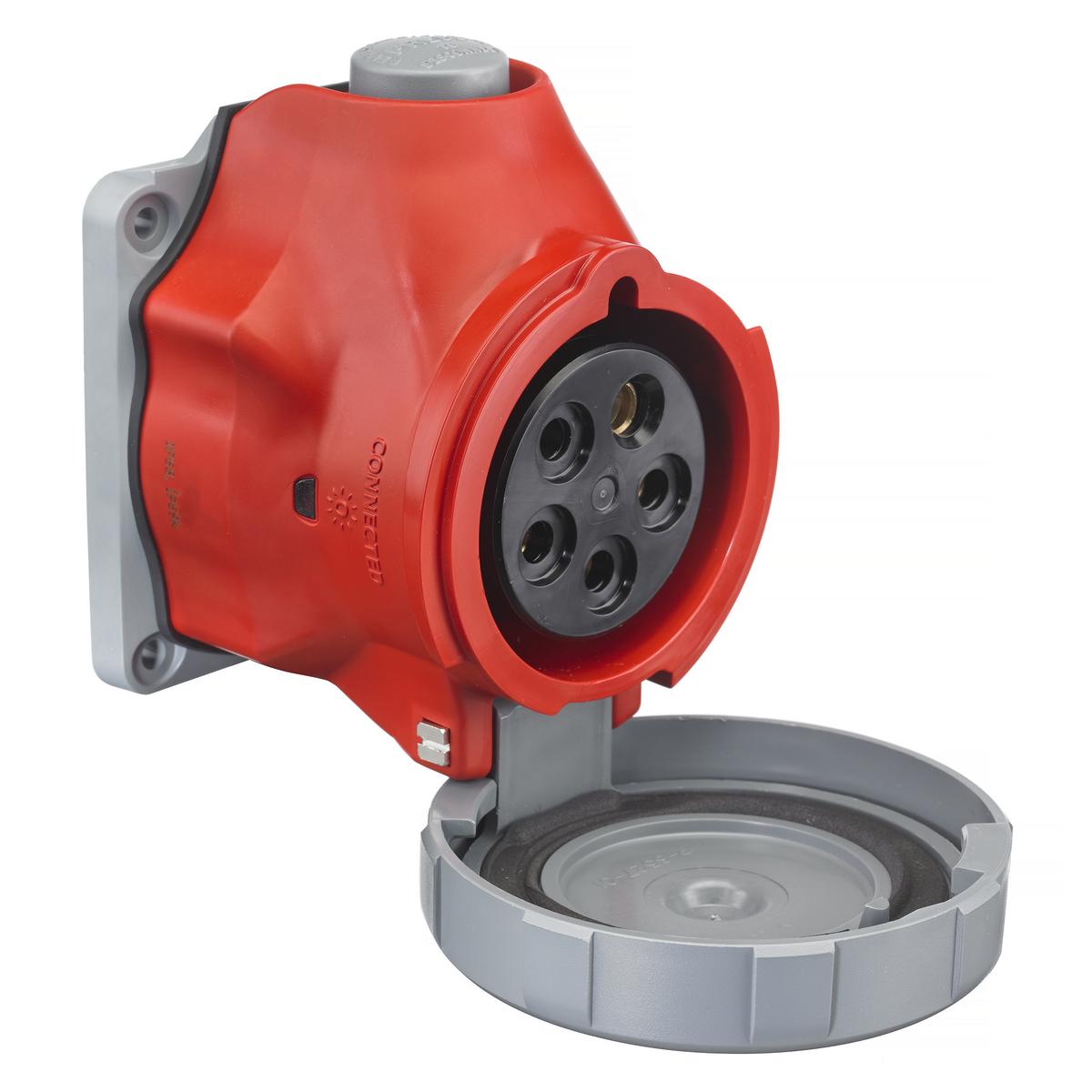

Hubbell HBLS560R7W Pin Sleeve Receptacle
Part Number # HBLS560R7W
SKU # 2368378
Hubbell HBLS560R7W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBLS560R7W |
| SKU #: | 2368378 |
| Amperage Rating: | 30, 60 A |
| Dimensions: | 4.52 in L x 5.09 in W |
| Enclosure: | IP69K |
| Horsepower: | 30, 30 hp |
| NEMA Rating: | 4X, NEMA 4X |
| Number of Poles: | 2, 4 |
| Number of Wires: | 3, 5 |
| Temperature Rating (Degrees F): | -40 to 70 deg C, -40 to 75 |
| Terminal Type: | Screw |
| Type: | Coverless Grounding Switch Rated Standard Weatherproof, Coverless Grounding Switch Rated Standard Weatherproof Screw Mount |
| Country of origin: | PR, US |
| Material: | Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585478715 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell HBLS560R7W Pin Sleeve Receptacle
Brand: Hubbell
Part Number: HBLS560R7W
Wiring Device-Kellems Advantage HBL Pin Sleeve Receptacle, Coverless Grounding Switch Rated Standard Weatherproof Screw Mount, 277/480 VAC, 60 A, 30 hp, 4 Pole, 5 Wires, 4X NEMA Rating, IP69K Enclosure, -40 to 70 deg C, Screw Terminal, Composite, Red, 4.52 in L x 5.09 in W
Additional Description: HUBW-HBLS560R7W PS,IEC,SW RECP,4P5W,60A 277/480V,4X/IP69
Catalog Description: Heavy Duty IEC Pin and Sleeve, Receptacle, Switched, 60A 277/480V AC, 4-Pole 5-Wire Grounding, NEMA4X/IP69K
HBLS560R7W Item Features
- Approved as a diconnecting means for motor circuits and branch circuits
- Impact and corrosion-resistant PBT that is color coded by voltage
- Unswitched ground and power indicating LED lights
- https://youtu.be/1UAS5Og-mD4
HBLS560R7W Standards
RoHS Compliant|UL Listed|cULus 50E/2682|CSA C22.2 No. 0.17|IEC 60309-1/2SKU #2368378Part Number #HBLS560R7WUNSPSC39121406UPC00783585478715
