Brand: Hubbell

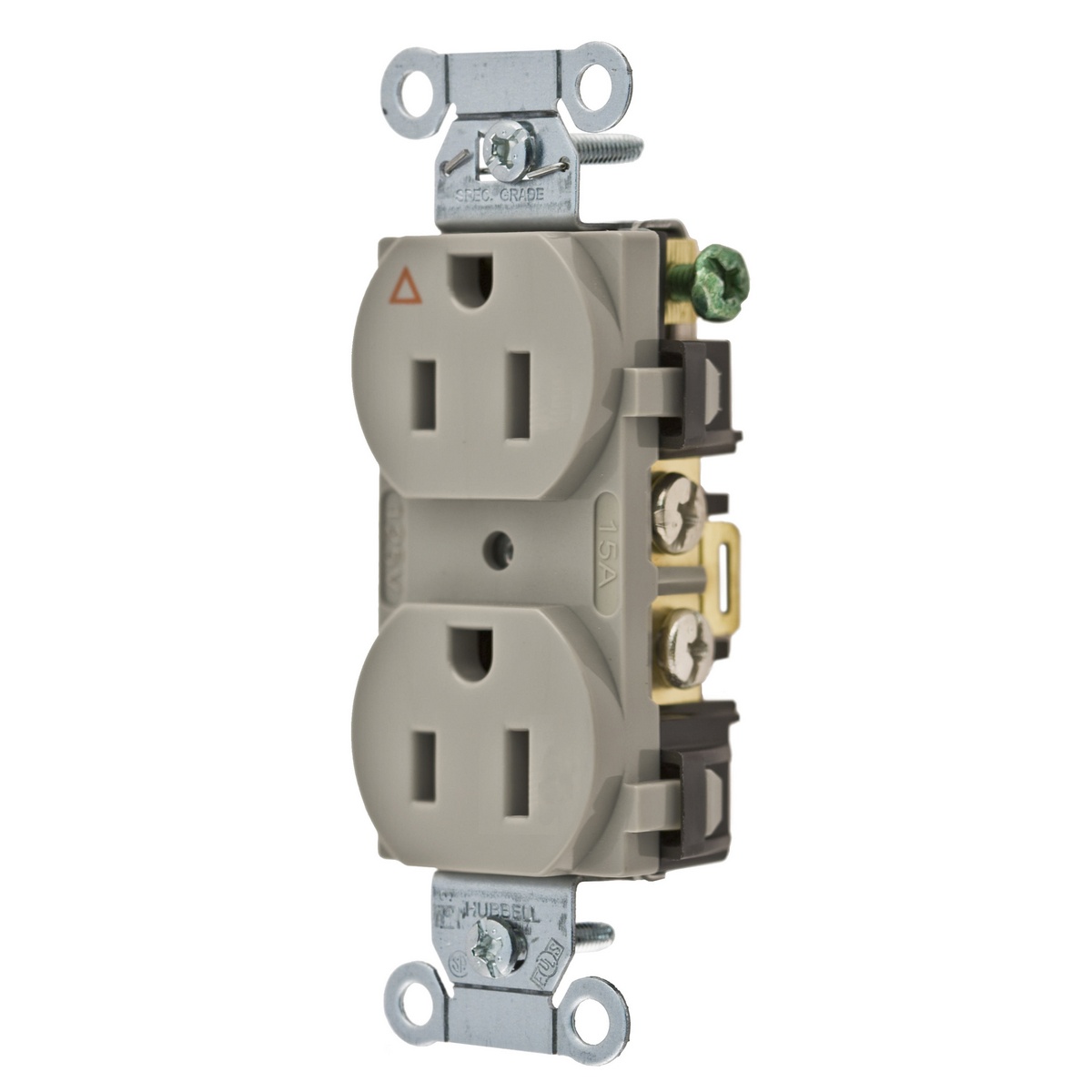

Hubbell IG15CRGRY Straight Blade Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell IG15CRGRY Straight Blade Receptacle
Brand: Hubbell
Hubbell IG15CRGRY Straight Blade Receptacle
Part #:IG15CRGRY
SKU #: 2327302
$8.29/EA
Key Features
Part #:IG15CRGRY
SKU #: 2327302
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 1.32 x 0.83 x 3.28 in, 3.28 in H x 1.05 in W x 0.8 in D
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
$8.29/EA
- Dimensionally stable, reinforced thermoplastic polyester provides impact strength in addition to heat and flame resistance
- Square head, 10-thread bronze center rivet wont rotate, reduces stripping and resists corrosion
- Triple wipe contacts
- Aesthetic style Line decorator design
- Impact resistant nylon smooth face
- Wraparound, locked on brass mounting strap provides additional support strength for receptacle assembly
- Automatic self-grounding clip assures ground continuity between mounting strap and metal wall box
- IG triangle on the face of the receptacle clearly indicates isolated ground device
- Amperage and voltage clearly indicated
- Back and side wiring capability provides easy installation with stranded or solid wire
- Green grounding screw connected directly to the grounding contacts
- Insulation barrier construction is first patented by Hubbell isolates ground contacts from the mounting strap
Specifications
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 1.32 x 0.83 x 3.28 in, 3.28 in H x 1.05 in W x 0.8 in D
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back and Side Wire/Screw, Back/Side Wired Screw
Type: 1-Phase Corrosion-Resistant Duplex Isolated Ground Standard Traditional Screw Mount, Corrosion-Resistant Duplex Isolated Ground Standard Traditional
Voltage Rating: 125, 125 VAC
Color: Gray
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585147598
Item FeaturesIndoor Dry Environment
Item Features
Item FeaturesRoHS Compliant|C22.2 No. 42|Federal Specification W-C-596|UL 498 File No. E2186|NEMA WD1/ WD5|CSA Certified
