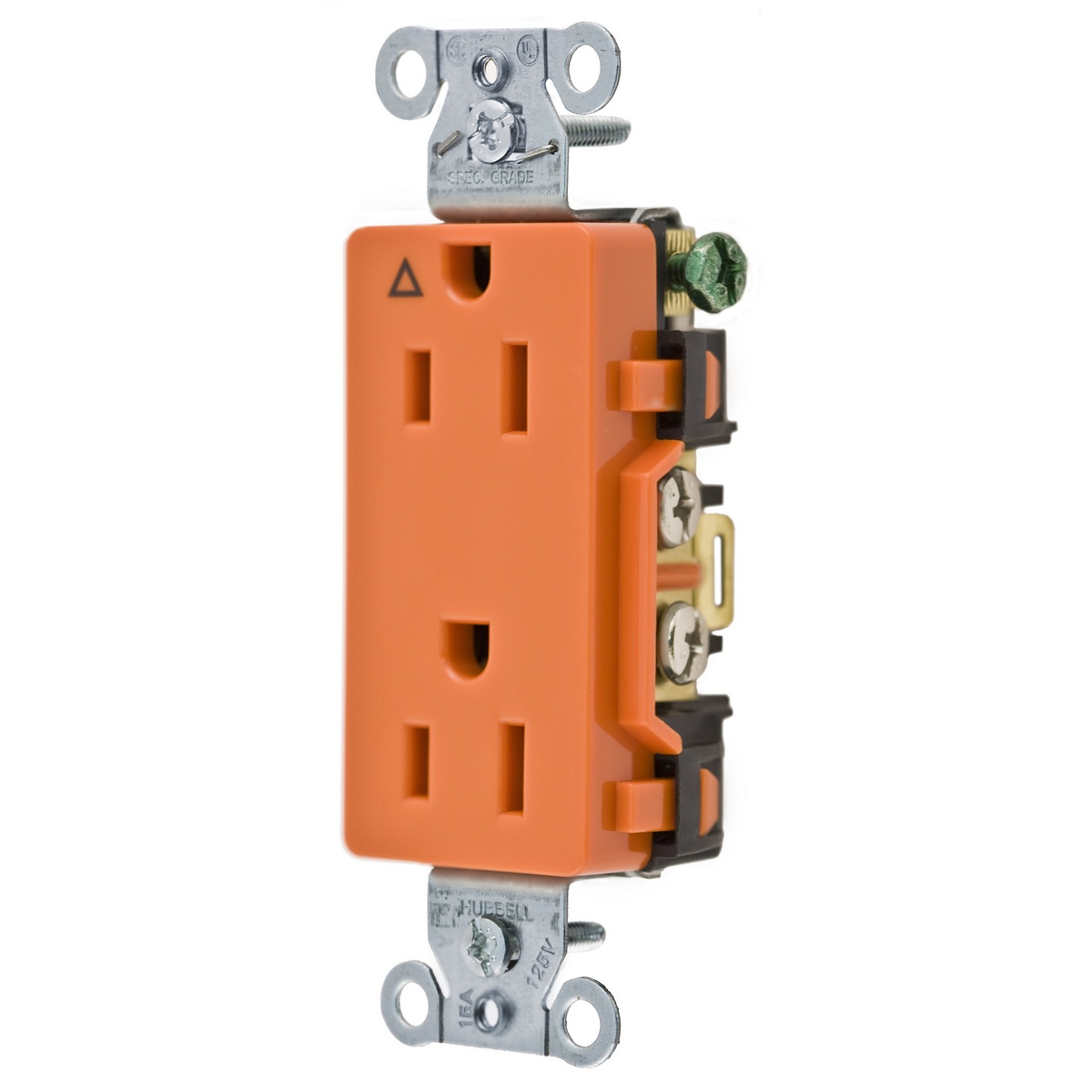

Hubbell IG15DR Straight Blade Receptacle

2343390 MFG #: IG15DR
$8.14 / EA
Usually Ships within 5-8 Days
  • Amperage Rating: 15
  • Dimensions: 3.281 in H x 1.295 in W x 1.067 in D
  • Horsepower: 1/2
  • NEMA Rating: NEMA 5-15R
  • Number of Poles: 2
  • Number of Wires: 3
  • Temperature Rating (Degrees F): -40 to 75
  • Terminal Type: Back/Side Wired Screw
  • Type: 1-Phase Decorator Duplex Grounding Standard
  • Voltage Rating: 125
  • Color: Orange
  • Material: Composite/Thermoplastic

Hubbell IG15DR Straight Blade Receptacle

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Decorator Duplex Grounding Standard, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Orange, 3.281 in H x 1.295 in W x 1.067 in D Dimensions

Additional Description: HUBW-IG15DR COMM STYLE LINE S&B WIRED 15A IG DUP OR

Catalog Description: Straight Blade Devices, Receptacles, Decorator Duplex, Commercial Grade, Corrosion Resistant, Smooth Face, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Back and Side Wired, Orange.

  • Specifications
  • Withstands 2000 VAC dielectric voltage
  • 0.062 in nickel plated steel wire clamp
  • Plated steel terminal screws
  • 0.04 in galvanized steel mounting strap
  • Stainless steel automatic self-grounding staple
  • Galvanized steel mounting screws
  • Indoor dry environmental conditions unless protected by additional means
  • Certified for current interrupting at full rated current
  • Triangle marking on face indicates isolated ground
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
  • 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
  • Nylon base, 0.03 in brass power contacts
  • Terminals identified in accordance with UL 498 and CSA
  • Brass ground contacts
