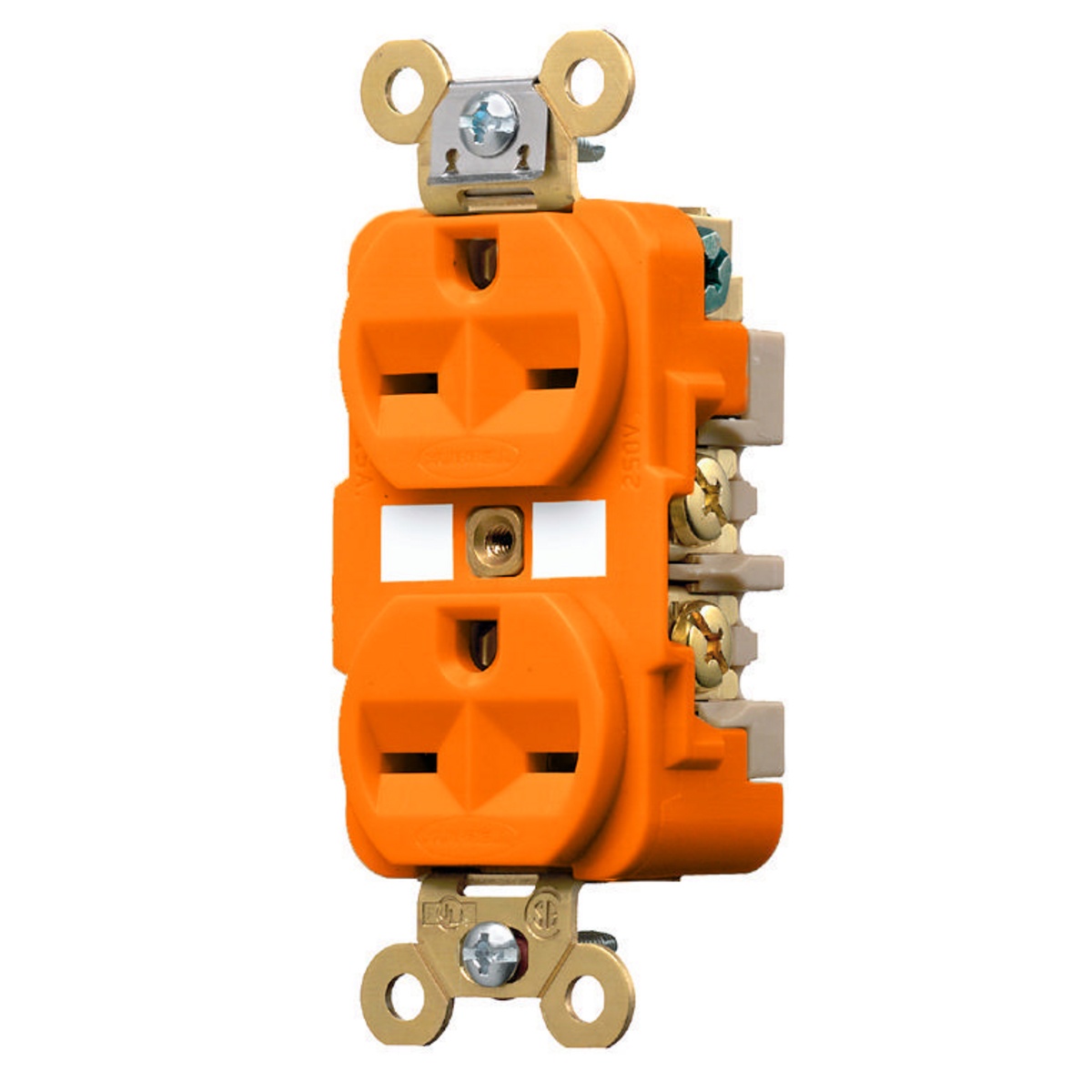

Hubbell IG5662 Straight Blade Receptacle
Image Disclaimers Message
Hubbell IG5662 Straight Blade Receptacle
Hubbell IG5662 Straight Blade Receptacle
Part #:IG5662
SKU #: 2288243
Key Features
Part #:IG5662
SKU #: 2288243
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 in L x 1.33 in W x 1.05 in H, 3.28 x 1.33 x 1.05, 3.28 x 1.33 x 1.05 in
Horsepower: 1-1/2, 1.5, 1.5 hp
NEMA Rating: 6-15R, NEMA 6-15R
Number of Poles: 2
- 1-piece brass ground strap
- Exclusive bypass contact design for greater contact force and reduced heat buildup
- Barbed assembly arms reduce possibility of face/base separation
- Deep face design
- Finder groove face
- Fully insulated design
- Reduces installation time
- Slender compact design
- Triangle marking on face indicates isolated ground
Hubbell IG5662 Straight Blade Receptacle
Wiring Device-Kellems HBL Straight Blade Receptacle, 1-Phase Extra Heavy Duty Duplex Isolated Ground Standard Traditional Screw Mount, 250 VAC, 15 A, 1.5 hp, 2 Pole, 3 Wires, 6-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Nylon, Orange, 3.28 x 1.33 x 1.05 in
Additional Description: HUBW-IG5662 DUP RCPT, IG, 15A 250V, 6-15R, OR
Catalog Description: Straight Blade Duplex Receptacle, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R
