Part Number # IG9308
SKU # 2288244
Image Disclaimers Message
Brand: Hubbell
IG9308

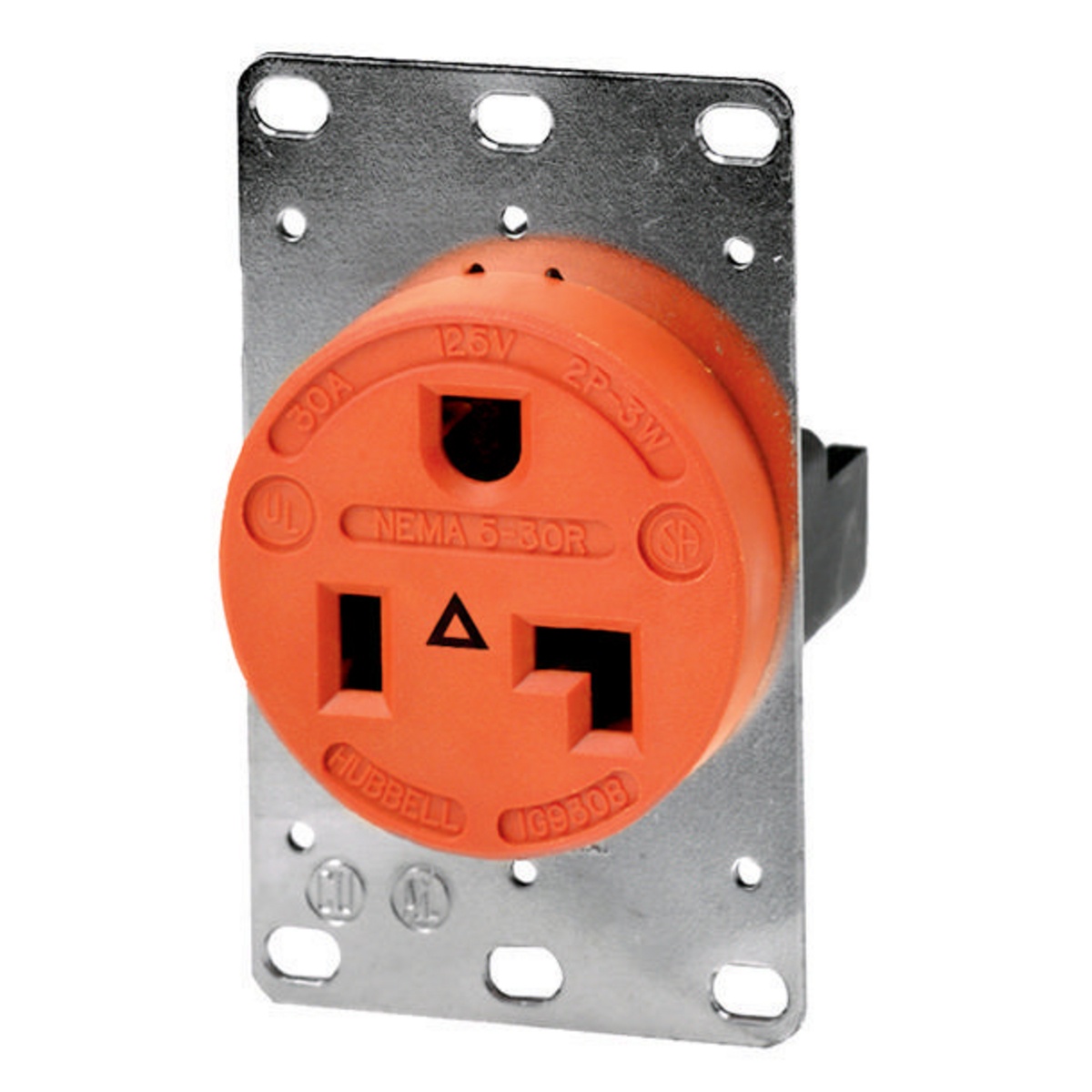

Hubbell IG9308 Straight Blade Receptacle
Part Number # IG9308
SKU # 2288244
$54.93 / Each
Typical price:$83.80 / Each
Hubbell IG9308 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | IG9308 |
| SKU #: | 2288244 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.68 in L x 2.25 in W x 2.23 in H, 3.68 x 2.25 x 2.23 in |
| Enclosure: | IP20 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | 5-30R, NEMA 5-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back and Side Wire/Screw, Back/Side Wired Screw |
| Type: | 1-Phase Extra Heavy Duty Isolated Ground Single Standard, 1-Phase Extra Heavy Duty Isolated Ground Single Standard Screw Mount |
| Color: | Orange |
| Country of origin: | US |
| Material: | Composite/Thermoset, Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585880709 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$54.93 / Each
Typical price:$83.80 / Each
Quantity:
- Hubbell Wiring Device-Kellems HBL Straight Blade Receptacle, 1-Phase Extra Heavy Duty Isolated Ground Single Standard Screw Mount, 125 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, 5-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic/Composite, Orange, 3.68 x 2.25 x 2.23 in
IG9308 Application
Indoor Dry EnvironmentIG9308 Item Features
- Sequenced contacts assure protection
- One piece design power and ground contacts
- https://youtu.be/1DnPJu3QNw0
IG9308 Standards
RoHS Compliant|CSA C22.2 No. 42|UL 498 File No. E2186|Federal Specification W-C-596|NEMA WD1/WD5 WD6|UL94 V-2 Flammability RatingSKU #2288244Part Number #IG9308UNSPSC39121406UPC00783585880709
