Part Number # B7MSN2P
SKU # 2448680
Hubbell B7MSN2P Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | B7MSN2P |
| SKU #: | 2448680 |
| Finish: | Polyester Powder Painted |
| NEMA Rating: | NEMA 3/4/4X |
| Series: | B7 |
| Type: | Compact Pushbutton Style |
| Country of origin: | US |
| Depth: | 7-13/16 in |
| Height: | 13-1/16 in |
| Material: | Copper-Free Aluminum |
| Width: | 8-1/8 in |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121521 |
| UPC: | 00783936009834 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1943.71 / Each
Quantity:

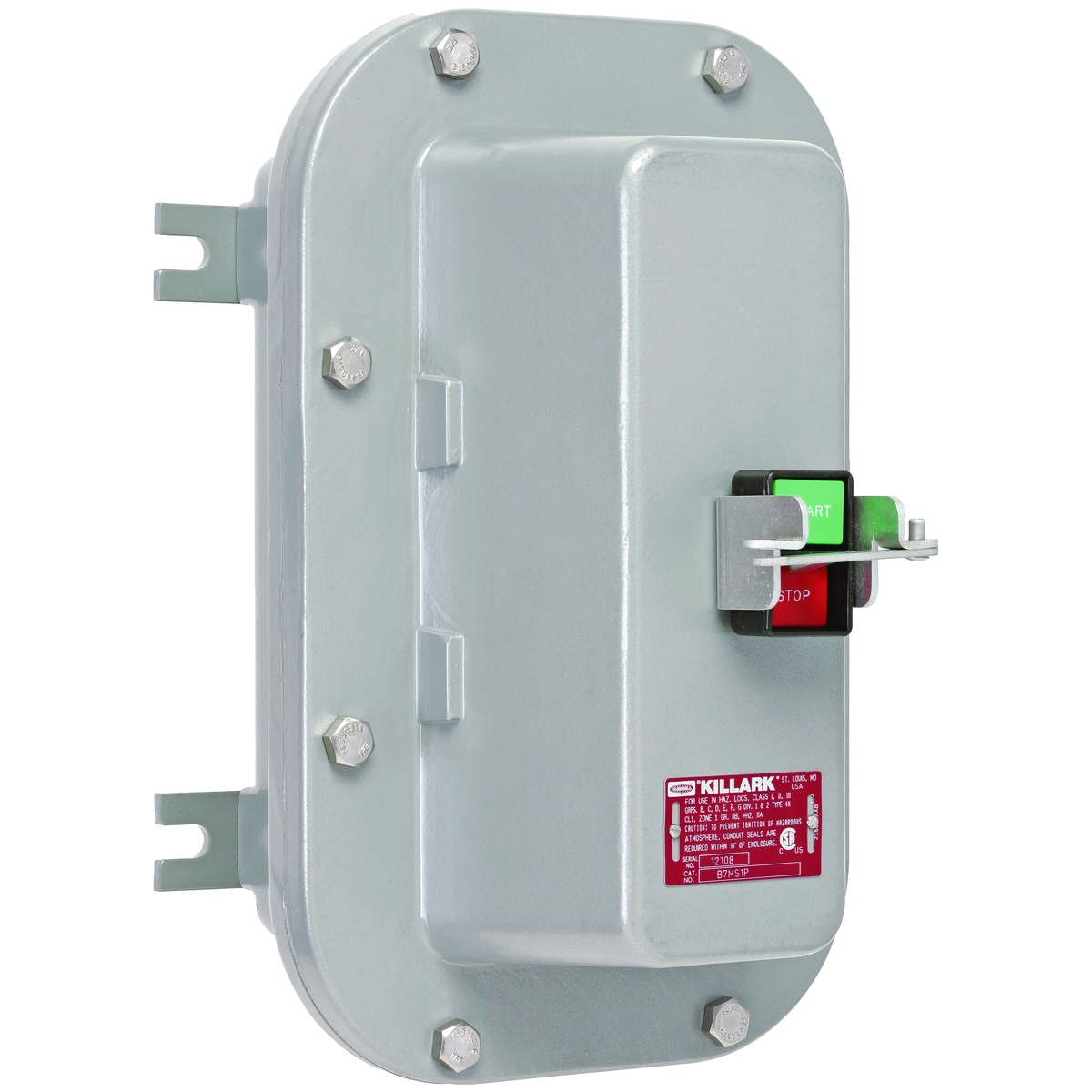

- Killark Manual Starter Enclosure, Compact Pushbutton Style, Series: B7, NEMA 3/4/4X NEMA Rating, 13-1/16 in Height, 8-1/8 in Width, 7-13/16 in Depth, Copper-Free Aluminum, Polyester Powder Painted
B7MSN2P Application
For use in applications requiring manual across-the-line starting and stopping of small single and polyphase AC motors and where overload protection is neededB7MSN2P Item Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes
- Type 4, 4X rated for protection from hose directed water and corrosion
- Pre-drilled to facilitate easy field installation of starters
- Large double green/red start-stop push buttons
- Can be pad locked in "OFF" position
- Provisions for drain and breather
- Bolt on ductile mounting lugs
- Two 1-1/2 in NPT conduit openings provided as standard, with custom openings on request
- Universal design accommodates, as standard, starter manufacturers including Allen-Bradley 609 Series, Cutler-Hammer B100M Series, GE CR106 Series and Square D 2510M Series
- Cover bolts are 316 stainless steel
- Silicone O-ring gasket
- Gray powder polyester painted exterior, electrostatically applied
B7MSN2P Standards
cCSAus Listed|CSA File No. LR11714|UL ListeD, Class I, Division 1 and 2, Groups B, C, D, Class I, Zones 1 and 2, Groups IIB+H2, IIA, Class II, Division 1 and 2, Groups E, F, G, Class III, Division 1 and 2SKU #2448680Part Number #B7MSN2PUNSPSC39121521UPC00783936009834
Image provided may only be a representation of final product and may include optional equipment
