Part Number # B7NFD63A
SKU # 2436888
Hubbell B7NFD63A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | B7NFD63A |
| SKU #: | 2436888 |
| Actuator Type: | Rotary Handle |
| Amperage Rating: | 63 A |
| Enclosure Type: | NEMA 3/4/4X/7BCD/9EFG |
| Frequency Rating: | 60 Hz |
| Horsepower: | 50 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | B7NFD |
| Temperature Rating (Degrees F): | 40 deg C |
| Country of origin: | US |
| Material: | Copper Free Aluminum |
| Mounting type: | Wall |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122205 |
| UPC: | 00783936151663 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3749.67 / Each
Quantity:
Hubbell-Killark B7NFD63A
Brand: Hubbell
Part Number: B7NFD63A
Additional Description: KILL-B7NFD63A (O) DISCONNECT NON FUSE 63A
Catalog Description: B7NFD Series - Aluminum Feed-Thru Compact Non-Fused Disconnect Switch Enclosure with ABB Switch - 63A/3P/600VAC/50HP Max
B7NFD63A Application
Rated for indoor and outdoor applicationsB7NFD63A Item Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes
- Few cover bolts reduces installation and maintenance time
- Gasketed flange with O-ring located inside bolt circule to seal out moisture
- Rotary handle style operating mechanism with lockout provision as standard
- Removable ductile mounting lugs adjust to irregular mounting surfaces
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content)
- Cover bolts 316 Stainless Steel
- Silicone O-ring gasket
- Gray powder polyester painted exterior, electrostatically applied
B7NFD63A Standards
Class I, Divisions 1 and 2, Groups B, C, D Class I, Zones 1 and 2, Groups IIB H2, IIA Class II, Divisions 1 and 2, Groups E, F, G Class III, Divisions 1 and 2SKU #2436888Part Number #B7NFD63AUNSPSC39122205UPC00783936151663

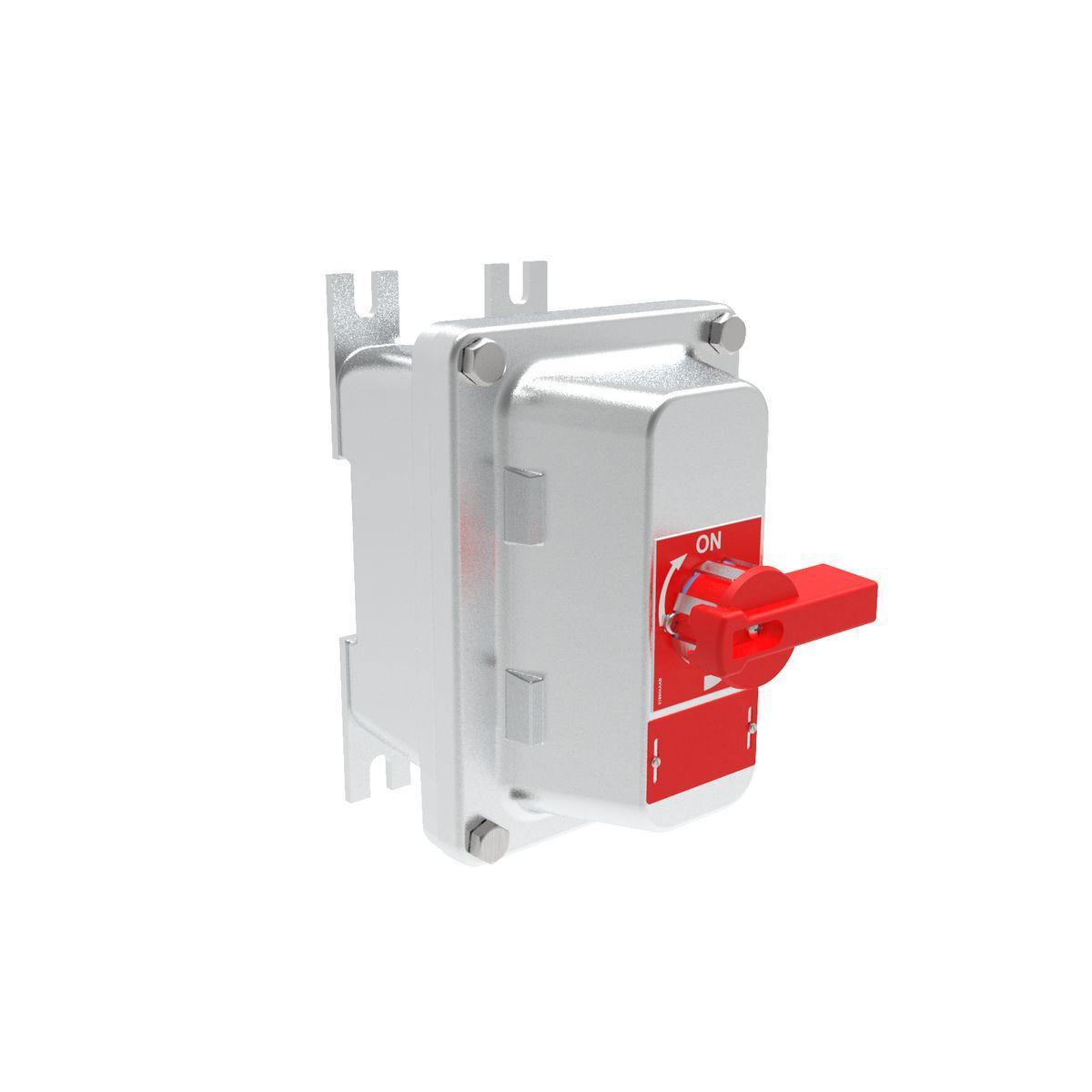

Image provided may only be a representation of final product and may include optional equipment
