Part Number # B7NFD80A
SKU # 2435371
Hubbell B7NFD80A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | B7NFD80A |
| SKU #: | 2435371 |
| Amperage Rating: | 80 A |
| Enclosure Type: | NEMA 3/4/4X/7BCD/9EFG |
| Series: | B7NFD |
| UNSPSC: | 39122205 |
| UPC: | 00783936151700 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5175.64 / Each
Quantity:

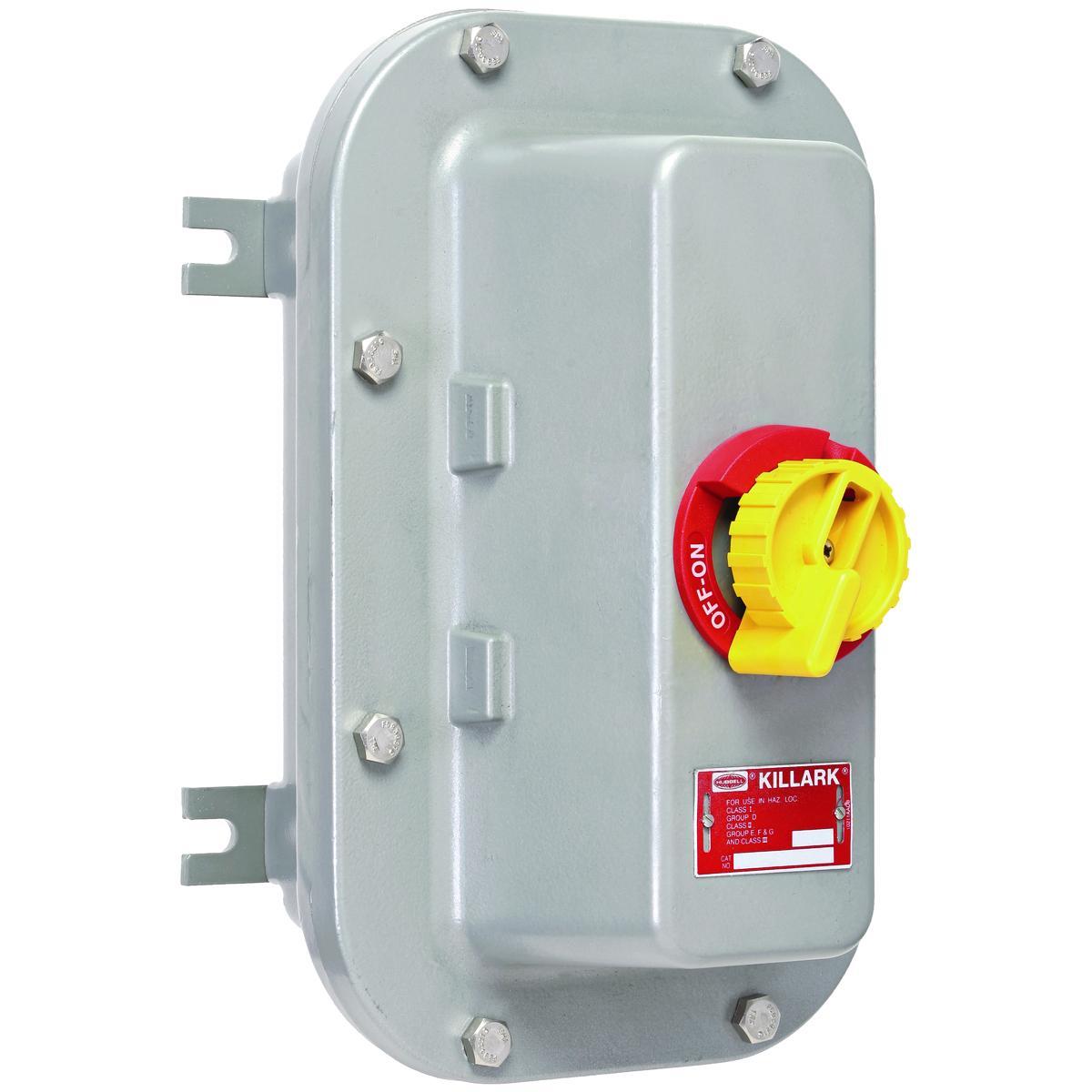

- Killark, B7NFD80A, Non-Fused Disconnect Switch, Series: B7NFD, 600 VAC, 80 A, 50 hp, 60 Hz Frequency, 3 Pole, 4 Wires, Rotary Handle Actuator, NEMA 3/4/4X/7BCD/9EFG Enclosure, Wall Mounting, 40 deg C, Copper Free Aluminum, Gray
B7NFD80A Application
Rated for indoor and outdoor applicationsB7NFD80A Item Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes
- Few cover bolts reduces installation and maintenance time
- Gasketed flange with O-ring located inside bolt circule to seal out moisture
- Rotary handle style operating mechanism with lockout provision as standard
- Removable ductile mounting lugs adjust to irregular mounting surfaces
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content)
- Cover bolts 316 Stainless Steel
- Silicone O-ring gasket
- Gray powder polyester painted exterior, electrostatically applied
B7NFD80A Standards
Class I, Divisions 1 and 2, Groups B, C, D Class I, Zones 1 and 2, Groups IIB H2, IIA Class II, Divisions 1 and 2, Groups E, F, G Class III, Divisions 1 and 2SKU #2435371Part Number #B7NFD80AUNSPSC39122205UPC00783936151700
Image provided may only be a representation of final product and may include optional equipment
