Part Number # FXCS-2A15
SKU # 2458709
FXCS-2A15
Hubbell-Killark FXCS-2A15
Part Number # FXCS-2A15
SKU # 2458709
Hubbell FXCS-2A15 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | FXCS-2A15 |
| SKU #: | 2458709 |
| Actuator: | Mini Pushbutton/Pilot Light |
| Amperage Rating: | 10 A |
| Contact Configuration: | 1NO-1NC |
| Dimensions: | 6-13/16 in H x 3-11/16 in W x 4-13/32 in D |
| Indicator Type: | LED Pilot Light |
| Legend: | STOP/START |
| NEMA Rating: | NEMA 3/7/9 |
| Number of Operators: | 3 |
| Number of Poles: | 2 |
| Operating Temperature: | -4 to 104 deg F |
| Series: | FXCS |
| Type: | Factory Sealed |
| Wattage: | 3 W |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122216 |
| UPC: | 00783936201122 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell-Killark FXCS-2A15
Brand: Hubbell
Part Number: FXCS-2A15
Killark® SEAL-X™ Control Station Cover Assembly, Factory Sealed, Series: FXCS, 120/600 VAC, 10 A, 3 W Wattage, 2 Pole, 3 Operators, 1NC-1NO Contact Configuration, Momentary Contact Mode, Legend: START/STOP, Mini Pushbutton/Pilot Light Actuator, LED Pilot Light Indicator, NEMA 3/7/9 NEMA Rating, -4 to 104 deg F Operating, Aluminum, 6-13/16 in H x 3-11/16 in W x 4-13/32 in D Dimensions
Additional Description: KILL-FXCS-2A15 BOX CVR 2PB 1PL 3/4"" DEAD RL
Catalog Description: FXCS Momentary Contact, 2 Mini Push Button- 1 Pilot Light- Red Lens- Cover and Dead-End Box, 3/4" Hub
FXCS-2A15 Application
For petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards existFXCS-2A15 Item Features
- Eliminates external sealing requirements
- NEMA 3 weatherproof
- Color coded wiring with more wiring space for easier field installation
- Stainless steel captive screws for cover assembly
- Lockout accessory available must be factory installed
- Ground boss for grounding in the splice box
- Operating shaft in both push buttons and selector switches are stainless steel
FXCS-2A15 Standards
UL Listed|CSA Certified|UL File No. E53360|CSA File No. LR11714|Class I Divisions 1 and 2 Groups C, D|Class I Zones 1 and 2 Groups IIB, IIA|Class II Divisions 1 and 2 Groups E, F, G|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2458709Part Number #FXCS-2A15UNSPSC39122216UPC00783936201122

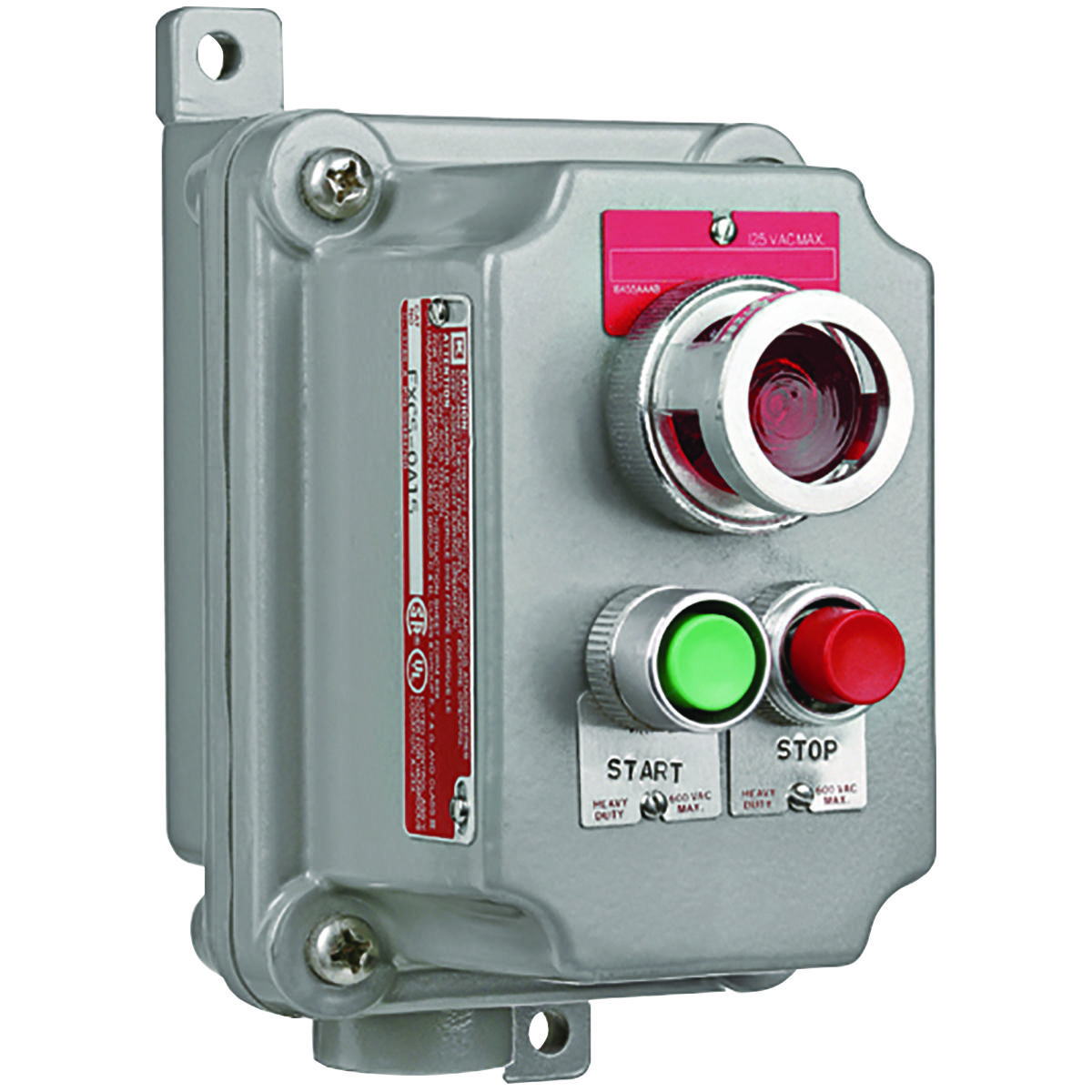

Image provided may only be a representation of final product and may include optional equipment
