Part Number # HKH1ANP2M71EK8
SKU # 2452614
HKH1ANP2M71EK8
Hubbell-Killark HKH1ANP2M71EK8
Part Number # HKH1ANP2M71EK8
SKU # 2452614
$1111.61 / Each
Hubbell HKH1ANP2M71EK8 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HKH1ANP2M71EK8 |
| SKU #: | 2452614 |
| Actuator: | Mushroom Pushbutton |
| Amperage Rating: | 20 A |
| Contact Configuration: | 1NO-1NC |
| Dimensions: | 4.16 in D |
| Indicator Type: | LED Pilot Light |
| Legend: | Emergency Stop |
| Legend Color: | Black |
| NEMA Rating: | NEMA 3/4/4X/12/13 |
| Number of Operators: | 1 |
| Operating Temperature: | -50 to 60 deg C |
| Series: | HKH |
| Type: | Hazardous Location |
| Connection type: | 3/4 in Hub |
| Country of origin: | US |
| Material: | Plastic |
| Mounting type: | Wall |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 0 |
| UPC: | 00783936133065 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1111.61 / Each
Quantity:
Hubbell-Killark HKH1ANP2M71EK8
Brand: Hubbell
Part Number: HKH1ANP2M71EK8
Additional Description: KILL-HKH1ANP2M71EK8 PB ESTOP TWIST MT SGL HKH NM 1A PM 3/4""
Catalog Description: HKH Maintained Contact Push Button E-Stop (Twist Release)- Panel Mount- 3/4" Hub - Non-Metallic 1a
HKH1ANP2M71EK8 Application
For hazardous and corrosive environments due to the presence of flammable gases or vapors, combustible dusts or ignitable fiber or flyings, Installations at petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards exist, Use in conjunction with motor starters or contactors for remote control of motorsHKH1ANP2M71EK8 Item Features
- Size 1 Control Stations available as 1a, 1b, and 1c as standard catalog number offerings for 1, 2 and 3 device openings and will accept 2-M20 entries in either end
- Explosion Protected contact blocks 690 VAC N.O. and N.C. capable of 20 Afor Switching Duty and HP Ratings up to 1HP
- LED Pilot Light modules for 12-250V AC/ DC for UL applications
- Contacts and Pilot lights can be mounted inside enclosure on Din Rail or in cover to the actuator
- Accessories available for Lockout/Tag Out functions made in 316 stainless steel
HKH1ANP2M71EK8 Standards
Class I, Division 2, Groups A, B, C, D Class II, Division 1, Groups E, F, G (Canada Only) Class II, Division 2, Groups E, F, G Class III, Divisions 1 and 2 Zones 1 and 2 Zones 21 and 22SKU #2452614Part Number #HKH1ANP2M71EK8UNSPSC0UPC00783936133065

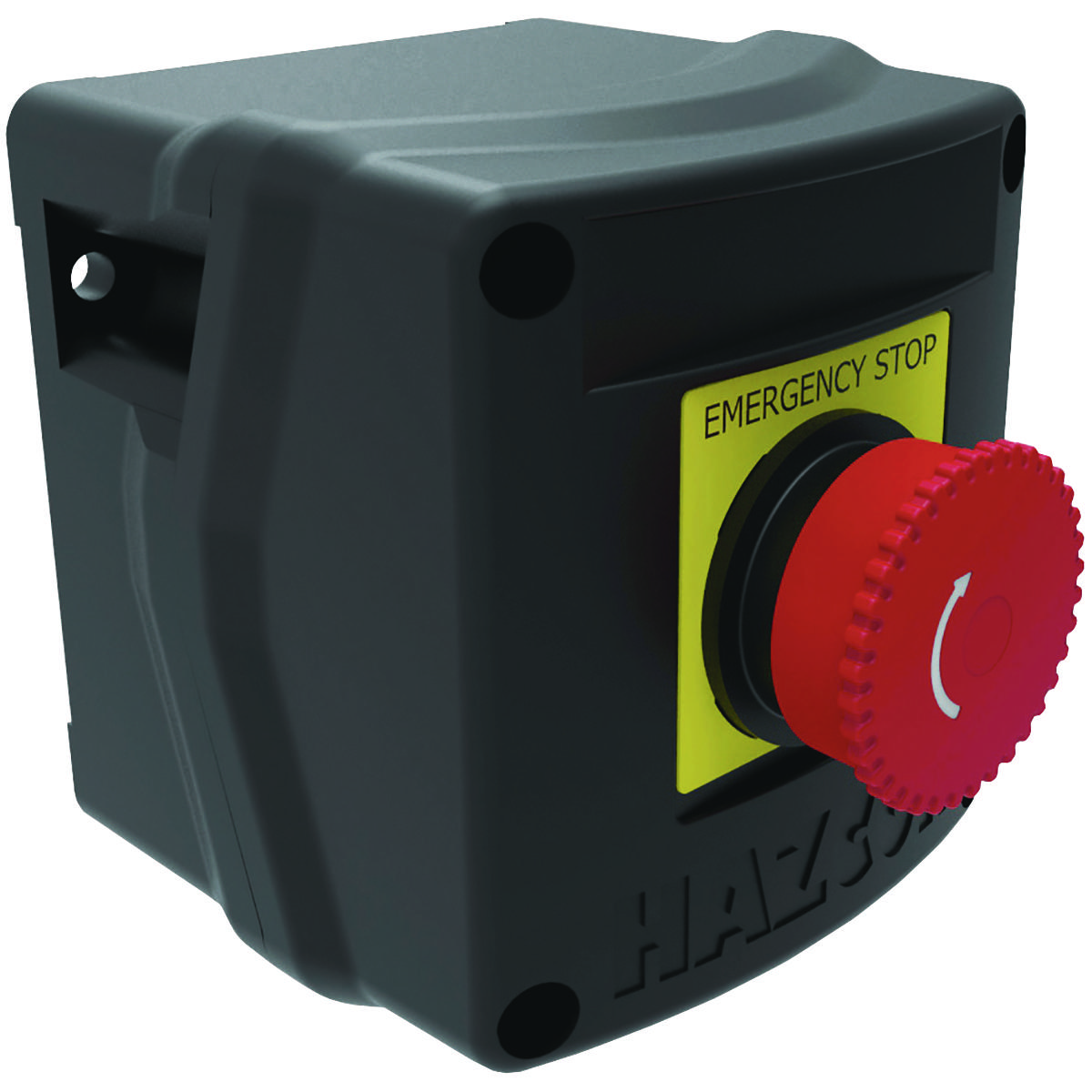

Image provided may only be a representation of final product and may include optional equipment
