Part Number # XCS-5B13-C
SKU # 2452679
XCS-5B13-C
Hubbell-Killark XCS-5B13-C
Part Number # XCS-5B13-C
SKU # 2452679
Hubbell XCS-5B13-C Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | XCS-5B13-C |
| SKU #: | 2452679 |
| Actuator: | Pilot Light/Pushbutton |
| Amperage Rating: | 10 A |
| Contact Configuration: | 1NC |
| Dimensions: | 5-7/8 in H x 3 in W x 3-5/16 in D |
| Indicator Type: | LED Pilot Light |
| Legend: | STOP/START |
| NEMA Rating: | NEMA 7/9 |
| Number of Operators: | 2 |
| Number of Poles: | 1 |
| Operating Temperature: | -4 to 104 deg F |
| Series: | XCS Series |
| Wattage: | 3 W |
| Country of origin: | US |
| Material: | Aluminum |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122216 |
| UPC: | 00783936891576 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell-Killark XCS-5B13-C
Brand: Hubbell
Part Number: XCS-5B13-C
Killark® Control Station Cover Assembly, Series: XCS Series, 120/600 VAC, 10 A, 3 W, 1 Poles, 2 Operators, 1NC, Momentary Contact Mode, START/STOP Legend, Pilot Light/Pushbutton, LED Pilot Light Indicator, NEMA 7/9, -4 to 104 deg F Operating, Aluminum, 5-7/8 in H x 3 in W x 3-5/16 in D
Additional Description: KILL-XCS-5B13-C CLI XCS-0B13C CV W/3/4""F-THRU(
Catalog Description: XCS Series - Aluminum Feed-Thru Momentary Contact Single Push Button and Pilot Light Control Station - Red Button With "Stop" Nameplate - Hub Size 3/4 Inch - 1NC Contact Rating
XCS-5B13-C Application
For petroleum refineries, chemical and petrochemical plants and other processing or storage facilities where similar hazards existXCS-5B13-C Item Features
- Ground flange joint between bolted cover and box provide required flame path
- Push button, selector switches and pilot light operator bodies are copper-free aluminum
XCS-5B13-C Standards
UL Listed|CSA Certified|UL File No. E53360|CSA File No. LR11714|Class I Divisions 1 and 2 Groups C, D|Class I Zones 1 and 2 Groups IIB, IIA|Class II Divisions 1 and 2 Groups E, F, G|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2452679Part Number #XCS-5B13-CUNSPSC39122216UPC00783936891576

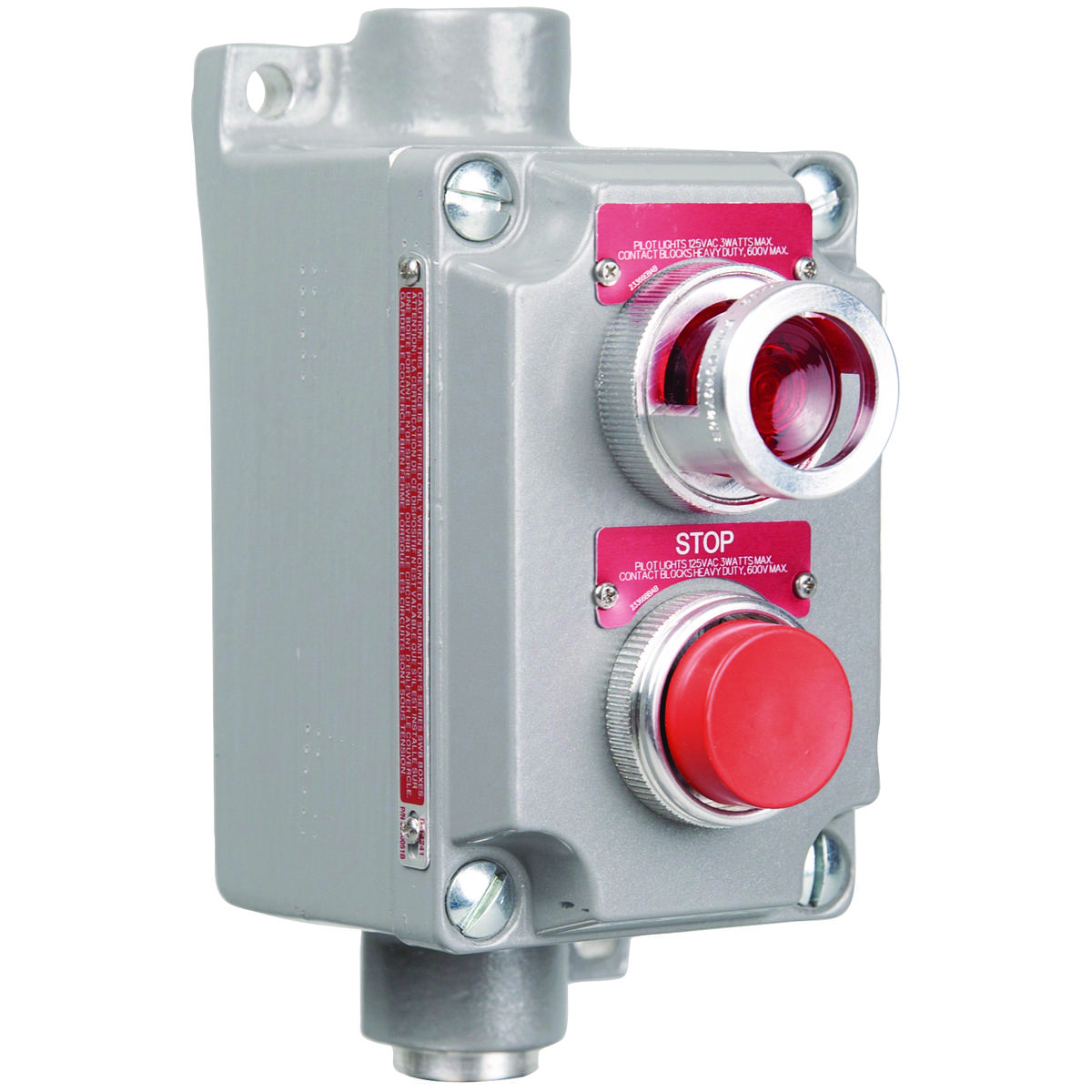

Image provided may only be a representation of final product and may include optional equipment
