Part Number # XEDS-100A
SKU # 2300891
Image Disclaimers Message
XEDS-100A

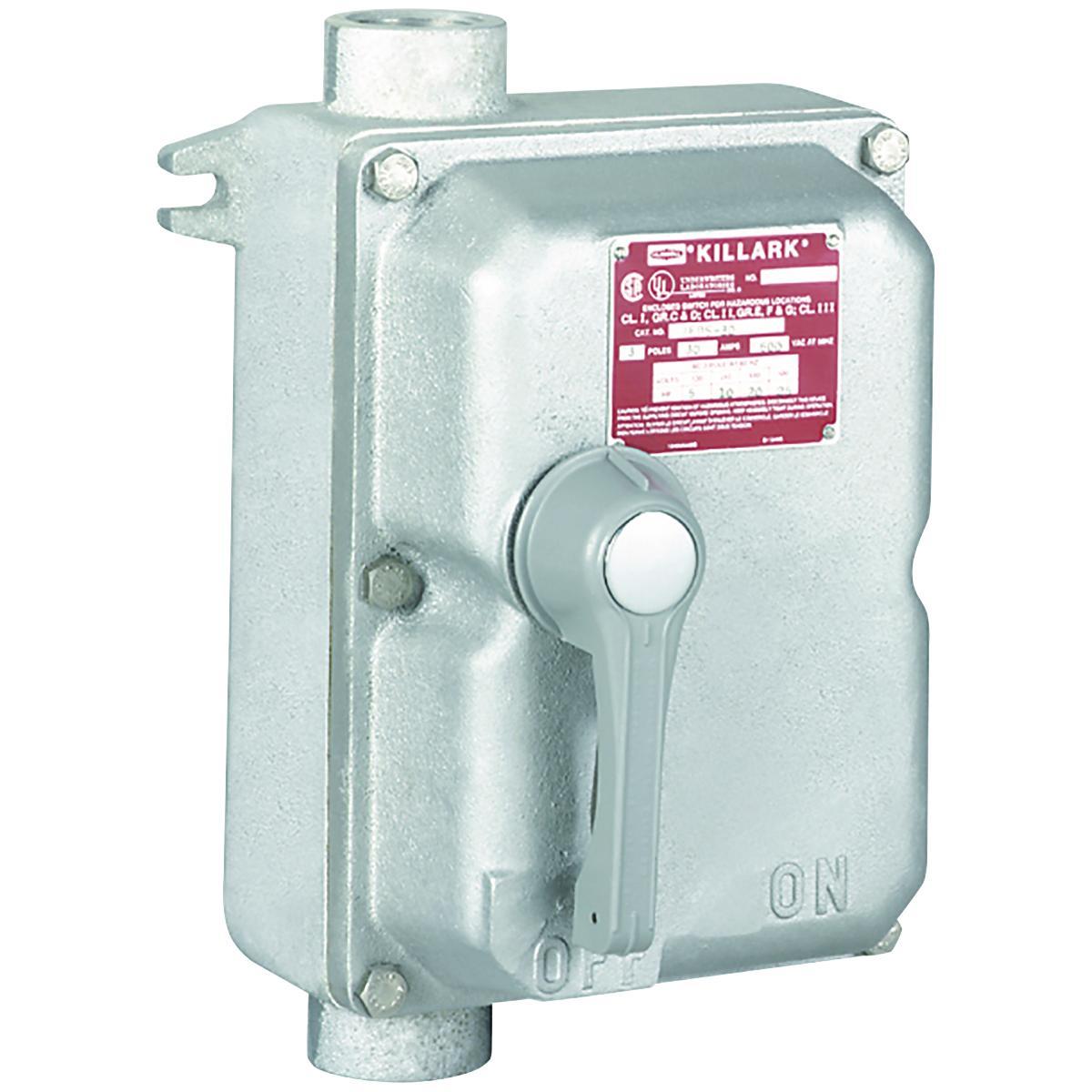

Hubbell-Killark XEDS-100A
Part Number # XEDS-100A
SKU # 2300891
$8038.24 / Each
Hubbell XEDS-100A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | XEDS-100A |
| SKU #: | 2300891 |
| Actuator Type: | External Handle |
| Amperage Rating: | 100 A |
| Dimensions: | 16 in H x 9-1/8 in W x 7 in D |
| Enclosure Type: | NEMA 3R/4/9EFG |
| Frequency Rating: | 60 Hz |
| Horsepower: | 30 hp, 75 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Phase: | 3 |
| Series: | XEDS Series |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Non-Fused |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Mounting type: | Wall |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121501 |
| UPC: | 00783936898094 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8038.24 / Each
Quantity:
- Killark Disconnect Switch, Non-Fused, Series: XEDS Series, 600 V AC/250 V DC, 100 A, 30 hp, 75 hp, 3 ph, 60 Hz Frequency, 3 Pole, 4 Wires, External Handle Actuator, NEMA 3R/4/9EFG Enclosure, Wall Mounting, 40 deg C, 16 in H x 9-1/8 in W x 7 in D Dimensions, Copper-Free Aluminum
XEDS-100A Application
Indoor, Harsh and Hazardous Environments ApplicationsXEDS-100A Item Features
- External handle is vault type with standard provisions for locking in OFF position with up to three padlocks
- Provisions for locking in ON position available as factory modification (add suffix SU40 to catalog number)
- Cover bolts are stainless steel
- Eaton (Cutler Hammer) Type DS Switches
- Two cast conduit hubs, one top and one bottom
XEDS-100A Standards
UL File No. E53290|CSA File No. LR11714|Class II Divisions 1 and 2 Groups E, F, G|Class III Divisions 1 and 2|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2300891Part Number #XEDS-100AUNSPSC39121501UPC00783936898094
