Part Number # XEDS-30A
SKU # 2132210
Hubbell XEDS-30A Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | XEDS-30A |
| SKU #: | 2132210 |
| Dimensions: | 11-7/8 in H x 8-3/4 in W |
| Horsepower: | 10 hp, 20 hp, 25 hp |
| Series: | XEDS |
| UNSPSC: | 39121447 |
| UPC: | 00783936897998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6336.61 / ea
Quantity:
- Killark, XEDS-30A, Disconnect Switch, Non-Fusible, Series: XEDS, 600 V AC/250 V DC, 30 A, 10 hp, 20 hp, 25 hp, 3 ph, 60 Hz Frequency, 3 Pole, 4 Wires, External Handle Actuator, NEMA 3R/4/9EFG Enclosure, Wall Mounting, 40 deg C, 11-7/8 in H x 8-3/4 in W Dimensions, Copper Free Aluminum
XEDS-30A Application
For indoor applicationsXEDS-30A Item Features
- Provisions for locking in ON position available as factory modification (add suffix SU40 to catalog number)
- External handle is vault type with standard provisions for locking in "OFF" position with up to three padlocks
- Two cast conduit hubs, one top and one bottom
- Eaton (Cutler Hammer) type DS switches
- Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%)
- Internal disconnect handle mechanism is a sliding plate mounted to the cover
- Cover bolts are stainless steel
XEDS-30A Standards
UL File No. E53290|CSA File No. LR11714|Class II Divisions 1 and 2 Groups E, F, G|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2132210Part Number #XEDS-30AUNSPSC39121447UPC00783936897998

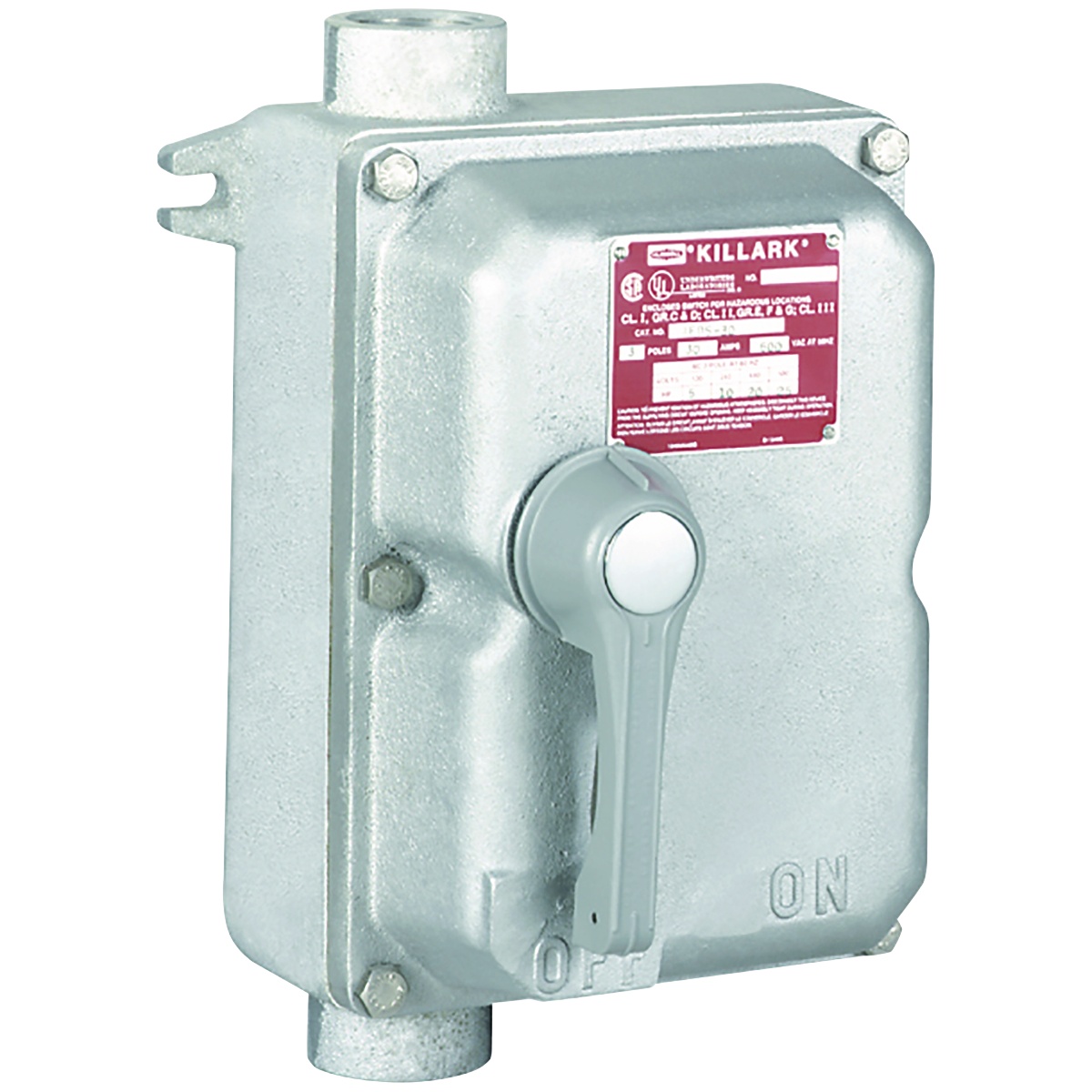

Image provided may only be a representation of final product and may include optional equipment
