Catalog Description: DURALOY 7 SERIES - IRON CONDUIT BODY - LB TYPE - HUB SIZE 1-1/2 INCH -VOLUME 26.0 CUBIC INCHES

" />

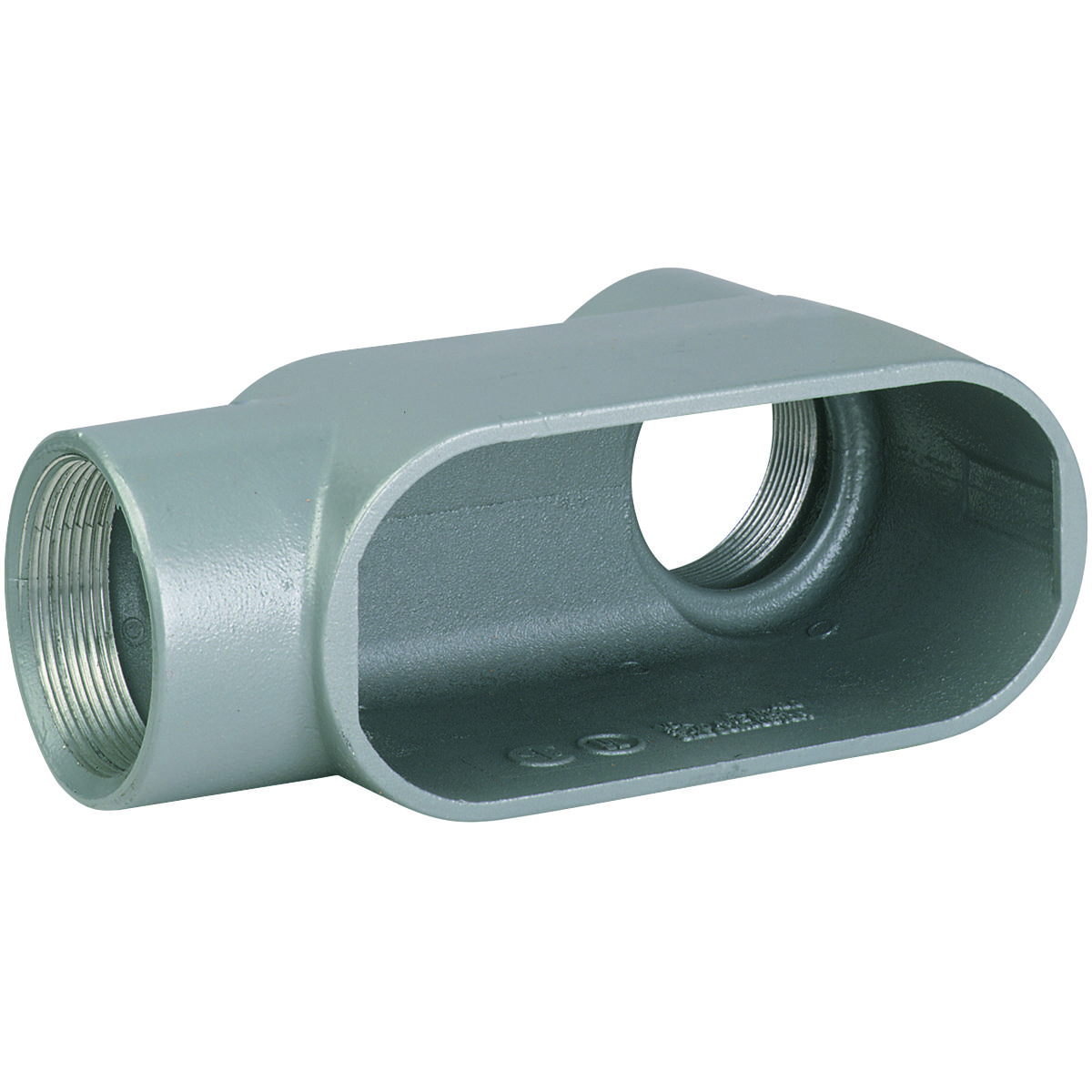

Hubbell LB57 Duraloy 7 Conduit Body

2295596 MFG #: LB57
$74.27 / EA
Usually Ships within 5-8 Days
  • Capacity: 26
  • Dimensions: 7-1/4 in L x 2-1/2 in W x 3-3/4 in H
  • Enclosure: NEMA 3
  • Finish: Tri-Coated
  • Form: 7
  • Hub Size: 1-1/2
  • Type: Type LB
  • Color: Gray
  • Connection type: Threaded
  • Material: Iron

Hubbell LB57 Duraloy 7 Conduit Body

Killark® Duraloy® 7 Conduit Body, Type LB, 1-1/2 in Hub, 2 Hubs, 26 cu-in Capacity, 7 Form, NEMA 3 Enclosure, Thread Connection, Iron, Tri-Coated, Gray, 7-1/4 in L x 2-1/2 in W x 3-3/4 in H Dimensions

Additional Description: KILL-LB57 DURALOY7 1 1/2" LB COND BDY FE

Catalog Description: DURALOY 7 SERIES - IRON CONDUIT BODY - LB TYPE - HUB SIZE 1-1/2 INCH -VOLUME 26.0 CUBIC INCHES

  • Specifications
  • Intermateability UL Listed and CSA certified interchangeability with competitive products
  • Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
  • Suitable for wet locations when used with gaskets
  • Innovative spring clip design for installation ease and repeat usage
  • Smooth integral wire bushings protects cable
  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
  • High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
  • Flat back design for greater wiring capacity and mounting stability
  • Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
  • To provide access to conductors for pulling, splicing and maintenance
