Brand: Hubbell

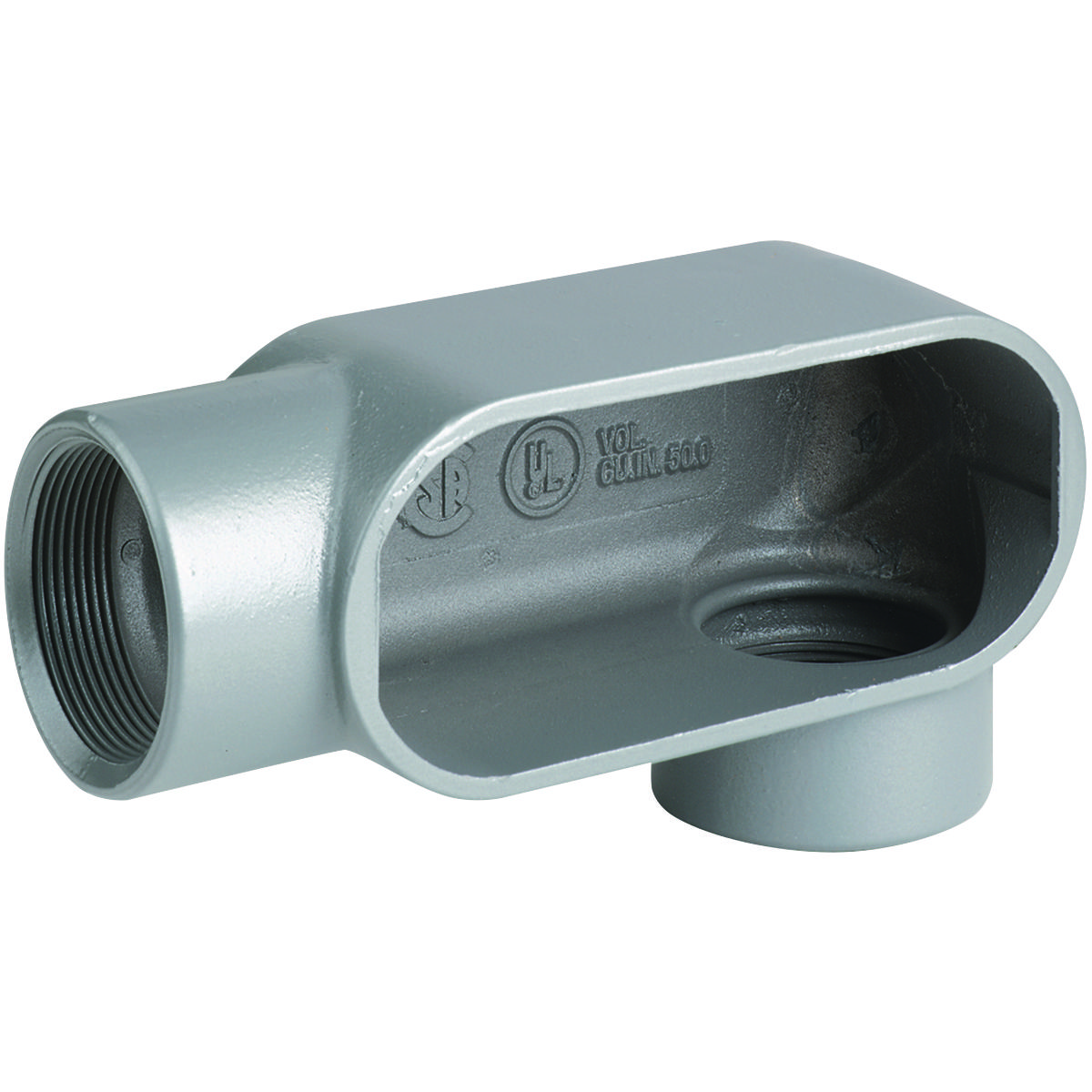

Hubbell LL27 Duraloy 7 Conduit Body
![PDP image](https://do1jvmih5t6vs.cloudfront.net/userfiles/ad/large/killark_ll97.jpg)
Image Disclaimers Message
Brand: Hubbell
Hubbell LL27 Duraloy 7 Conduit Body
Brand: Hubbell
Hubbell LL27 Duraloy 7 Conduit Body
Part #:LL27
SKU #: 2271535
$28.71/EA
Key Features
Part #:LL27
SKU #: 2271535
Brand: Hubbell
Capacity: 7 cu-in
Dimensions: 5-3/8 in L x 1-11/16 in W x 2-5/8 in H
Enclosure: NEMA 3
Finish: Tri-Coated
Form: Form 7
$28.71/EA
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- Innovative spring clip design for installation ease and repeat usage
- Intermateability UL Listed and CSA Certified interchangeability with competitive products
- Smooth integral wire bushings protects cable from damage when wires are pulled through opening
- Flat back design for greater wiring capacity and mounting stability
- Suitable for wet locations when used with gaskets
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- For use with threaded rigid conduit steel or aluminum
- Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- To provide access to conductors for pulling, splicing and maintenance
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
Specifications
Brand: Hubbell
Capacity: 7 cu-in
Dimensions: 5-3/8 in L x 1-11/16 in W x 2-5/8 in H
Enclosure: NEMA 3
Finish: Tri-Coated
Form: Form 7
Hub Size: 3/4 in
Type: Type LL
Color: Gray
Connection type: Thread
Material: Iron
UNSPSC: 39131708
UPC: 00783936011110
Hubbell LL27 Duraloy 7 Conduit Body
Killark Duraloy 7 Conduit Body, Type LL, 3/4 in Hub, 2 Hubs, 7 cu-in Capacity, Form 7 Form, Thread Connection, Iron, Tri-Coated, Gray, 5-3/8 in L x 1-11/16 in W x 2-5/8 in H Dimensions
Additional Description: KILL-LL27 DURALOY7 3/4"" LL COND. BDY FE
Catalog Description: 3/4 LL Hub, Iron Form 7 Conduit Body""
