Brand: Hubbell

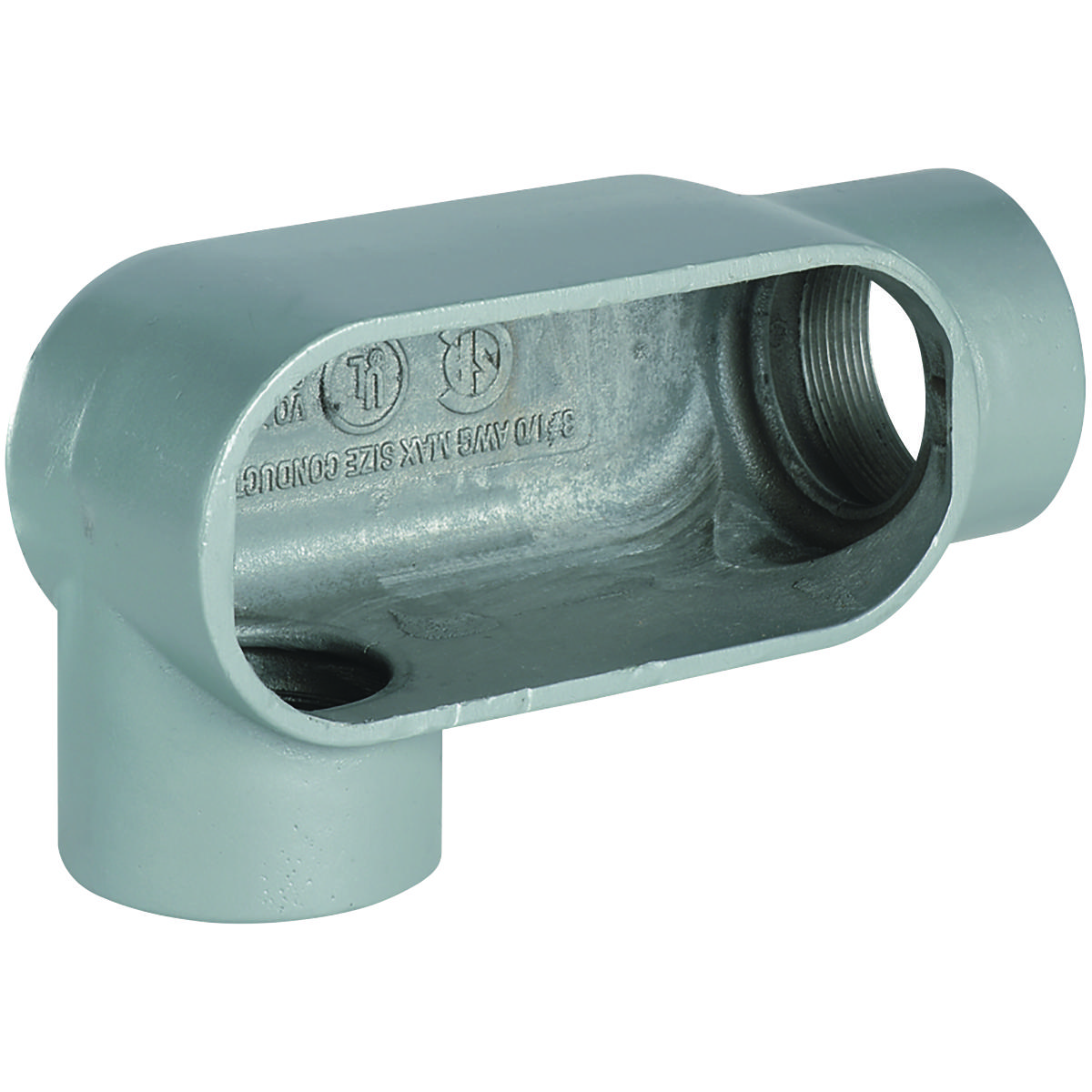

Hubbell LR37 Electrical Conduit Fitting Body
Image Disclaimers Message
Brand: Hubbell
Hubbell LR37 Electrical Conduit Fitting Body
Brand: Hubbell
Hubbell LR37 Electrical Conduit Fitting Body
Part #:LR37
SKU #: 2295580
$43.32/EA
Key Features
Part #:LR37
SKU #: 2295580
Brand: Hubbell
Capacity: 11 cu-in
Dimensions: 6-5/16 in L x 1-7/8 in W x 3-1/16 in H
Enclosure: NEMA 3
Finish: Tri-Coated
Form: Form 7
$43.32/EA
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- Innovative spring clip design for installation ease and repeat usage
- Intermateability UL Listed and CSA Certified interchangeability with competitive products
- Smooth integral wire bushings protects cable from damage when wires are pulled through opening
- Flat back design for greater wiring capacity and mounting stability
- Suitable for wet locations when used with gaskets
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- For use with threaded rigid conduit steel or aluminum
- Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- To provide access to conductors for pulling, splicing and maintenance
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
Specifications
Brand: Hubbell
Capacity: 11 cu-in
Dimensions: 6-5/16 in L x 1-7/8 in W x 3-1/16 in H
Enclosure: NEMA 3
Finish: Tri-Coated
Form: Form 7
Hub Size: 1 in
Type: Type LR
Color: Gray
Connection type: Thread
Country of origin: MX
Material: Iron
Manufacturer Name: Hubbell
UNSPSC: 39131708
UPC: 00783936011226
Hubbell LR37 Electrical Conduit Fitting Body
Killark Duraloy 7 Conduit Body, Type LR, 1 in Hub, 2 Hubs, 11 cu-in Capacity, Form 7 Form, NEMA 3 Enclosure, Thread Connection, Iron, Tri-Coated, Gray, 6-5/16 in L x 1-7/8 in W x 3-1/16 in H Dimensions
Additional Description: KILL-LR37 FORM 7, CNDT BODY, 1 TYPE LR IRON
Catalog Description: 1" LR Hub, Iron Form 7 Conduit Body
Item FeaturesRigid/IMC Conduit
Item Features
Item FeaturesCSA LR11716|Federal Specification W-C-586D/A-A 50563|UL E10514|UL File No. E3397|CSA File No. LR11852|NEC 501.10(b)/502.10/503.10 Class I Div 2
